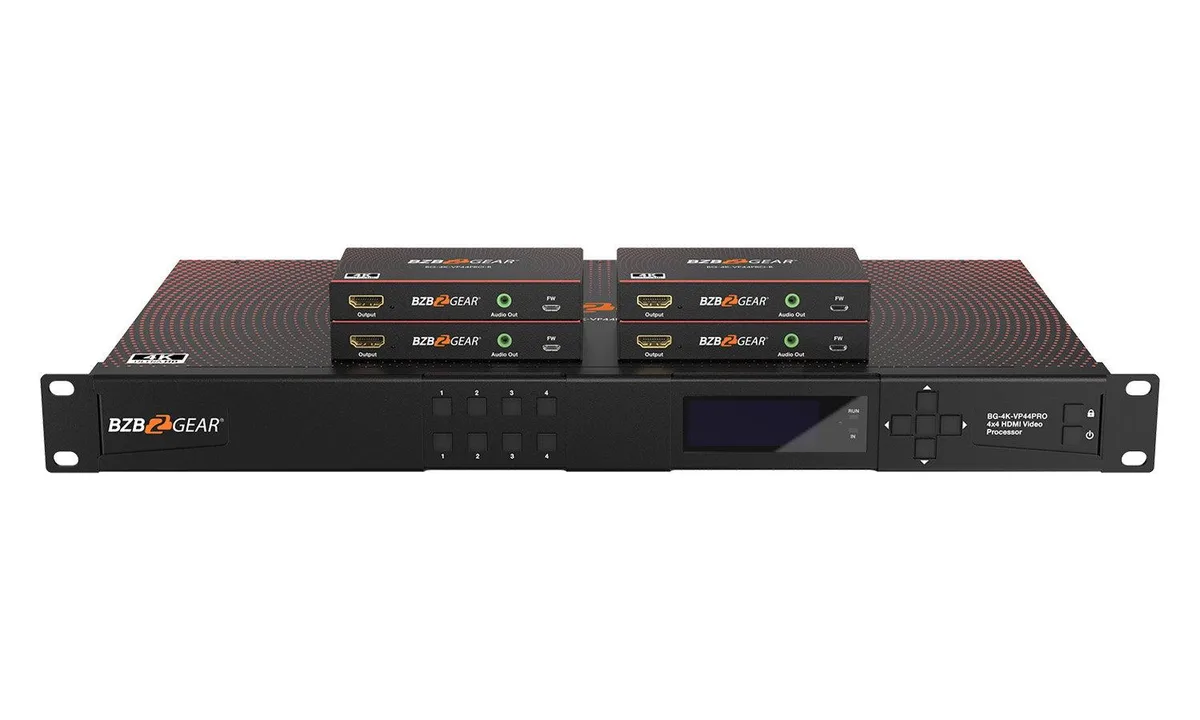

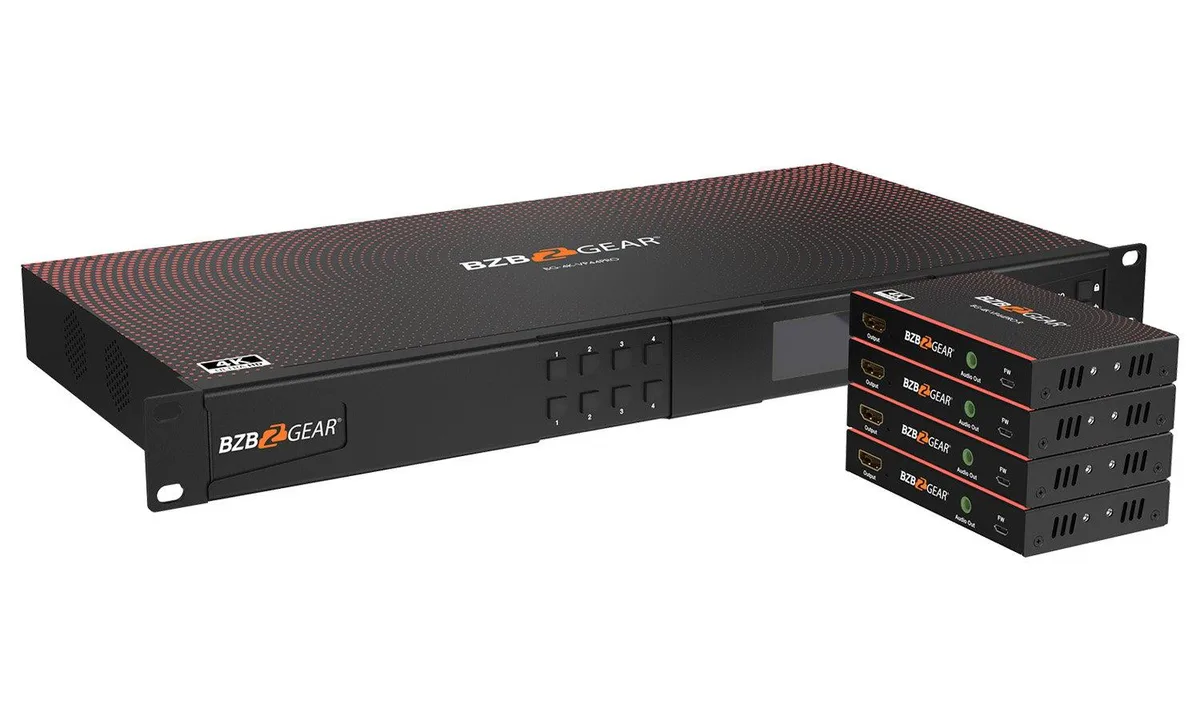

Black rackmount matrix switcher with HDMI and RJ45 ports, four compact receiver units alongside

BZBGEAR

BZBGEAR BG-4K-VP44PRO 4x4 4K HDMI Matrix Switch over Cat5e/6/7 Kit with 4 Receivers

SKU CH-6N9Z-X07RZ

Routes four HDMI sources to four displays over Cat5e/6/7 up to 70 m with 4K 60 Hz 4:4:4, multiview and video-wall modes

  • Type4x4 seamless switching
  • Matrix4x4
  • AudioLPCM 2.0
  • Input Connector4x HDMI Type A, 19-pin, female
  • Output Connector4x RJ45 female and 4x HDMI Type A, 19-pin, female
  • Maximum Resolutions4K@60Hz,YUV4:4:4 8bit, 4K@30Hz/1080P/1080i/720P
  • Extend HDMI 2.0 signals up to 70 m (229 ft) over Cat5e/6/7 cable
  • Independent audio embedding and extraction for flexible sound routing
  • Power over Cable supplies receivers through the same Cat cable
  • Multi-view mode shows four sources simultaneously on one display
  • Video wall processor supports 2×2 layouts with seven built-in modes

4x4 HDMI 2.0 Matrix Kit

The BZBGEAR BG-4K-VP44PRO is a 4x4 seamless matrix switcher that routes four HDMI sources to four displays over Cat5e/6/7 cable. It includes four receivers and supports 4K@60Hz 4:4:4 8-bit video with 18Gbps bandwidth. Audio matrixing allows independent routing of embedded LPCM 2.0 signals. Power over Cable supplies the receivers through the same link.

Installers needing long runs and multi-view layouts

This kit suits integrators who must extend 4K HDMI 2.0 signals up to 70m (229ft) and want built-in 2x2 video wall or multi-view modes. Buyers who require more than four inputs or four output zones should look at a larger matrix. Systems needing audio formats beyond LPCM 2.0 or HDCP versions above 2.2 are not supported by this unit.

18Gbps bandwidth and 4K@60Hz 4:4:4 limit

The single specification that decides fit is the 18Gbps bandwidth ceiling, which caps video at 4K@60Hz 4:4:4 8-bit and 4K@30Hz for deeper colour. If the installation demands higher refresh rates at 4K or greater colour depth, this matrix will not pass the signal.

Highlights

  • Extend HDMI 2.0 signals up to 70 m (229 ft) over Cat5e/6/7 cable
  • Independent audio embedding and extraction for flexible sound routing
  • Power over Cable supplies receivers through the same Cat cable
  • Multi-view mode shows four sources simultaneously on one display
  • Video wall processor supports 2×2 layouts with seven built-in modes

Specifications

Type4x4 seamless switching
Matrix4x4
AudioLPCM 2.0
Input Connector4x HDMI Type A, 19-pin, female
Output Connector4x RJ45 female and 4x HDMI Type A, 19-pin, female
Maximum Resolutions4K@60Hz,YUV4:4:4 8bit, 4K@30Hz/1080P/1080i/720P
Bandwidth18Gbps

Questions about this item

Will the 18Gbps bandwidth and HDCP 2.2 support let me keep using my older 1080p sources and displays alongside new 4K@60Hz gear?

Yes. The matrix handles 4K@60Hz 4:4:4 8-bit, 4K@30Hz, 1080p, 1080i and 720p simultaneously, and HDCP 2.2 is backward-compatible with earlier HDCP versions on the same 4x4 HDMI and RJ45 ports.

How can I verify the 70m Cat5e/6/7 extension and seamless switching are working after I connect everything?

Power the unit, confirm the front-panel LEDs show link and HDCP status for each of the four RJ45 outputs, then switch sources — video should change instantly without black frames, and the receiver HDMI ports should output a stable 4K@60Hz or 1080p image at the far end.

The kit includes four receivers — do I still need to buy Cat5e/6/7 cables and any extra power adapters for them?

The four receivers are powered over the same Cat5e/6/7 cables via PoC, so no separate power supplies are required for them; you only need to supply four Cat5e/6/7 cables (up to 70m each) and four HDMI cables for the receiver outputs.
