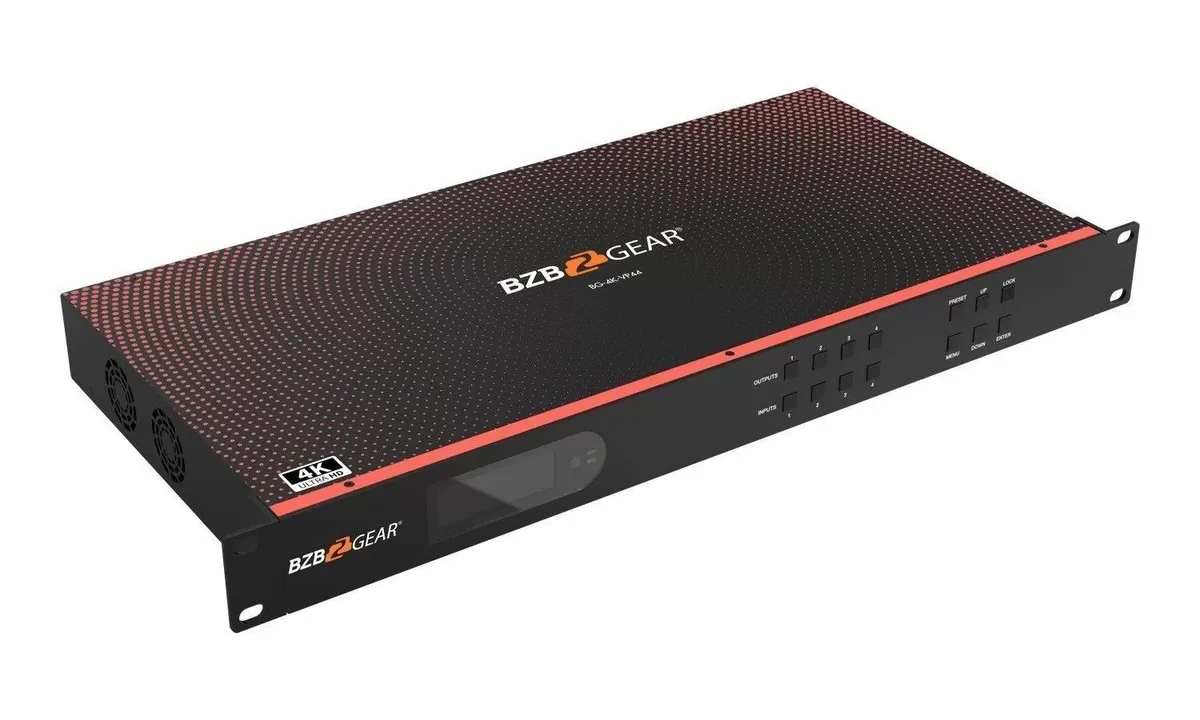

Black metal rack unit with front panel buttons and four HDMI ports on each side

BZBGEAR

BZBGEAR BG-4K-VP44 4x4 4K@60Hz HDMI Matrix Switcher

SKU CH-NDMC-663NG

A 4x4 HDMI matrix routes four sources to four displays at 4K@60Hz with video-wall, multi-view and 18Gbps bandwidth

  • Type4x4 seamless switching
  • Matrix4x4
  • AudioHDMI digital audio DTS-5.1/Dolby-5.1
  • Input Connector4xHDMI
  • Output Connector4xHDMI
  • Maximum Resolutions4K@60Hz, YUV4:4:4 8 bit, 4K@30Hz/1080P/1080i/720P
  • Routes any of 4 HDMI sources to 4 displays independently
  • Build video walls in 7 layout modes per monitor
  • Show 4 sources simultaneously with multi-view split modes
  • 4K 60 Hz 4:4:4 and 18 Gbps bandwidth for full colour detail
  • Control via front panel, IR, RS-232 or IP with included software

4x4 HDMI Matrix Switcher

The BG-4K-VP44 routes four HDMI sources to four HDMI displays with independent switching. It supports 4K at 60 Hz 4:4:4 and HDCP 2.2 for protected content. The unit also functions as a video wall processor with up to seven layout modes and a multi-viewer showing four pictures on one screen. It suits installers and AV integrators who need flexible signal distribution in conference rooms, control rooms or digital signage.

Check HDMI version and control needs

Verify that each source and display can operate at 4K 60 Hz 4:4:4 within the 18 Gbps bandwidth limit. Confirm whether you will use front-panel buttons, the IR remote, RS-232 or IP control for daily operation. Ensure the included IR receiver can be placed for line-of-sight if the switcher is mounted out of view. Plan for EDID management if sources require specific handshake data.

Fits rack or shelf installations

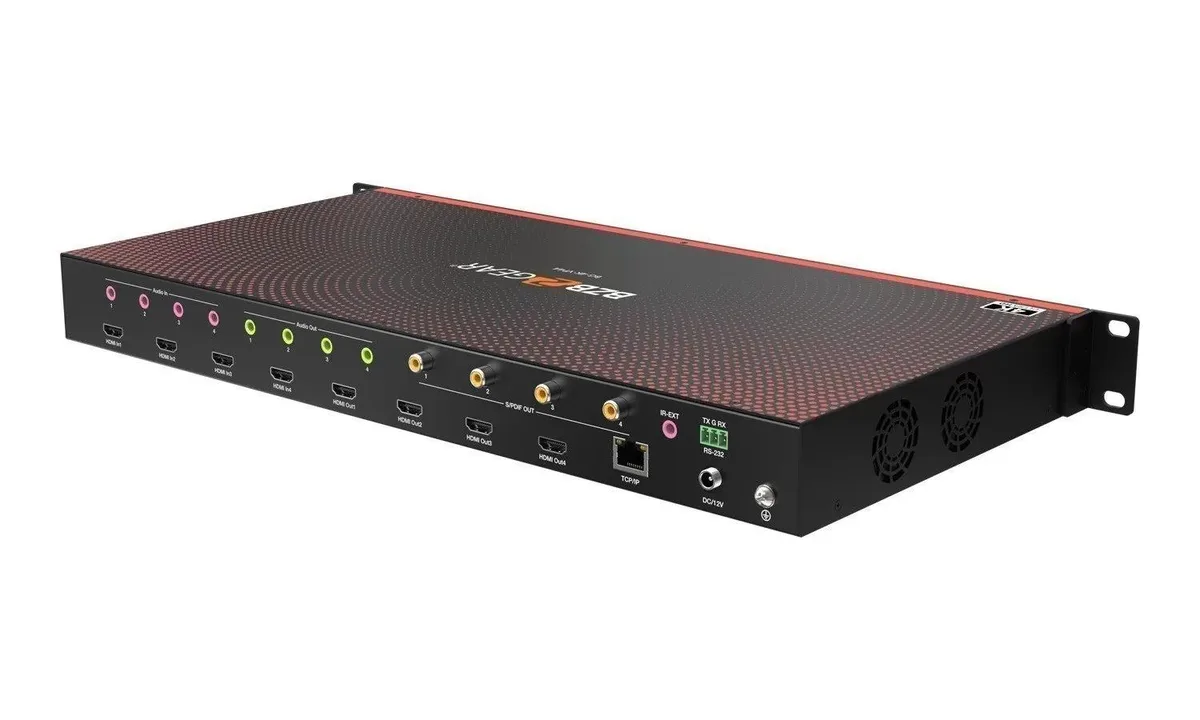

The switcher accepts four HDMI inputs and delivers four HDMI outputs, freeing you from manual cable swapping. Analog audio extraction lets you send sound to a separate audio system while video continues to the displays. RS-232 and TCP/IP interfaces integrate with automation systems such as Crestron or Extron. The compact chassis sits on a shelf or in a standard rack with optional ears, keeping cabling tidy and centralised.

Highlights

  • Routes any of 4 HDMI sources to 4 displays independently
  • Build video walls in 7 layout modes per monitor
  • Show 4 sources simultaneously with multi-view split modes
  • 4K 60 Hz 4:4:4 and 18 Gbps bandwidth for full colour detail
  • Control via front panel, IR, RS-232 or IP with included software

Specifications

Type4x4 seamless switching
Matrix4x4
AudioHDMI digital audio DTS-5.1/Dolby-5.1
Input Connector4xHDMI
Output Connector4xHDMI
Maximum Resolutions4K@60Hz, YUV4:4:4 8 bit, 4K@30Hz/1080P/1080i/720P
Bandwidth18Gbps

Questions about this item

What cables and accessories are included, and do I need to buy HDMI cables separately?

The unit comes with an IR remote control and an IR receiver for hidden installations. Four HDMI cables for the inputs and four for the outputs must be purchased separately.

Should I choose this 4x4 matrix or a smaller switcher for my four sources and two displays?

This model provides four HDMI inputs and four HDMI outputs with independent routing. If you only need two outputs, a 4x2 switcher would be sufficient, but the 4x4 adds video wall and multi-view modes across all four displays.

What does the 18 Gbps bandwidth mean for 4K 60 Hz 4:4:4 content on my displays?

The 18 Gbps bandwidth supports full 4K at 60 Hz with 4:4:4 chroma subsampling at 8-bit colour depth. It also handles 4K 30 Hz, 1080p, 1080i and 720p signals without compression.
