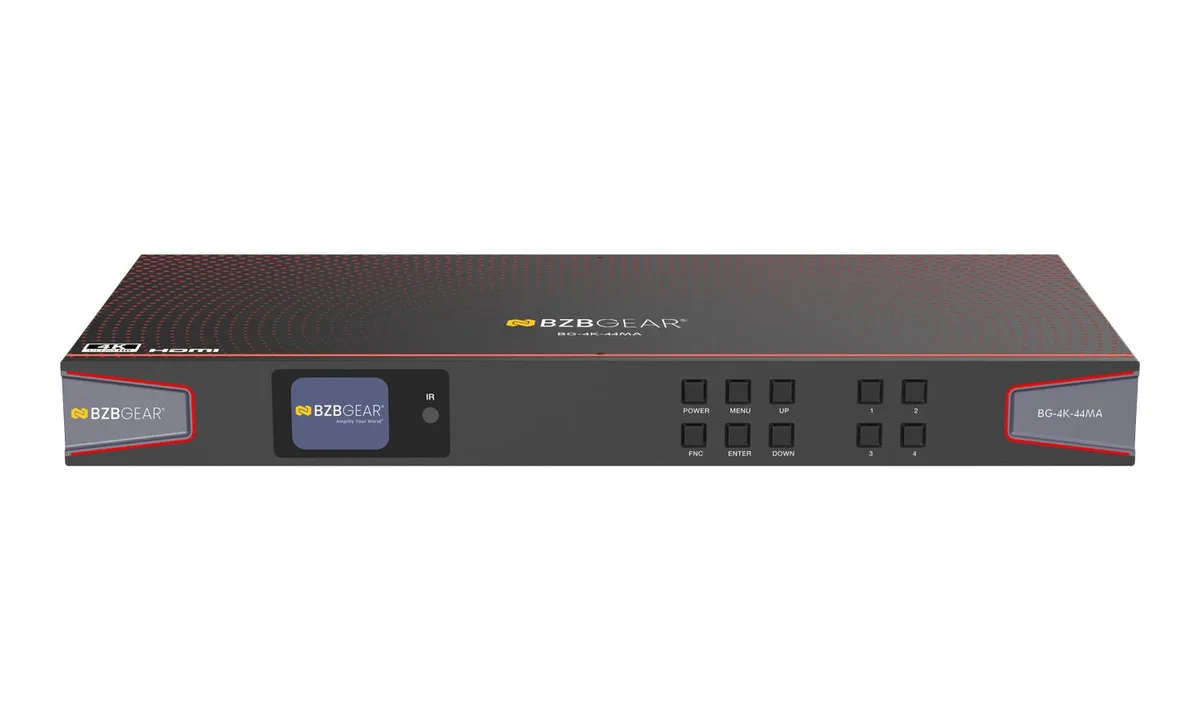

Black rectangular matrix switcher with front panel buttons and multiple HDMI ports

BZBGEAR

BZBGEAR 4x4 4K HDMI 2.0 Matrix Switcher Audio De-embedding

SKU CH-GAXK-2D16F

A 4×4 HDMI 2.0 matrix routes four 4K60 4:4:4 HDR sources to four displays with independent audio de-embedding and auto-downscaling to 1080p

  • TypeHDMI Switchers
  • MatrixYes
  • Dimensions18×8×2 in
  • Weight5 lb
  • Package Contents1x BG-4K-44MA 1x 24V/3.75A Locking Power Adapter 1x AC Power
  • 4K60 4:4:4 HDR video with 18Gbps bandwidth
  • Independent audio routing to four zones via Phoenix connectors
  • Auto downscaling on every output for 1080p displays
  • Five control methods: front panel, IR, RS-232, TCP/IP Web GUI
  • HDCP 2.2 compliant across all four inputs and outputs

4×4 HDMI 2.0 Matrix Switcher

The BG-4K-44MA routes four HDMI 2.0 sources to four displays with full 4K60 4:4:4 and HDR pass-through. HDCP 2.2 compliance protects premium content across all ports. Independent audio de-embedding sends digital S/PDIF or balanced audio to separate zones. Front-panel buttons, IR remote, RS-232 and TCP/IP web GUI give installers flexible control options.

Replaces single-output splitters or basic switchers

A single-output splitter forces every display to show the same source; this matrix lets each screen pick any input independently. Auto-downscaling on every output allows legacy 1080p displays to stay in the system without extra converters. The jump is worth it when a venue needs simultaneous, different content on multiple screens with centralised audio routing.

Verify source and display capabilities before

Confirm each source outputs HDMI 2.0 at 18 Gbps and that target displays accept 4K60 4:4:4 or 1080p. Check that cable runs stay within HDMI 2.0 distance limits for the chosen resolution. Ensure the 24 V locking power supply and included IR receiver cable reach the intended mounting location. RS-232 and TCP/IP integration require an available serial port or network connection.

Highlights

  • 4K60 4:4:4 HDR video with 18Gbps bandwidth
  • Independent audio routing to four zones via Phoenix connectors
  • Auto downscaling on every output for 1080p displays
  • Five control methods: front panel, IR, RS-232, TCP/IP Web GUI
  • HDCP 2.2 compliant across all four inputs and outputs

Specifications

TypeHDMI Switchers
MatrixYes
Dimensions18×8×2 in
Weight5 lb
Package Contents1x BG-4K-44MA
1x 24V/3.75A Locking Power Adapter
1x AC Power Cord (1.5m)
1x IR Remote
1x 12V IR Wideband Receiver Cable (1.5m)
1x RS-232 Serial Cable (1.5m, male to female head)
4x 5-pin 3.81mm Phoenix Connectors
4x Machine Screws (KM3*4)
2x Mounting Ears
1x User Manual

Questions about this item

What rack space does the 18×8×2 in chassis require?

The unit measures 18 inches wide, 8 inches deep and 2 inches high, so it occupies a single 2U shelf or rack tray.

Which cable is used for the RS-232 link and what common mistake should be avoided?

Use the supplied 1.5 m male-to-female serial cable; the frequent error is plugging it into a USB port instead of a true RS-232 port.

When should the 24 V 3.75 A locking power adapter be replaced?

Replace the adapter if the locking barrel becomes loose, the unit loses power intermittently, or the output voltage drifts below 24 V under load.
