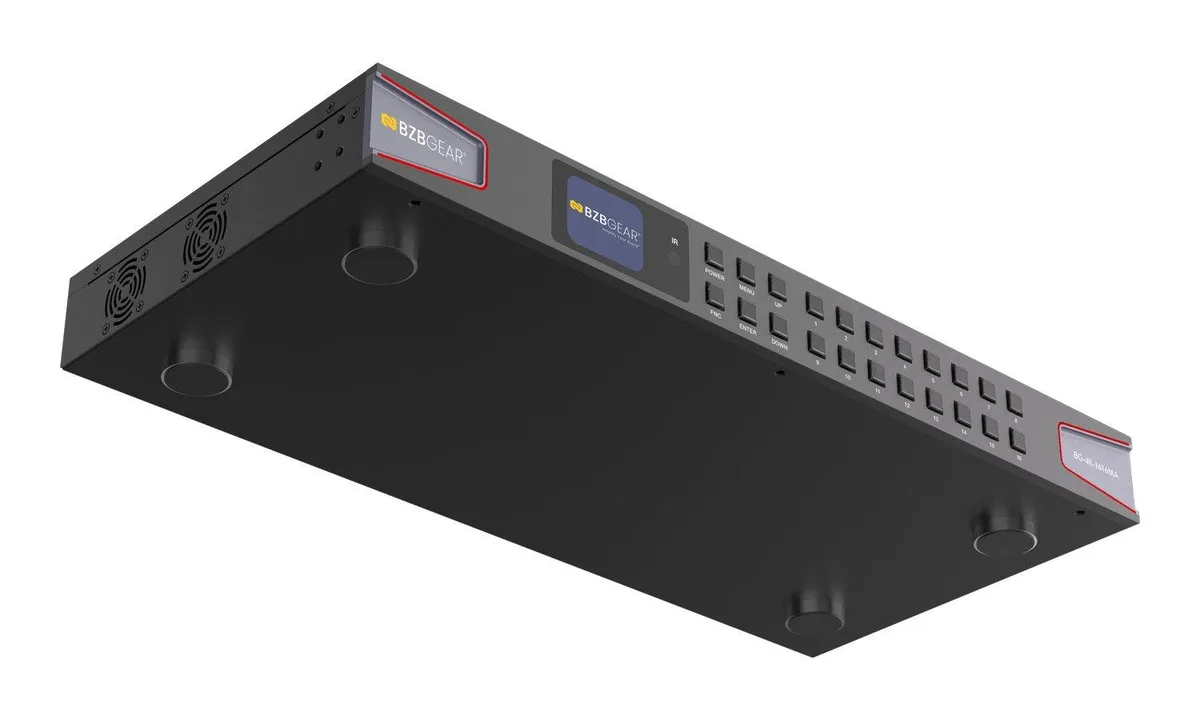

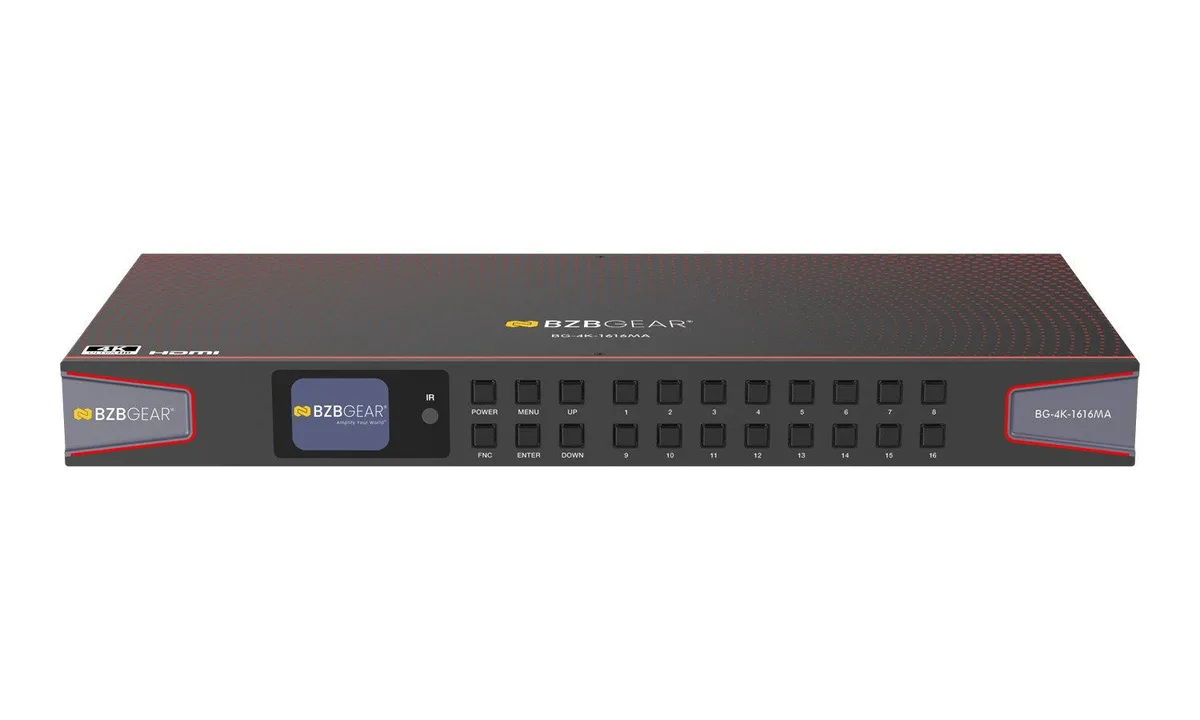

Black rack-mount matrix switcher with front-panel buttons and LCD display

BZBGEAR

BZBGEAR 16x16 4K HDMI 2.0 Matrix Switcher Audio

SKU CH-THJ6-A688R

Routes sixteen HDMI 2.0 sources to sixteen displays at 4K 60 Hz 4:4:4 with HDR and independently matrixes audio

  • MatrixYes
  • Dimensions18×8×2 in
  • Weight9 lb
  • Package Contents1x BG-4K-1616MA 1x 24V/3.75A Locking Power Adapter 1x AC Pow
  • 16×16 matrix routes any source to any display
  • 4K60 4:4:4 HDR delivers full-colour ultra-HD picture
  • Independent audio de-embedding sends sound to separate zones
  • HDCP 2.2 compliant protects premium 4K content
  • Front panel IR RS-232 TCP/IP control fits any workflow

16x16 HDMI 2.0 Matrix Switcher

The BZBGEAR BG-4K-1616MA routes up to sixteen HDMI 2.0 sources to sixteen displays. It handles 4K60 4:4:4 HDR video at 18 Gbps with HDCP 2.2 compliance. Independent audio de-embedding sends sound separately via digital S/PDIF and balanced analogue outputs. Control is available from the front panel, IR remote, RS-232 or TCP/IP web GUI.

Sustained 18 Gbps routing with downscaling

Each output maintains full 18 Gbps bandwidth for continuous 4K60 4:4:4 HDR streams without compression. Auto-downscaling on every output allows older 1080p screens to stay in the same matrix. HDCP 2.2 handshake management remains stable across all sixteen ports during extended sessions. EDID management keeps resolution negotiation consistent when sources or displays change.

Verify HDMI 2.0 sources and control needs

Confirm every source device outputs HDMI 2.0 and that cables support 18 Gbps for the full 4K60 4:4:4 signal path. The unit requires the included 24 V 3.75 A locking power adapter and rack space for its 18×8×2 in chassis. Choose a control method — front panel, IR, RS-232 or TCP/IP — that matches your installation infrastructure.

Highlights

  • 16×16 matrix routes any source to any display
  • 4K60 4:4:4 HDR delivers full-colour ultra-HD picture
  • Independent audio de-embedding sends sound to separate zones
  • HDCP 2.2 compliant protects premium 4K content
  • Front panel IR RS-232 TCP/IP control fits any workflow

Specifications

MatrixYes
Dimensions18×8×2 in
Weight9 lb
Package Contents1x BG-4K-1616MA
1x 24V/3.75A Locking Power Adapter
1x AC Power Cord (1.5m)
1x IR Remote
1x 12V IR Wideband Receiver Cable (1.5m)
1x RS-232 Serial Cable (1.5m, male to female head)
4x 5-pin 3.81mm Phoenix Connectors
4x Machine Screws (KM3*4)
2x Mounting Ears
1x User Manual

Questions about this item

How much heat and noise does the 16x16 matrix produce when running continuously?

The unit ships with a 24 V 3.75 A locking power adapter and has no fan listed in the specifications, so it operates silently with only modest warmth during all-day use.

Which cables and sources must I already have to use the 16 HDMI 2.0 inputs and outputs?

You need up to sixteen HDMI 2.0 source devices and sixteen HDMI 2.0 displays plus standard HDMI cables; the box includes the 24 V power adapter, AC cord, IR remote, IR receiver, RS-232 cable and four 5-pin 3.81 mm Phoenix connectors for balanced audio.

Will the matrix downscale 4K 60 Hz 4:4:4 signals for my older 1080p displays?

Yes, the specifications confirm auto-downscaling on every output, so each connected screen receives a compatible resolution without manual setup.
