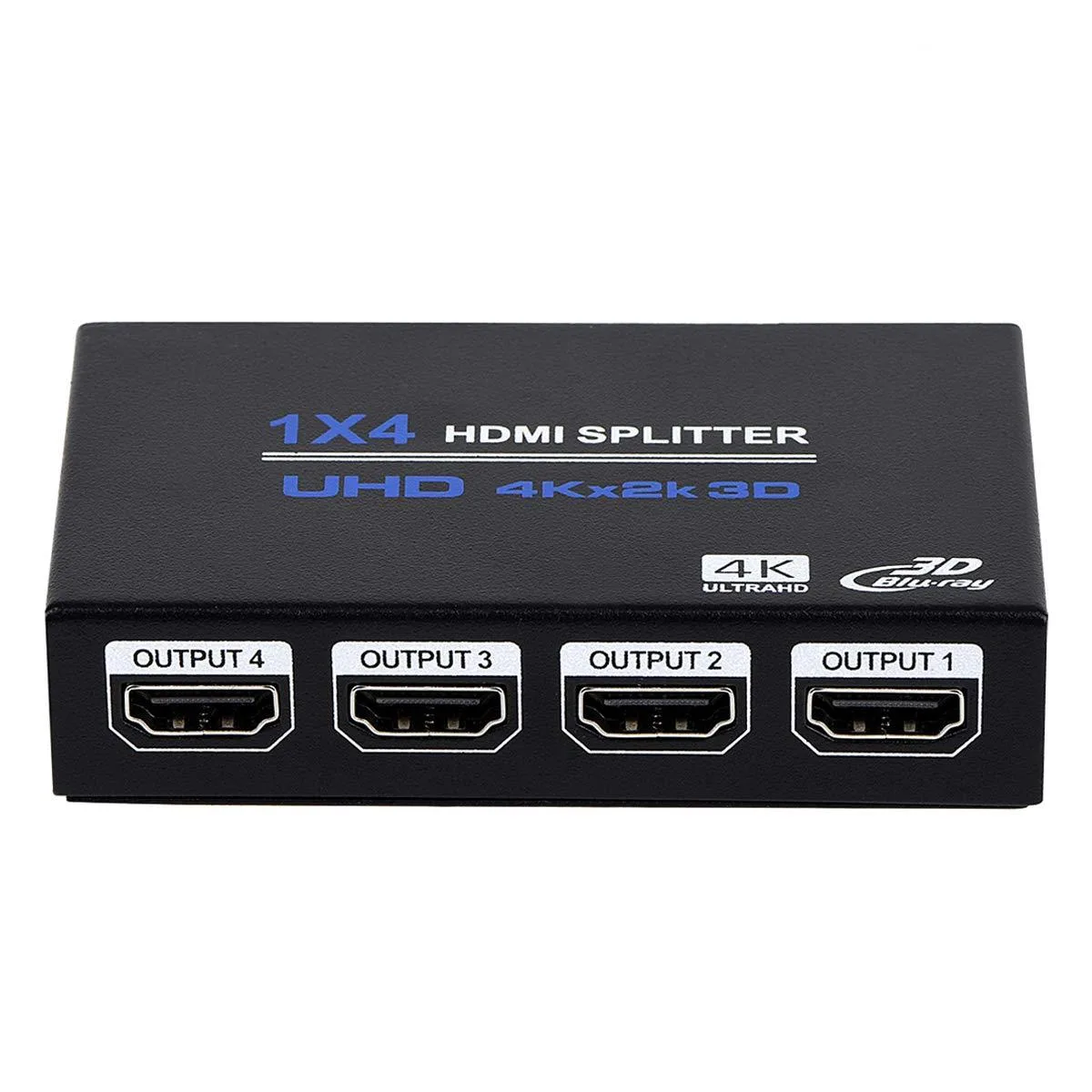

Small black box with one HDMI input and four HDMI outputs on the front

BYTECC MAX-376 1x4 HDMI Splitter 4K@30Hz 10.4Gbps Black

SKU CH-PVA8-N77WE

Distributes one HDMI source to four displays with 4K@30Hz mirroring and 10.4Gbps bandwidth

  • TypeDisplayPort Splitters
  • Changer TypeHDMI
  • Ports3
  • Industry Standards52161500
  • ColorBlack
  • SpecificationsHDMI, 4, black, 3.9116 L x 12.8016 W x 14.7066 H centimeters
  • Distributes one HDMI source to four identical displays simultaneously
  • Supports 4K at 30 Hz and 1080p at 120 Hz
  • Handles 10.4 Gbps bandwidth with 340 MHz TMDS clock
  • Accepts input cables up to 15 metres at lower resolutions
  • Includes 5 V DC power supply for stable operation

What this device does

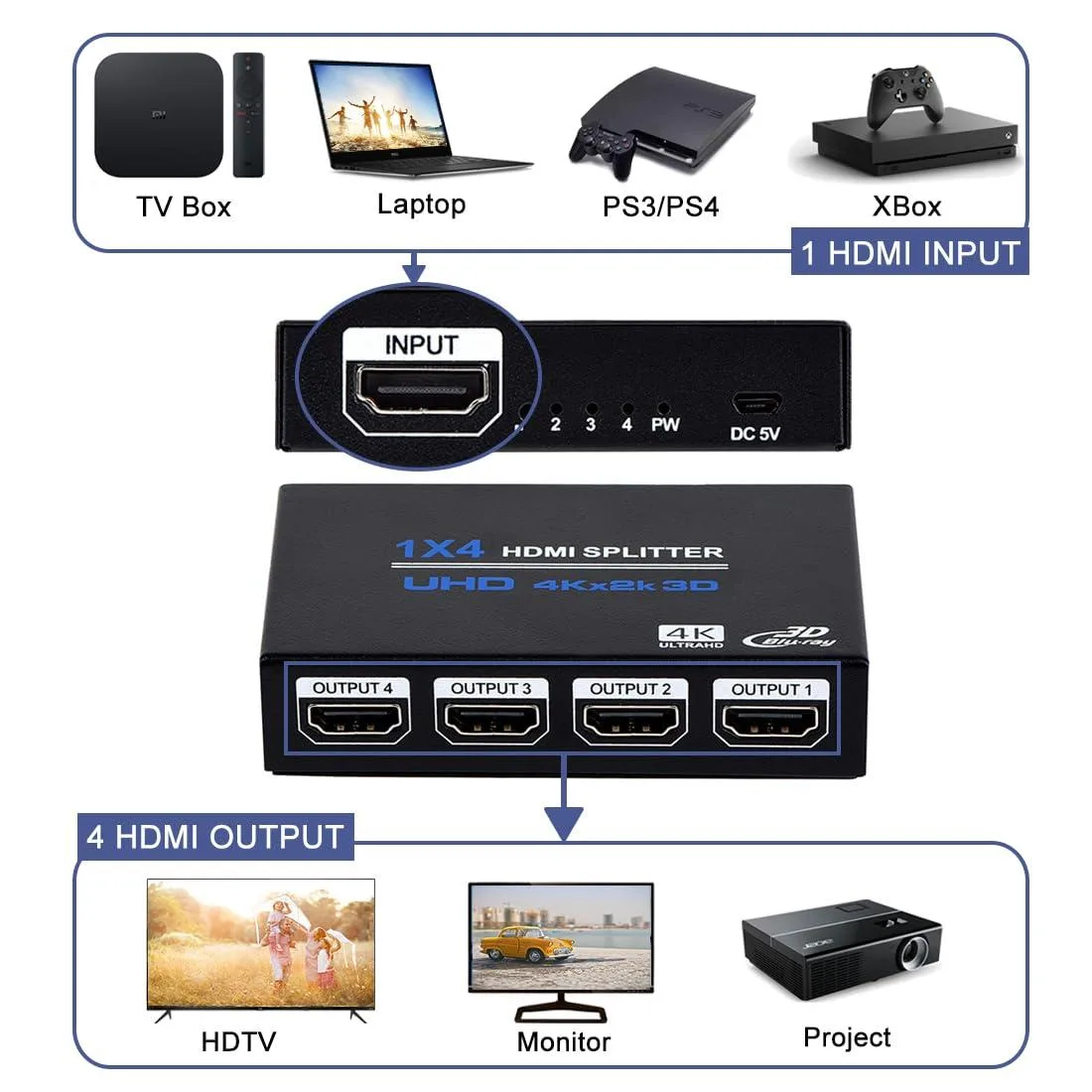

The BYTECC MAX-376 is a 1x4 HDMI splitter that takes a single HDMI source and sends an identical signal to four displays at once. It supports video up to 4K at 30 Hz and 1080p at 120 Hz, plus audio formats such as DTS-HD, Dolby TrueHD and DSD. The unit is HDCP 1.4 compliant and works with sources like computers, consoles and Blu-ray players.

Who this suits and who it does not

This splitter suits installers who need to mirror one source across four screens in a classroom, signage or home-theatre rack. It does not suit users who want to extend a desktop across multiple monitors, because the device only duplicates the image. It also lacks ARC support, so buyers needing audio return from a TV to a sound system should look elsewhere.

The spec that decides fit

Maximum bandwidth is 10.4 Gbps with a TMDS clock up to 340 MHz, which limits 4K output to 30 Hz and 4K at 60 Hz to YCbCr only. If your source requires 4K at 60 Hz in full RGB or needs HDR, VRR or CEC, this splitter will not meet those requirements.

Highlights

  • Distributes one HDMI source to four identical displays simultaneously
  • Supports 4K at 30 Hz and 1080p at 120 Hz
  • Handles 10.4 Gbps bandwidth with 340 MHz TMDS clock
  • Accepts input cables up to 15 metres at lower resolutions
  • Includes 5 V DC power supply for stable operation

Specifications

BrandBYTECC
SeriesMAX-376
ModelMAX-376
Part NumberMAX-376
TypeDisplayPort Splitters
Changer TypeHDMI
Ports3
Industry Standards52161500
ColorBlack
SpecificationsHDMI, 4, black, 3.9116 L x 12.8016 W x 14.7066 H centimeters, 0.209 kilograms, false, ENBUER
Input Connector1x DisplayPort female
Output Connector2x DisplayPort female
Connector StyleMale
Maximum Cable Length0 meters
FeaturesHDMI, 4
Dimensions14.33in W x 12.83in H x 9.06in D
Weight0.209 kilograms
Package Quantity1
Disclaimernot_applicable

Questions about this item

What bandwidth ceiling caps the splitter under sustained 4K use?

The splitter supports a maximum rate of 10.4 Gbps with a TMDS clock up to 340 MHz, which limits 4K output to 30 Hz.

How much heat or noise does the unit produce when running all day?

The device has no fan and draws power from an included 5 V DC supply, so it runs silently with negligible heat during continuous operation.

Which cables and power source must I already have for it to work?

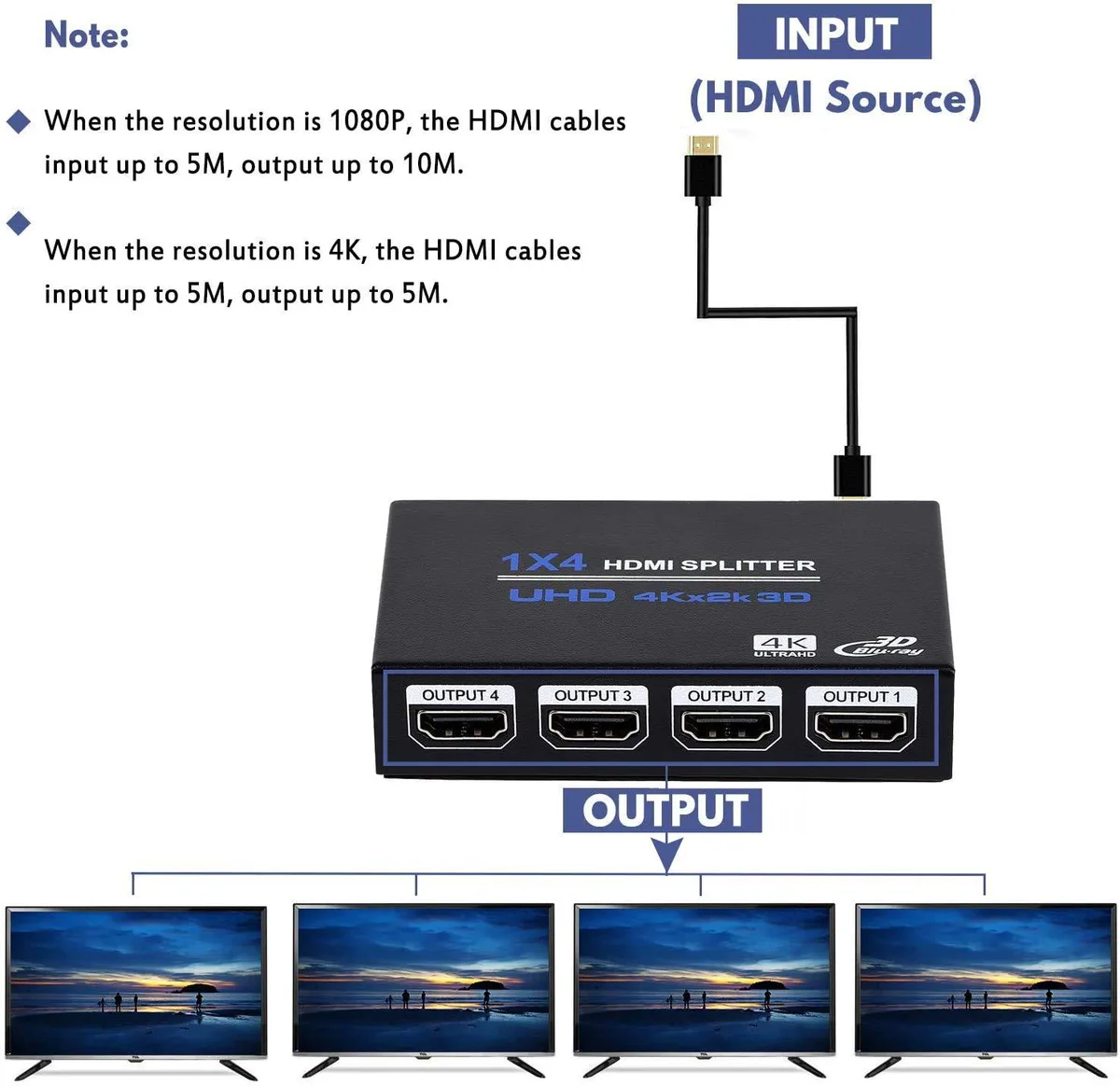

You need one HDMI source cable up to 33 ft for the input and up to four HDMI cables up to 50 ft each for the outputs, plus a mains outlet for the 5 V DC adapter.
