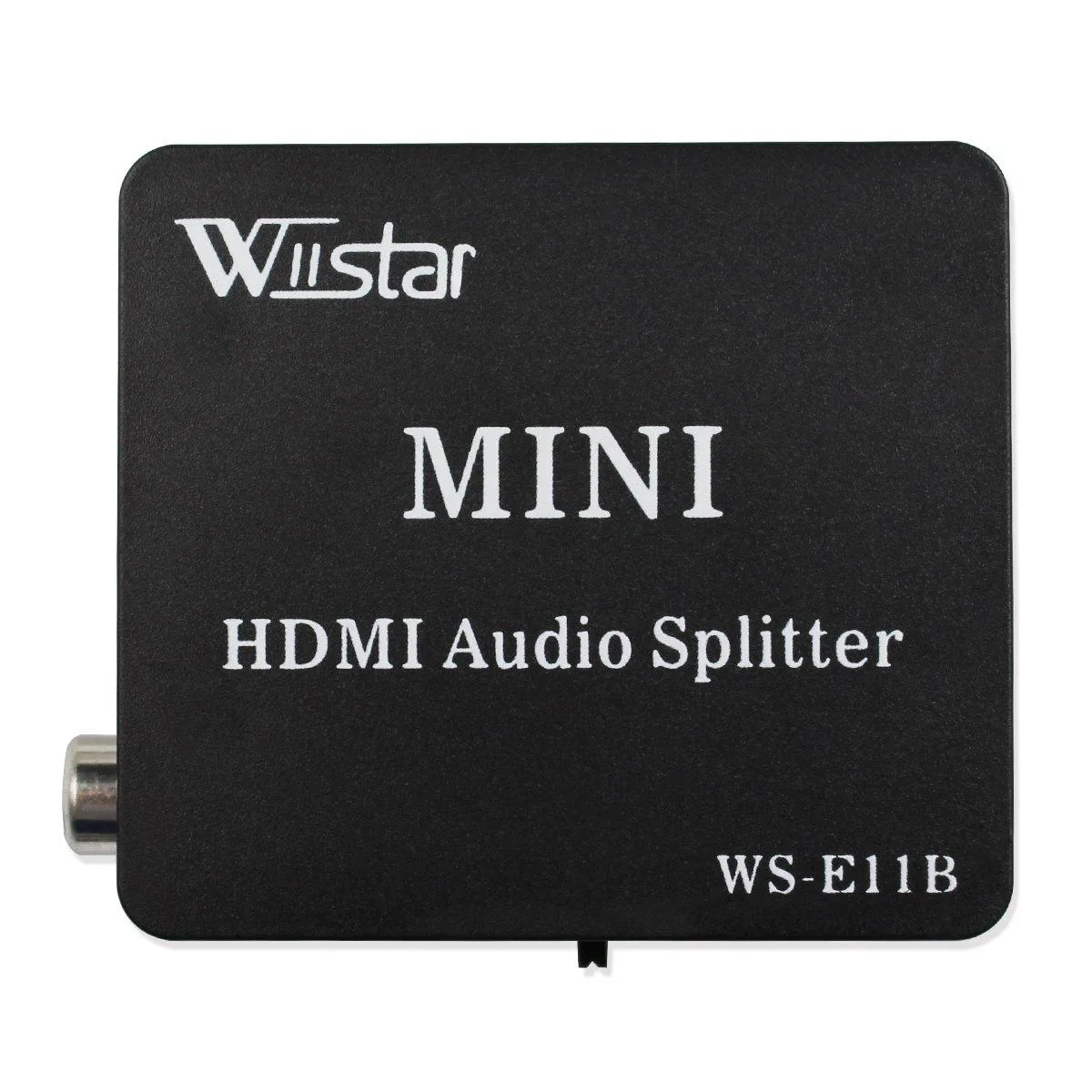

Small black box with HDMI ports and audio jacks

BYTECC 8541765051 HDMI Audio Extractor 1080p 5.1CH

SKU CH-M9ST-D2H69

Extracts HDMI audio to optical, coaxial and 3.5 mm outputs while passing 1080p video, with 2.0 and 5.1 channel modes

  • Ports3
  • Specifications8541765051, 6 L x 5 W x 2 H centimeters, 4, Headphone, Wiist
  • Output Connector2x DisplayPort female
  • Connector PlatingHdmi
  • Features4, Headphone
  • Dimensions14.33in W x 12.83in H x 9.06in D
  • Extracts HDMI audio to 3.5 mm stereo and SPDIF coaxial simultaneously
  • Supports 5.1-channel Dolby Digital and DTS via SPDIF output
  • Passes 1080p video at 50/60 Hz while separating audio

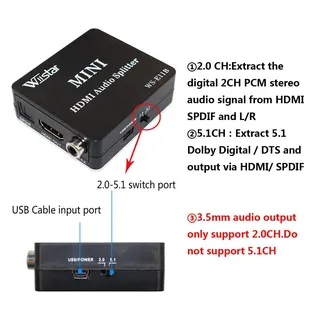

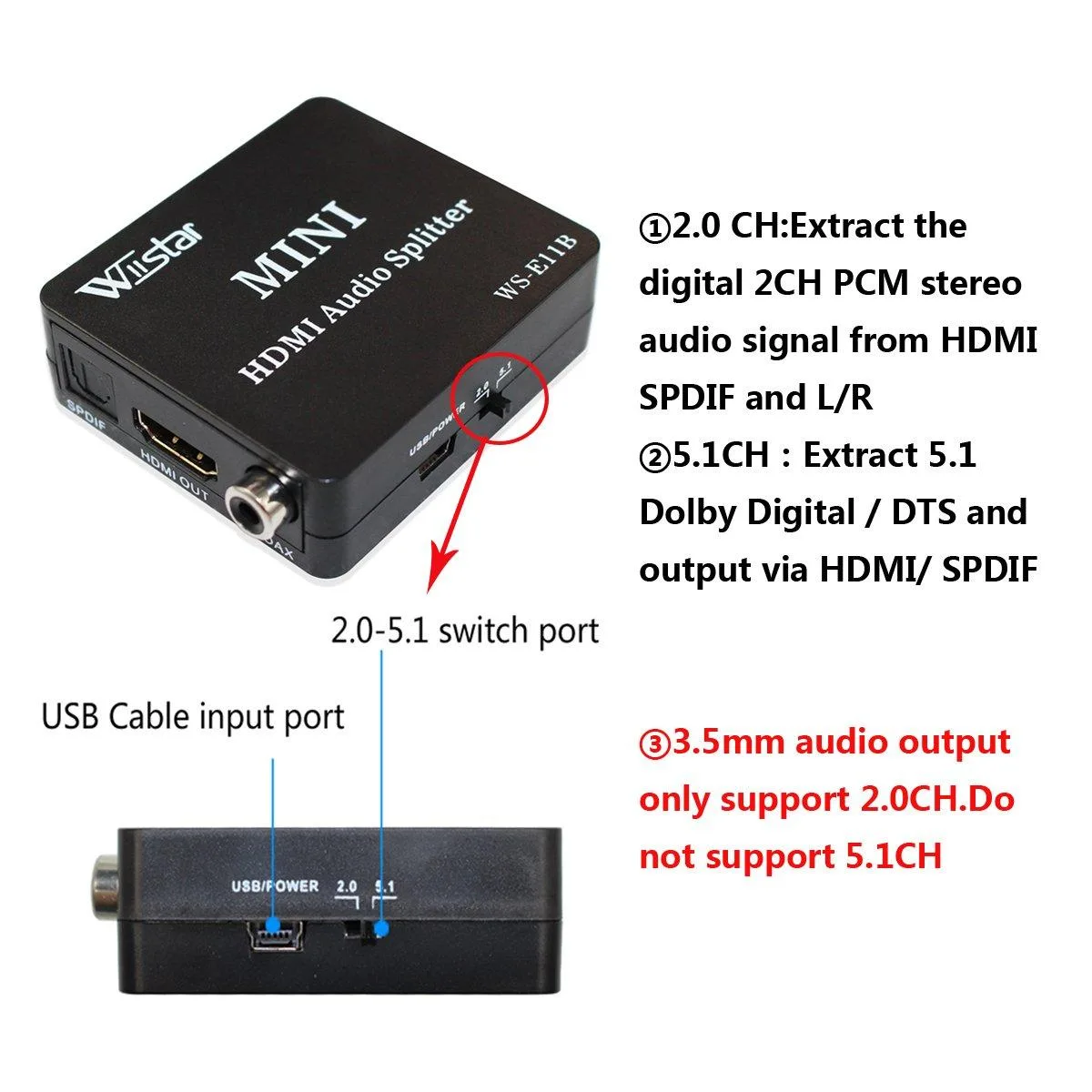

  • Three-mode switch selects pass-through, 2.0CH stereo or 5.1CH extraction
  • Compact 0.07 lb unit with HDMI in, HDMI out, SPDIF, coaxial and 3.5 mm ports

HDMI Audio Extractor 1080p 5.1CH

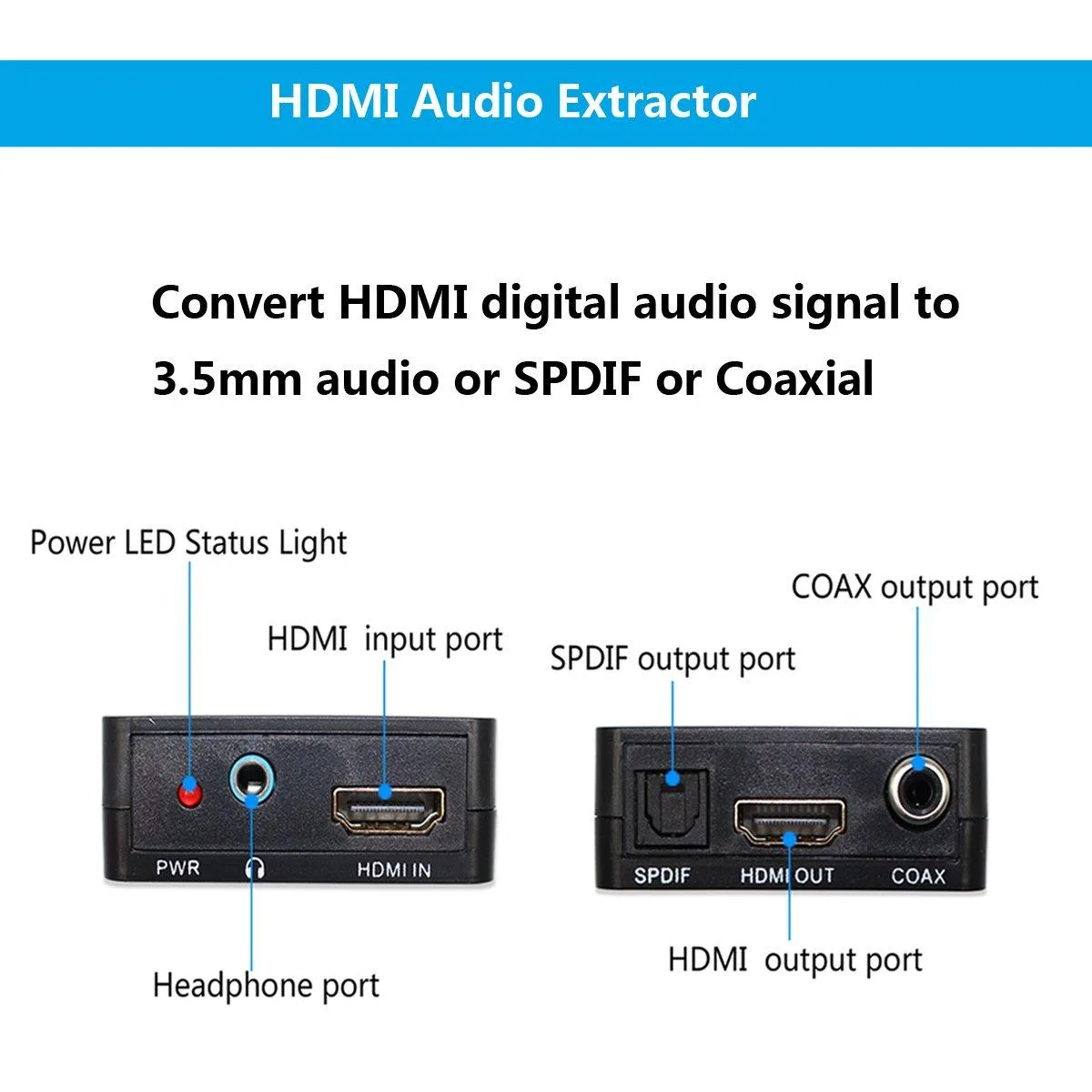

The BYTECC 8541765051 extracts digital audio from an HDMI source and converts it to analog stereo or 5.1 channel output. It provides one HDMI input with a loop-through HDMI output plus SPDIF, coaxial and 3.5 mm connections. The unit supports input resolutions up to 1080p at 50 or 60 Hz.

Upgrade from TV speakers only

This splitter replaces the need for a separate audio receiver when you want multichannel sound from a single HDMI source. The jump is worth it if your display lacks audio outputs or your sound system requires SPDIF or coaxial digital input. It does not suit buyers who need HDMI 2.1 bandwidth or 4K pass-through.

Limits of HDMI 1080p and SPDIF

The HDMI path is limited to 1080p resolution and standard refresh rates of 50 or 60 Hz. SPDIF output carries up to 5.1 channel Dolby Digital or DTS but cannot transmit 5.1 Digital Plus or lossless formats. In 5.1 CH mode the 3.5 mm jack outputs no sound when the incoming stream is multichannel.

Highlights

  • Extracts HDMI audio to 3.5 mm stereo and SPDIF coaxial simultaneously
  • Supports 5.1-channel Dolby Digital and DTS via SPDIF output
  • Passes 1080p video at 50/60 Hz while separating audio
  • Three-mode switch selects pass-through, 2.0CH stereo or 5.1CH extraction
  • Compact 0.07 lb unit with HDMI in, HDMI out, SPDIF, coaxial and 3.5 mm ports

Specifications

BrandBYTECC
Series8541765051
Model8541765051
Part NumberWS-E11B
Ports3
Specifications8541765051, 6 L x 5 W x 2 H centimeters, 4, Headphone, Wiistar, WS-E11B
Output Connector2x DisplayPort female
Connector PlatingHdmi
Features4, Headphone
Dimensions14.33in W x 12.83in H x 9.06in D
Weight0.07 pounds
Package Quantity1
Package Contents1

Questions about this item

What are the exact dimensions of the BYTECC 8541765051 extractor?

The unit measures 14.33in wide, 12.83in high and 9.06in deep, weighing only .07 pounds so it sits easily on a shelf or behind a display.

How do I set the audio mode correctly, and what step do people miss?

Slide the three-position switch to PASS, 2.0CH or 5.1CH to match your source; the step users forget is power-cycling the extractor after changing the mode so the EDID handshake re-negotiates.

Which audio outputs stay active in 5.1CH mode and what will need attention later?

In 5.1CH mode the SPDIF and coaxial ports carry Dolby Digital or DTS 5.1 while the 3.5 mm jack is muted; only the SPDIF/coaxial paths need checking if you later switch to a stereo-only source.
