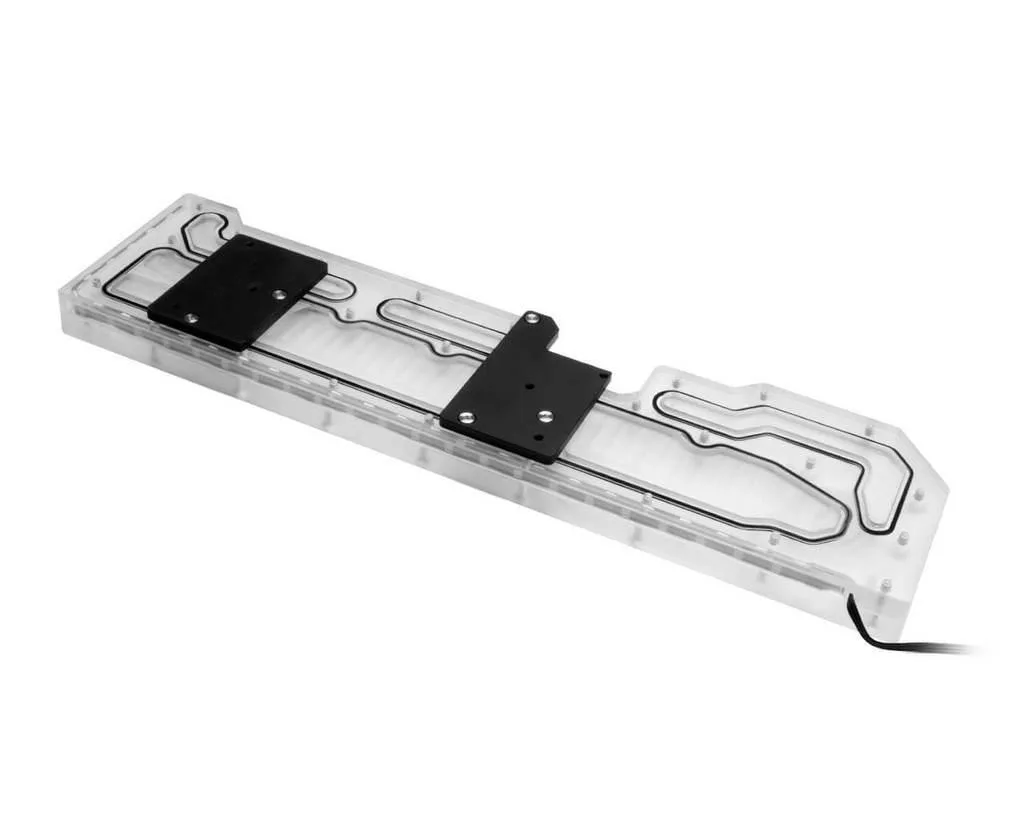

Clear PMMA distro plate with black DDC pump and 5V ARGB lighting, ZEAGINAL 07 case fit

Bykski

Bykski Distro Plate ZEAGINAL 07 PMMA 5V ARGB DDC Pump

SKU CH-KBHS-R0BES

A case-specific PMMA distribution plate with an included DDC pump and 5V ARGB lighting for the ZEAGINAL 07 chassis

  • TypeWater Blocks
  • Case-specific fit for ZEAGINAL 07 ensures perfect tube routing
  • Integrated DDC pump powers the loop at 132 GPH max flow

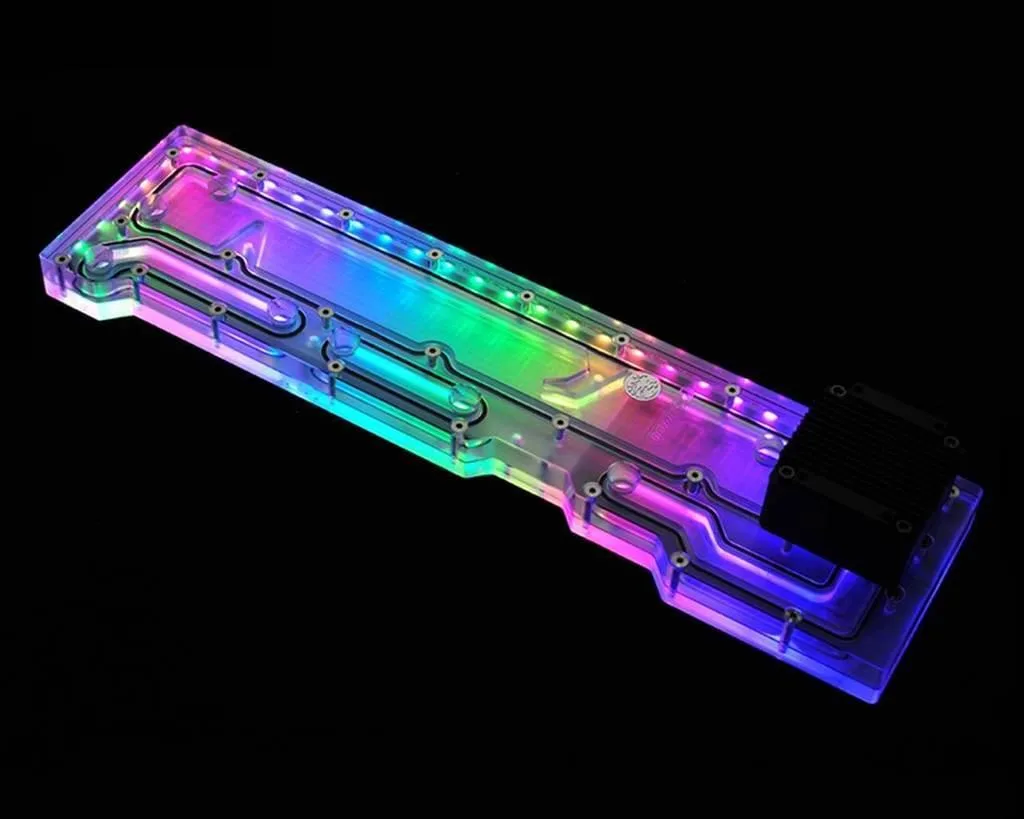

  • Clear PMMA construction shows coolant movement and 5 V ARGB lighting
  • G 1/4 threads support standard fittings for aluminium or non-aluminium loops
  • Pump rated 50 000 hours MTBF with PWM speed control up to 5000 RPM

Case-Specific Distribution Plate

The Bykski Distro Plate ZEAGINAL 07 is built from clear PMMA with G 1/4 threads and integrates a DDC pump. It is designed for custom-loop builders who use the ZEAGINAL 07 chassis and want a single component that routes coolant to every block with aligned ports.

Capacity and Headroom

The included pump delivers up to 132 GPH at 5000 RPM with an 18 W TDP on a 12 V supply. It supports radiators up to 30 mm thick and works in aluminum or non-aluminum loops, but flow will drop if the loop adds many restrictive blocks or long tubing runs.

Deciding Specification

This plate only fits the ZEAGINAL 07 case; it cannot be mounted in any other chassis. Buyers who need a universal distro plate or a different case layout cannot use this part.

Highlights

  • Case-specific fit for ZEAGINAL 07 ensures perfect tube routing
  • Integrated DDC pump powers the loop at 132 GPH max flow
  • Clear PMMA construction shows coolant movement and 5 V ARGB lighting
  • G 1/4 threads support standard fittings for aluminium or non-aluminium loops
  • Pump rated 50 000 hours MTBF with PWM speed control up to 5000 RPM

Specifications

BrandBykski
TypeWater Blocks

Questions about this item

Will this distro plate fit my existing ZEAGINAL 07 case and 30 mm radiators?

Yes, it is engineered specifically for the ZEAGINAL 07 chassis and designed for radiators 30 mm thick or less.

How can I verify the included DDC pump is running correctly after installation?

The pump uses a standard 4-pin power connector and PWM header; monitor RPM in BIOS or software — it should reach up to 5000 RPM at 12 V.

Does the package contain the distro plate, pump and mounting hardware, or must I buy fittings separately?

The box includes the PMMA distro plate, one DDC pump with black armor and mounting hardware; G 1/4 fittings are not supplied.
