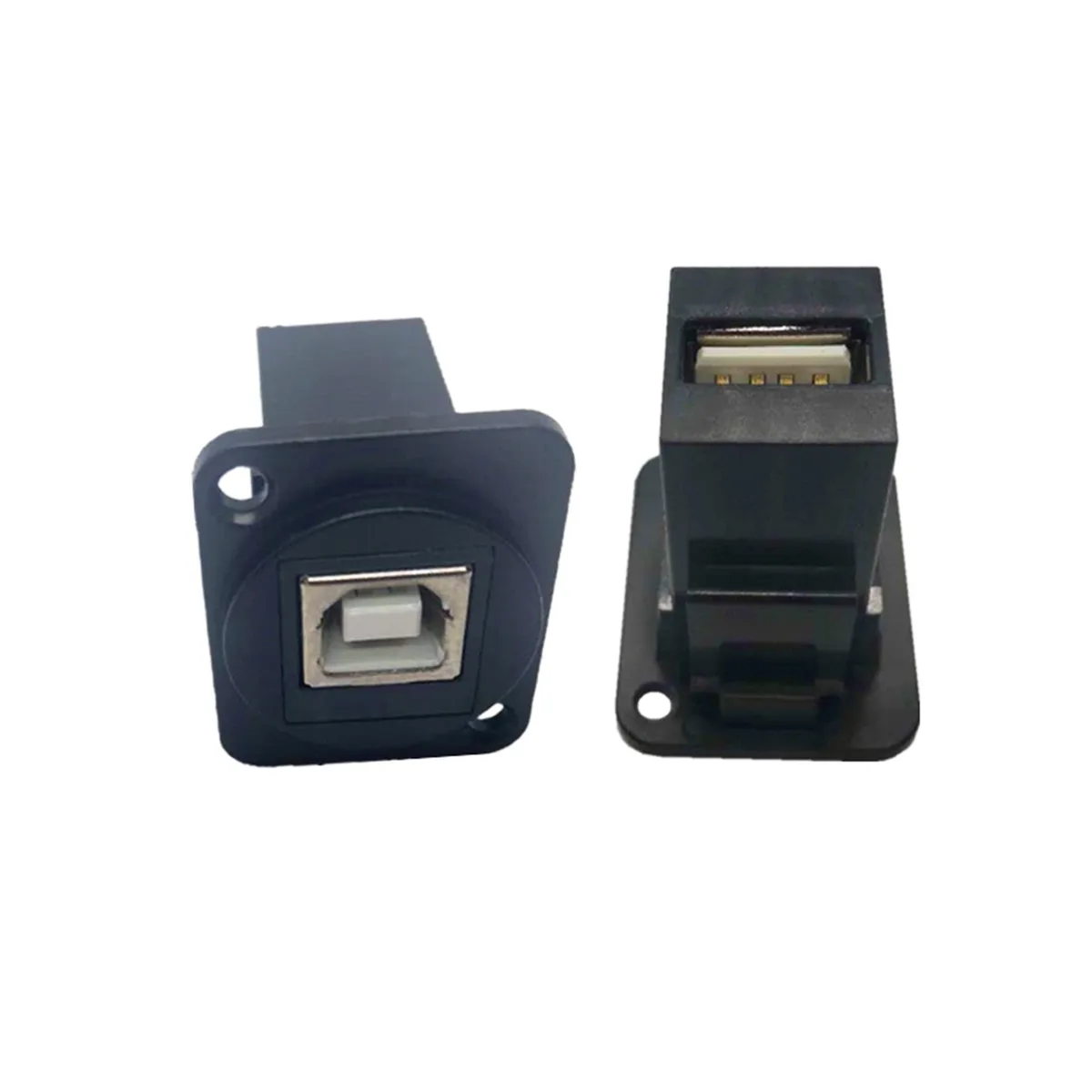

Black rectangular panel-mount adapter with D-shaped flange, USB-B to USB-A female ports, gold-plated contacts, zinc diecast body

BUCIER

BUCIER USB 2.0 D Panel Mount B to A Adapter Solderless

SKU CH-WTB1-X5AWD

A USB 2.0 panel-mount adapter that converts a Type-B port to Type-A without soldering, rated for 1.5 A at 50 V and 1,000 mating cycles

  • TypeUSB 2.0
  • ColorBlack
  • Cable Lengthinches
  • Changer TypeUSB 2.0
  • SpecificationsPrinter
  • Connector AUSB 2.0
  • D-type panel mount fits standard industrial cut-outs for secure chassis installation
  • Solderless screw terminals enable tool-free wiring without a soldering iron
  • USB 2.0 female-to-female adapter reverses B and A connectors for flexible cabling
  • Gold-plated contacts rated 1.5 A at 50 V with >0.5 GΩ insulation resistance
  • Rated for over 1000 mating cycles with 10 N insertion and withdrawal force

Product identity

The BUCIER USB 2.0 D Panel Mount adapter converts a USB Type-B port to a USB Type-A port without soldering. It is designed for installers who need a permanent panel-mount data connection in audio, video or optoelectronic equipment.

Pre-installation checks

Verify that the mounting panel matches the standard D-type aperture used by this connector. Confirm the device you are connecting operates within the 50 V, 1.5 A rating and the 1–100 MHz frequency range. Ensure the gold-plated contacts meet the 0.5 GΩ insulation resistance requirement for your application.

Suitability

This adapter suits technicians building fixed installations in stages, cinemas, KTV systems or weak-current engineering panels where a solderless, shielded female-to-female link is required. It is not for users who need a removable cable assembly, a higher current rating or a different panel cut-out standard.

Highlights

  • D-type panel mount fits standard industrial cut-outs for secure chassis installation
  • Solderless screw terminals enable tool-free wiring without a soldering iron
  • USB 2.0 female-to-female adapter reverses B and A connectors for flexible cabling
  • Gold-plated contacts rated 1.5 A at 50 V with >0.5 GΩ insulation resistance
  • Rated for over 1000 mating cycles with 10 N insertion and withdrawal force

Specifications

BrandBUCIER
Model739713969228
TypeUSB 2.0
ColorBlack
Cable Lengthinches
Changer TypeUSB 2.0
SpecificationsPrinter
Connector AUSB 2.0
Connector BUSB 2.0
FeaturesPrinter
Package Quantity1

Questions about this item

What comes in the box and do I need any extra tools to fit it?

The pack contains one USB B to A D-type panel connector and two mounting screws; no soldering is required so no extra tools are needed.

Which version of this adapter should I choose for a panel-mount installation?

The single model 739713969228 is a USB 2.0 D-type panel-mount unit with standard D-type cut-out dimensions and the two screws supplied.

What does the 1.5 A current rating mean when the adapter is installed in a device?

It allows up to 1.5 amps at 50 V through the gold-plated contacts, supporting typical USB 2.0 power and data needs with a service life above 1000 mating cycles.
