Two black and blue SFF-8087 to 4 SATA breakout cables, 3.3FT each

BUCIER

BUCIER SFF-8087 to 4 SATA Breakout Cable 3.3FT 2Pack

SKU CH-FPXK-JA9FW

Connects a Mini SAS SFF-8087 controller to four SATA drives at 6 Gbps per drive using a 3.3 ft forward breakout cable with locking latches

  • TypeSAS to SATA, Mini SAS to SATA
  • ColorBlack+Blue
  • Length3.3
  • Speed6 gigabits_per_second
  • ConductorCopper
  • FeaturesMINI SAS SFF-8087 to SATA 1M
  • Connect four drives with one SFF-8087 port
  • 6 Gbps per drive for fast data transfer
  • Locking latches on both ends secure the connection
  • 30 AWG thin cables simplify internal routing
  • 3 ft length fits most chassis layouts

BUCIER SFF-8087 Breakout Cable 3.3FT

This two-pack provides SFF-8087 to 4 SATA forward breakout cables measuring 3.3 feet each. The cables connect a Mini SAS 36-pin male host port on a controller or motherboard to four SATA 7-pin female target connectors for drives or backplanes. Rated for 6 Gbps per drive, they use 30 AWG copper conductors for flexible routing inside chassis.

Suits builders adding four SATA drives to one Mini

The pair is ideal for expanding storage on a SAS HBA or RAID controller that presents an SFF-8087 interface. It will not work if you plug the SFF-8087 end directly into a backplane, as the pinout is host-to-target only. Buyers needing reverse breakout or sideband cables should look elsewhere.

Simple push-fit install with locking latches

Both the Mini SAS and SATA ends feature locking latches that click into place for a secure internal link. The thin 30 AWG wires bend easily around tight drive cages. The only common issue is inserting the SFF-8087 connector into a target backplane instead of a host controller, which prevents the link from establishing.

Highlights

  • Connect four drives with one SFF-8087 port
  • 6 Gbps per drive for fast data transfer
  • Locking latches on both ends secure the connection
  • 30 AWG thin cables simplify internal routing
  • 3 ft length fits most chassis layouts

Specifications

BrandADCAUDX
ModelSFF-8087 to SATA 1M
TypeSAS to SATA, Mini SAS to SATA
ColorBlack+Blue
Length3.3
Speed6 gigabits_per_second
ConductorCopper
FeaturesMINI SAS SFF-8087 to SATA 1M

Questions about this item

What controller or motherboard port does the SFF-8087 end plug into?

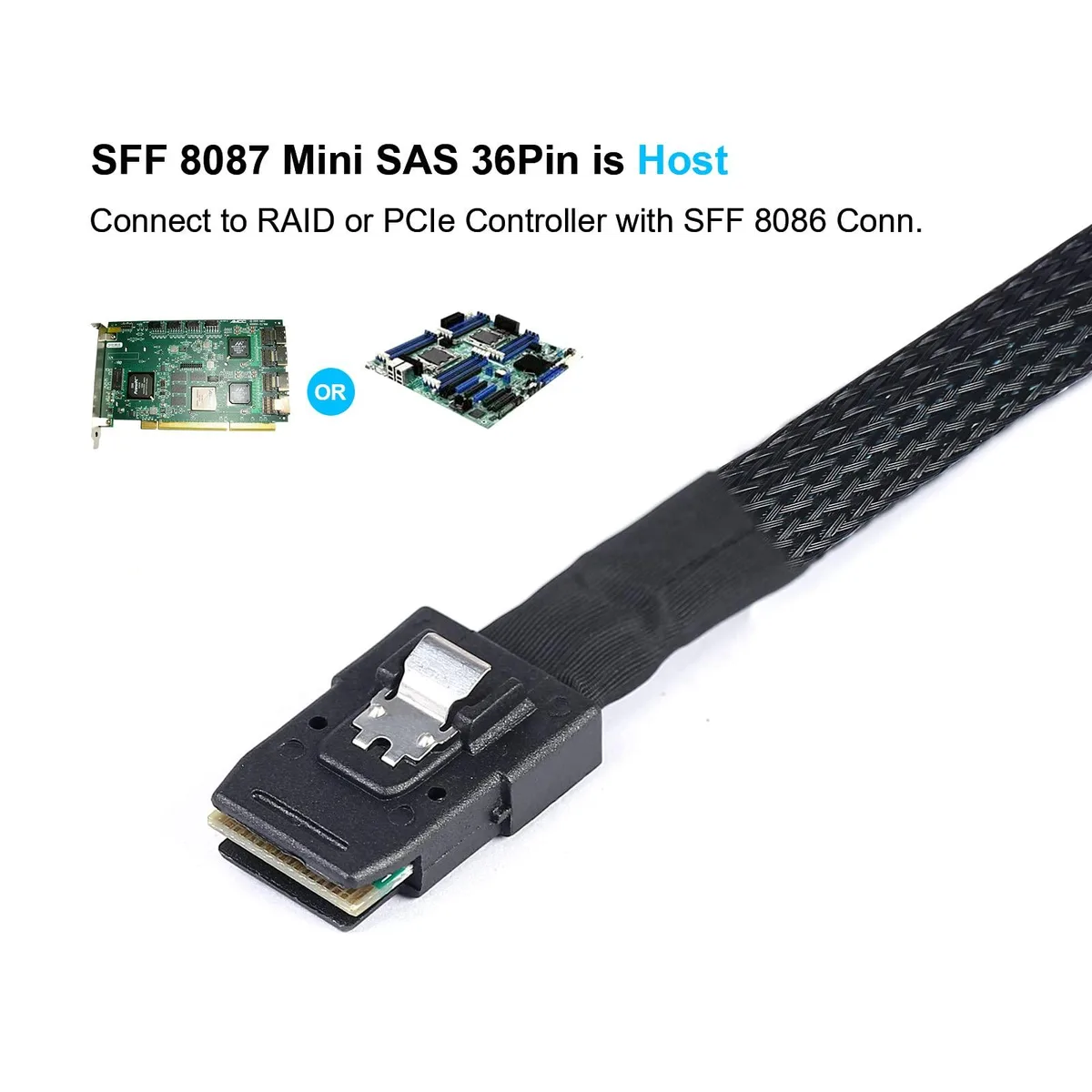

The 36-pin SFF-8087 male connector attaches to a SAS HBA, RAID controller or motherboard Mini-SAS port that serves as the host side.

Will the four SATA connectors support drives limited to 3 Gbit/s?

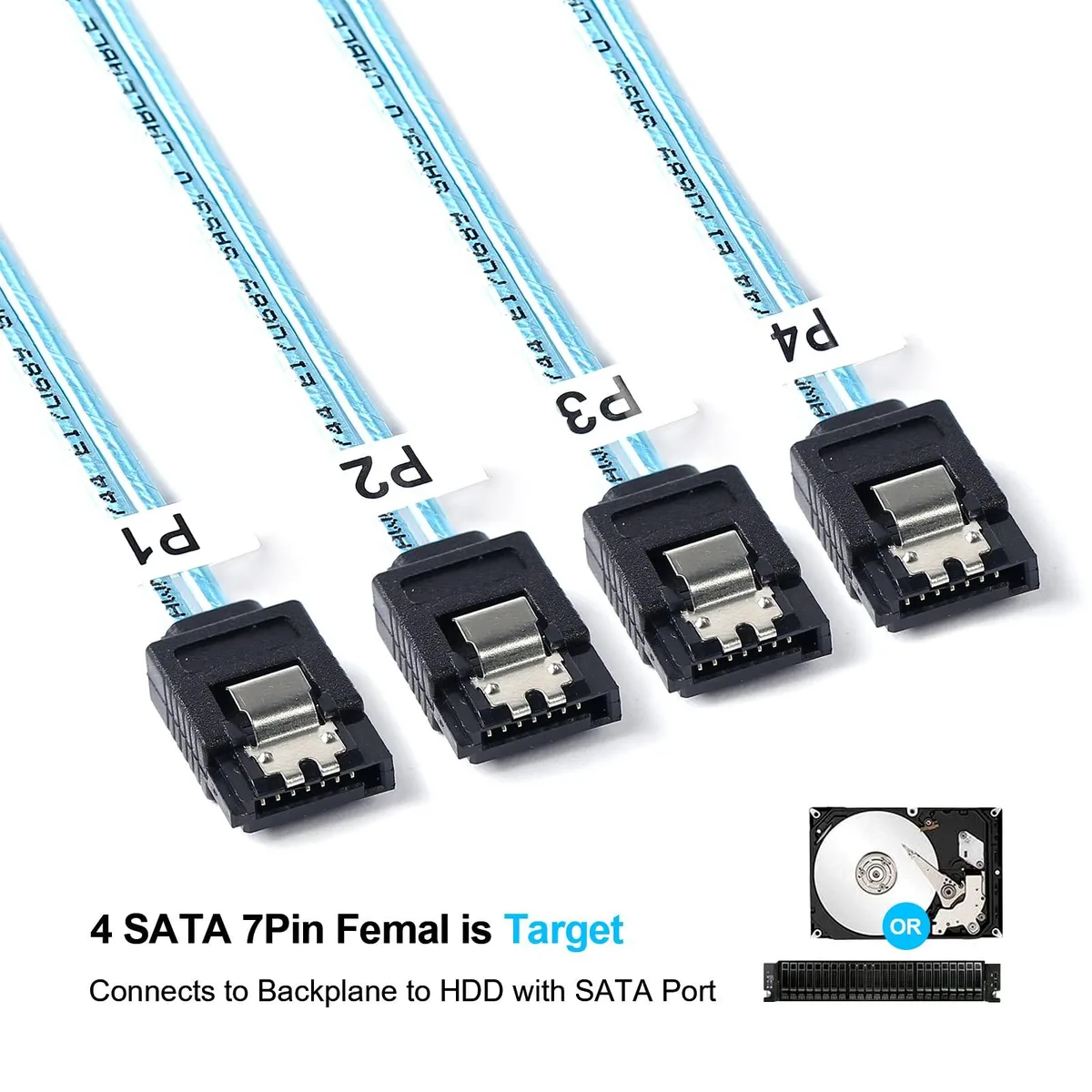

Each SATA 7-pin female connector operates at up to 6 Gbit/s and is backward compatible with 3 Gbit/s SATA drives.

How can I verify the cable is seated correctly after installation?

Both the Mini-SAS and SATA ends have locking latches that click when fully inserted, confirming a secure connection.
