Small black plastic and metal adapter with upward 90-degree USB 3.0 19-pin female and USB 3.1 Type-E female connectors

BUCIER

BUCIER PH73A Up 90 Degree USB 3.0 19Pin to USB 3.1 Type-E Adapter

SKU CH-H53Q-FY5HG

Converts a motherboard USB 3.0 19-pin header to a USB 3.1 Type-E front-panel port with an up-angled 90-degree bracket mount

  • Type19 pin to type e 3.1
  • Color1 Pack
  • Cable Lengthinches
  • Changer Type19 pin to type e 3.1
  • Specifications19 pin to type e 3.1 Adapters device
  • Connector A19 pin to type e 3.1
  • Converts motherboard USB 3.0 19-pin header to front-panel USB 3.1 Type-E
  • Upward 90-degree orientation fits tight PCI bracket clearances
  • Supports 5 Gbps data rate without speed conversion
  • Driver-free plug-and-play on Windows, macOS and Linux

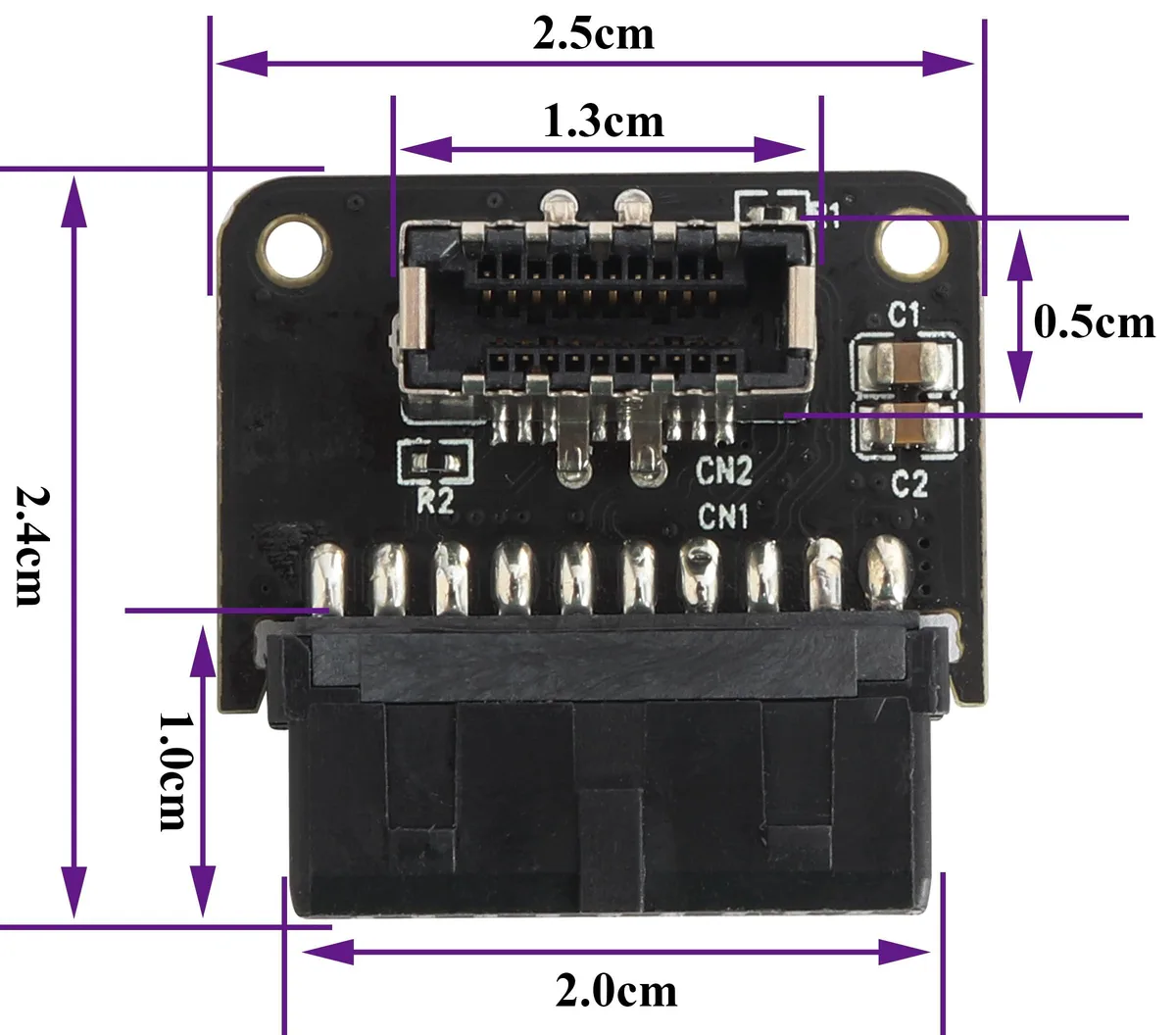

  • Compact 2.5 cm by 2.4 cm plastic-and-metal housing

Up-90-degree USB 3.0 to Type-E adapter

This BUCIER PH73A adapter converts a motherboard USB 3.0 19-pin or 20-pin header into a USB 3.1 Type-E front-panel port. The up-angled 90-degree orientation suits builds where a straight or down-angled connector would foul nearby components. It mounts to a PCI bracket for a secure front-panel Type-C connection. No driver installation is required on Windows XP through 10, macOS or Linux.

Check header type and orientation before ordering

Verify that your motherboard provides a USB 3.0 19-pin or 20-pin internal header; the adapter will not work with a USB 2.0 IDC connector. Confirm the up-90-degree angle (PH73A) matches your chassis layout, as down-90-degree (PH73B) and 180-degree (PH73S) variants exist. Power off the system, unplug the mains cable and wait 20 seconds before fitting the adapter to avoid shorting pins.

PCI bracket mount and speed limit

The bundled PCI bracket lets you secure the Type-E port to a rear expansion slot, giving a tidy front-panel Type-C socket without case modification. The adapter carries only USB 3.0 Gen 1 signals, so the converted link remains at 5 Gbps and does not raise throughput to 10 Gbps. It is a passive interface converter with no active electronics or firmware.

Highlights

  • Converts motherboard USB 3.0 19-pin header to front-panel USB 3.1 Type-E
  • Upward 90-degree orientation fits tight PCI bracket clearances
  • Supports 5 Gbps data rate without speed conversion
  • Driver-free plug-and-play on Windows, macOS and Linux
  • Compact 2.5 cm by 2.4 cm plastic-and-metal housing

Specifications

BrandAAOTOKK
Type19 pin to type e 3.1
Color1 Pack
Cable Lengthinches
Changer Type19 pin to type e 3.1
Specifications19 pin to type e 3.1 Adapters device
Connector A19 pin to type e 3.1
Connector B19 pin to type e 3.1
FeaturesPC
Weight12 grams
Package Quantity1

Questions about this item

Does the package include any cables or brackets, or is it only the adapter?

The package contains one adapter unit. No cables, screws or PCI brackets are included.

How do I decide between the PH73A Up-90 degree, PH73B Down-90 degree and PH73S 180 degree versions?

Choose the PH73A Up-90 degree when the motherboard header points upward and you need the Type-E port angled up; choose PH73B for a downward angle and PH73S for a straight 180 degree orientation.

The adapter is labelled USB 3.1 Type-E but the motherboard header is USB 3.0 19-pin — what speed will I actually get?

The 19-pin header carries only USB 3.0 5 Gbps signals, so the converted Type-E port is limited to 5 Gbps and cannot reach 10 Gbps.
