Black and blue Mini SAS SFF-8087 male to four right-angle SATA female breakout cable, 0.5 m

BUCIER

BUCIER Mini SAS to SATA Cable 0.5M SFF-8087 90° Breakout

SKU CH-HT3X-CMM9E

A 0.5 m SFF-8087 to four SATA breakout cable with 90° angled connectors for linking a SAS controller to up to four drives at 6 Gb/s per port

  • TypeMini-SAS Cables
  • ColorBlack+blue
  • Length1.6
  • Speed6 gigabits_per_second
  • ConductorCopper
  • FeaturesTangle Free
  • Connect four drives with one 36-pin SFF-8087 connector

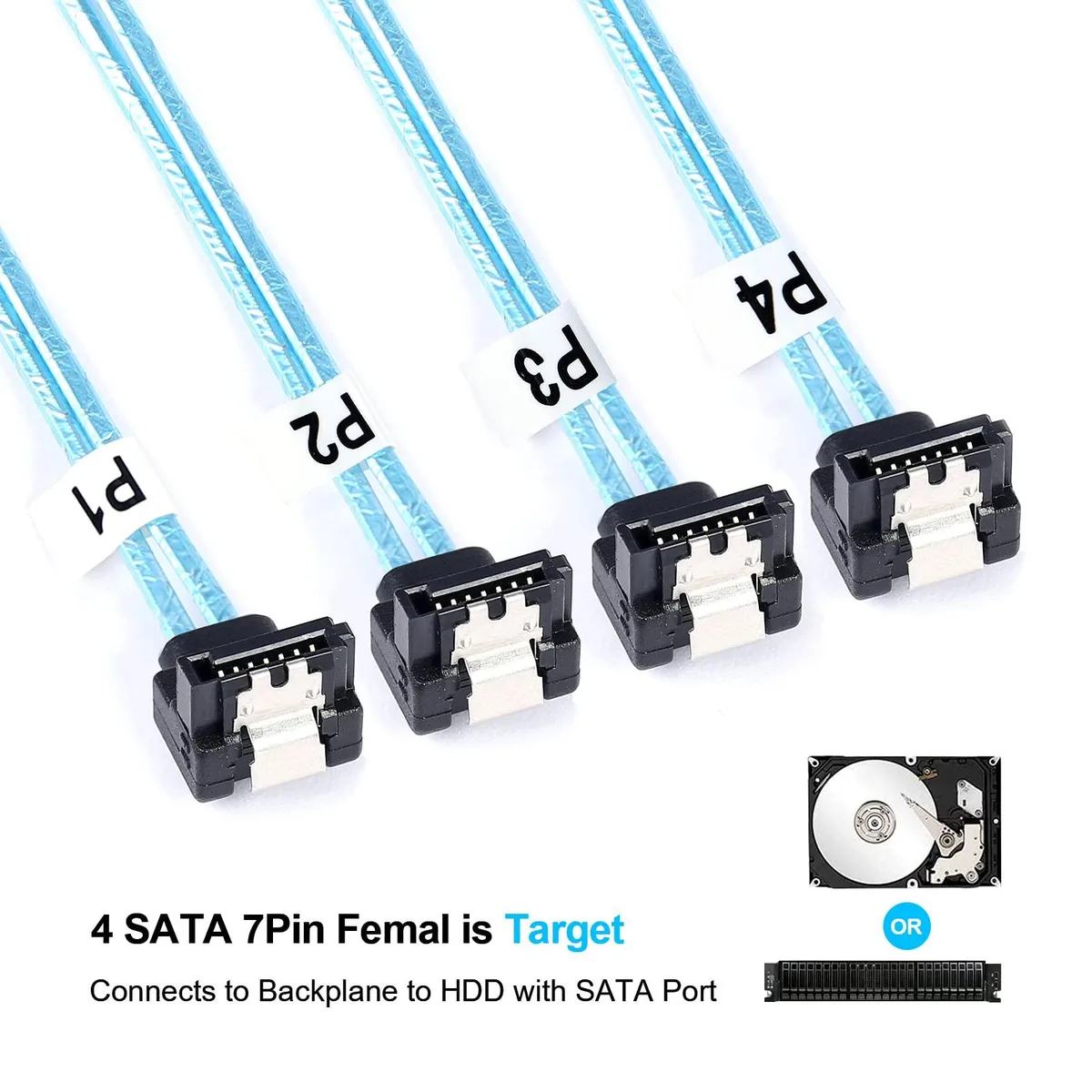

  • 90° right-angle SATA plugs fit tight backplane spaces
  • 6 Gbps per drive supports fast SSD and HDD throughput
  • 30 AWG thin copper conductors keep routing tidy
  • Locking latches on both ends secure the link against vibration

Connect four drives with one SFF-8087 port

This 1.6 ft forward breakout cable links an SFF-8087 male connector on a SAS HBA or RAID controller to four SATA 7-pin female connectors on hard drives or SSDs. The 90-degree right-angle SATA ends ease routing in tight drive cages or backplanes. Copper conductors rated for 6 Gbit/s per drive carry the data. It is built for internal storage expansion in servers or workstations.

Host side must be the controller, not the backplane

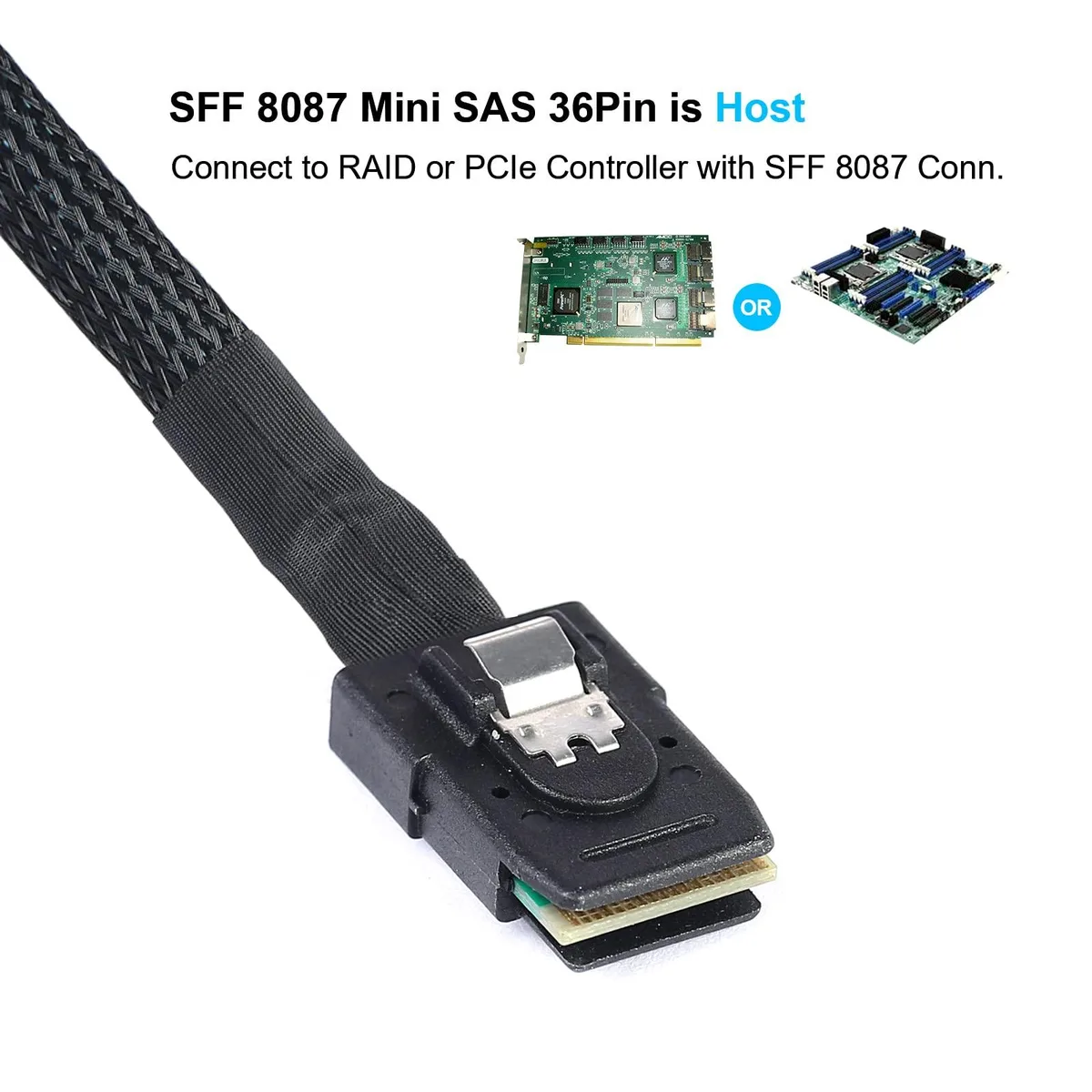

The SFF-8087 36-pin male plug with locking latch is designed to attach only to a SAS controller or HBA. Connecting this end to a backplane will prevent the link from working. Each of the four SATA targets supports up to 6 Gbit/s. The cable uses 30 AWG conductors and is labelled to simplify cable management.

Flexible 30 AWG wires

Thin, tangle-free construction lets the assembly bend around dense drive bays without stressing ports. Locking latches on both the Mini SAS and SATA ends secure the connection against vibration. The critical error is plugging the SFF-8087 host connector into a backplane instead of the controller; doing so breaks the signal path.

Highlights

  • Connect four drives with one 36-pin SFF-8087 connector
  • 90° right-angle SATA plugs fit tight backplane spaces
  • 6 Gbps per drive supports fast SSD and HDD throughput
  • 30 AWG thin copper conductors keep routing tidy
  • Locking latches on both ends secure the link against vibration

Specifications

BrandADCAUDX
ModelMini SAS-013
TypeMini-SAS Cables
ColorBlack+blue
Length1.6
Speed6 gigabits_per_second
ConductorCopper
FeaturesTangle Free

Questions about this item

How does the 6 Gbps per drive rating translate when four drives share one SFF-8087 link?

Each of the four SATA connectors can run at up to 6 Gbps; the Mini SAS 36-pin host side carries the aggregate bandwidth across all four lanes.

What does the SFF-8087 interface actually limit in a live build?

The SFF-8087 36-pin male plugs into a SAS HBA or RAID controller and caps each attached drive at 6 Gbps SATA speeds.

Will the 90-degree SATA ends clear a backplane in a 4U chassis?

The right-angle SATA connectors measure 90 degrees and use 30 AWG flexible cable, designed to route cleanly onto backplanes or drive cages.
