Two black and blue Mini-SAS SFF-8087 to four right-angle SATA breakout cables, 3.3FT each

BUCIER

BUCIER Mini-SAS SFF-8087 to 4 SATA 90° 3.3FT 2Pack

SKU CH-76ZV-9SSK2

Two Mini-SAS SFF-8087 cables break out to four 90-degree SATA connectors each for internal drive arrays

  • TypeMini-SAS Cables
  • ColorBlack/Blue
  • Length3.3
  • Connector DetailMini Sas Sff-8087 to Sata
  • Speed6 gigabytes_per_second
  • ConductorCopper
  • 2-pack gives spare cable for second array
  • 6 Gbps per drive keeps SSD/HDD at full speed
  • 90° SATA plugs fit tight backplane bays
  • Locking latches on both ends prevent accidental disconnects
  • 30 AWG conductors stay flexible for clean routing

2-pack Mini-SAS SFF-8087 breakout cables

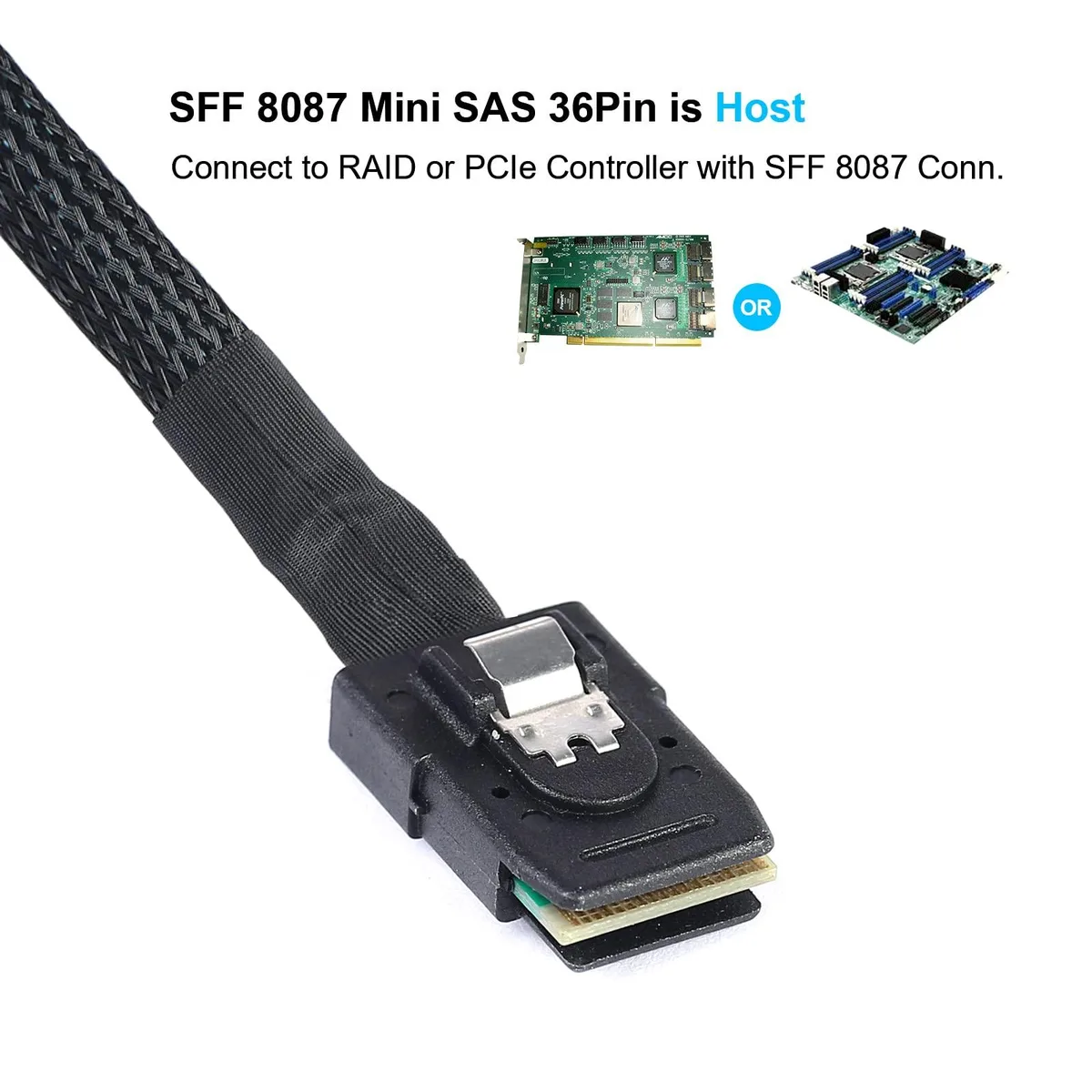

This 2-pack provides two Mini-SAS SFF-8087 to 4 SATA forward breakout cables. Each 3.3FT cable connects a SAS HBA or RAID controller to four SATA hard drives or SSDs. The 36-pin male SFF-8087 host connector features a locking latch for a secure link to the controller. Builders expanding internal storage with a SAS controller use these cables to reach drive bays or backplanes.

90-degree right-angle SATA connectors aid routing

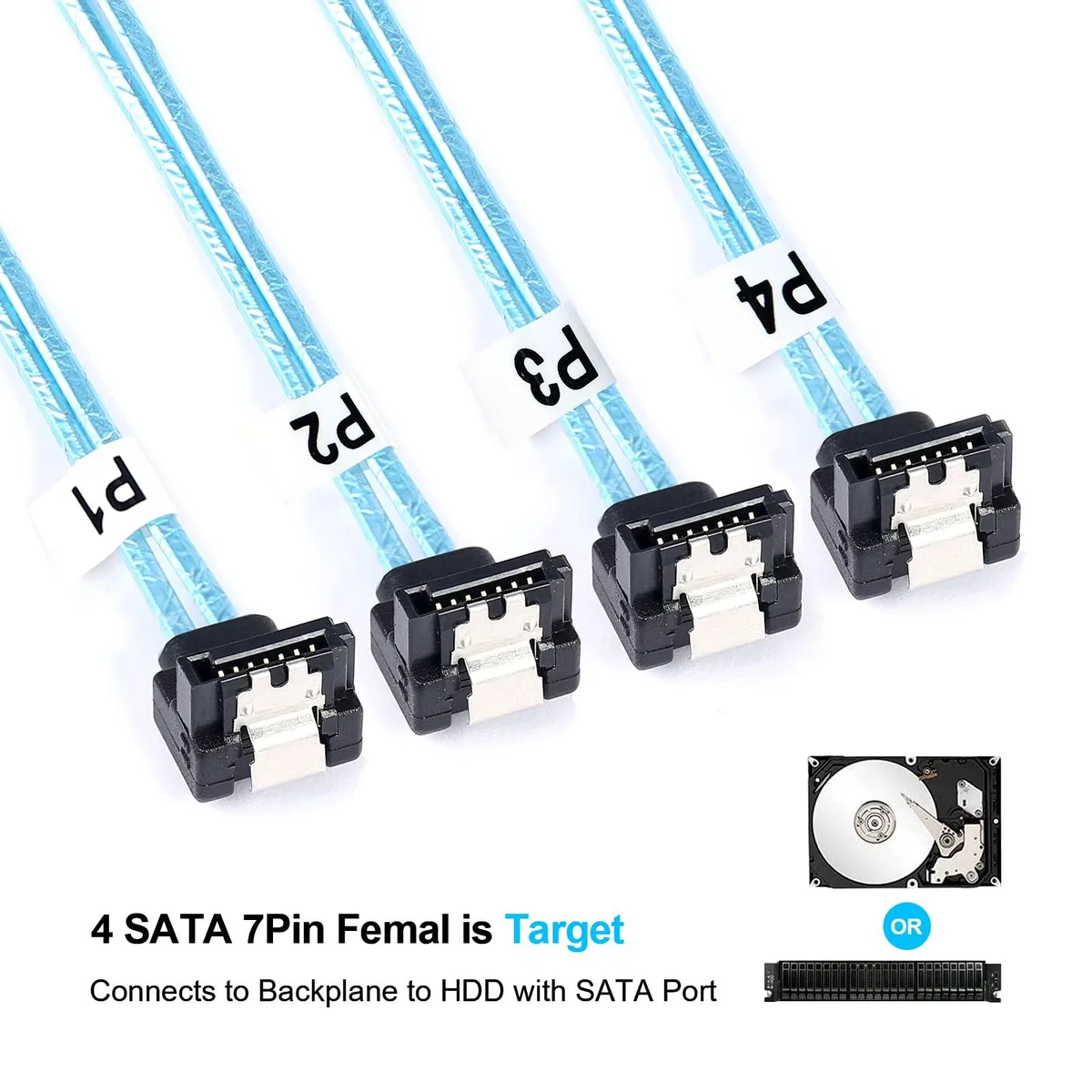

The four SATA 7-pin female target connectors are angled at 90 degrees to reduce strain in tight chassis. Thin 30 AWG copper conductors keep the assembly flexible for clean cable management. Both the Mini-SAS and SATA ends include locking latches to prevent accidental disconnection during operation. Data transfer runs at up to 6Gbps per drive across the SAS-to-SATA link.

Replaces loose straight cables in dense servers

The right-angle design solves clearance issues where straight SATA plugs block adjacent slots or side panels. It upgrades installations that previously used stiff cables without locking latches. The jump is worth it when four drives share a single SFF-8087 port and physical space behind the backplane is limited. Do not connect the SFF-8087 end directly to a backplane; the cable is wired for controller-to-drive topology only.

Highlights

  • 2-pack gives spare cable for second array
  • 6 Gbps per drive keeps SSD/HDD at full speed
  • 90° SATA plugs fit tight backplane bays
  • Locking latches on both ends prevent accidental disconnects
  • 30 AWG conductors stay flexible for clean routing

Specifications

BrandADCAUDX
ModelMini SAS-020
TypeMini-SAS Cables
ColorBlack/Blue
Length3.3
Connector DetailMini Sas Sff-8087 to Sata
Speed6 gigabytes_per_second
ConductorCopper
FeaturesSFF-8087 to SATA 90 Degree

Questions about this item

How do I connect the SFF-8087 end to my RAID controller without bending the cable?

Insert the 36-pin male connector straight into the controller's SFF-8087 port until the locking latch clicks; the 90-degree SATA ends then route flat along the drive bays.

When should I replace the cables if I run four drives continuously?

Inspect the 30 AWG conductors and locking latches annually; swap any cable showing cracked insulation, loose latches or intermittent drive drops.

What throughput ceiling will I hit first with four SATA drives on this breakout?

Each drive is limited to 6 Gbps by the SATA interface, so the aggregate ceiling appears at the SATA target side before the 12 Gbps host link saturates.
