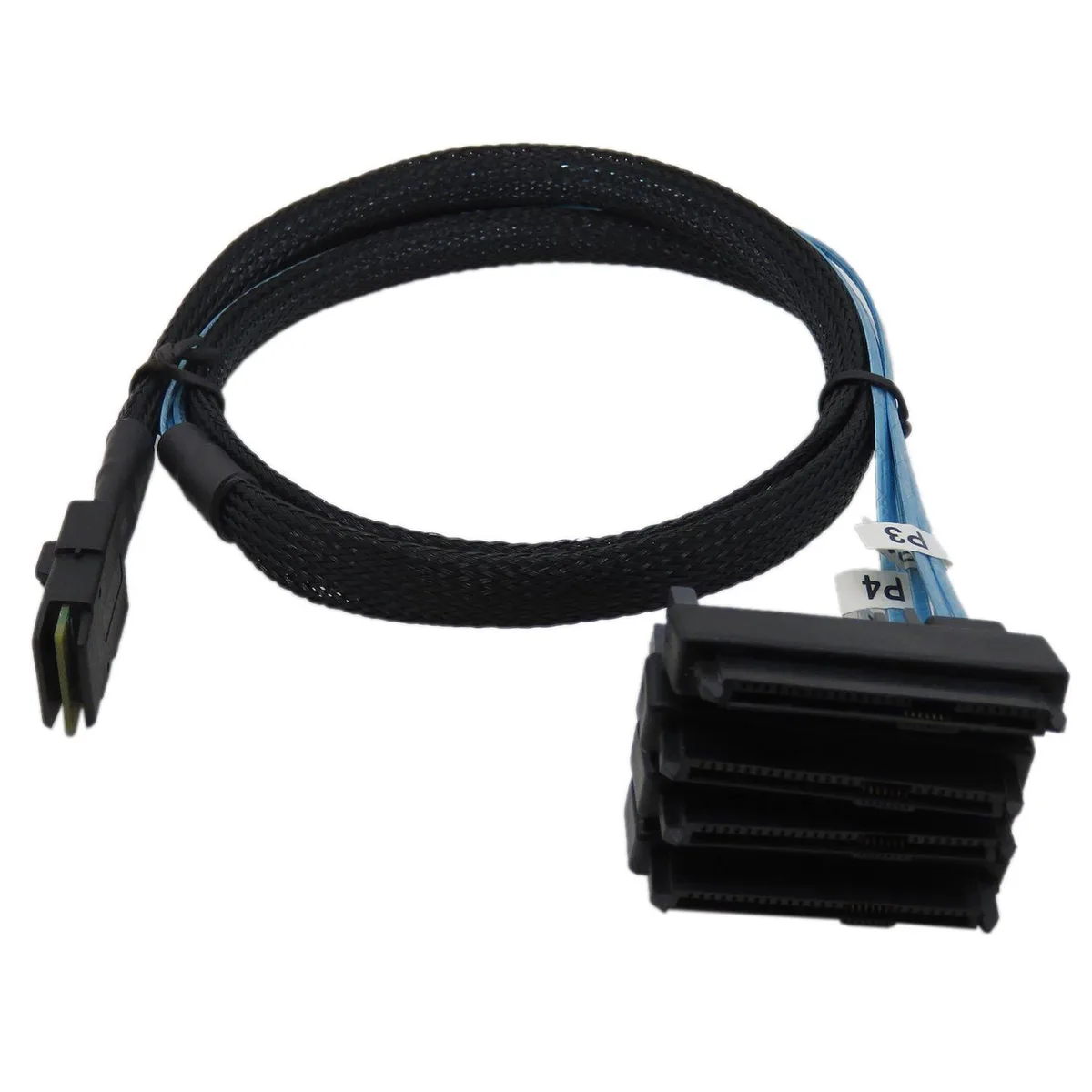

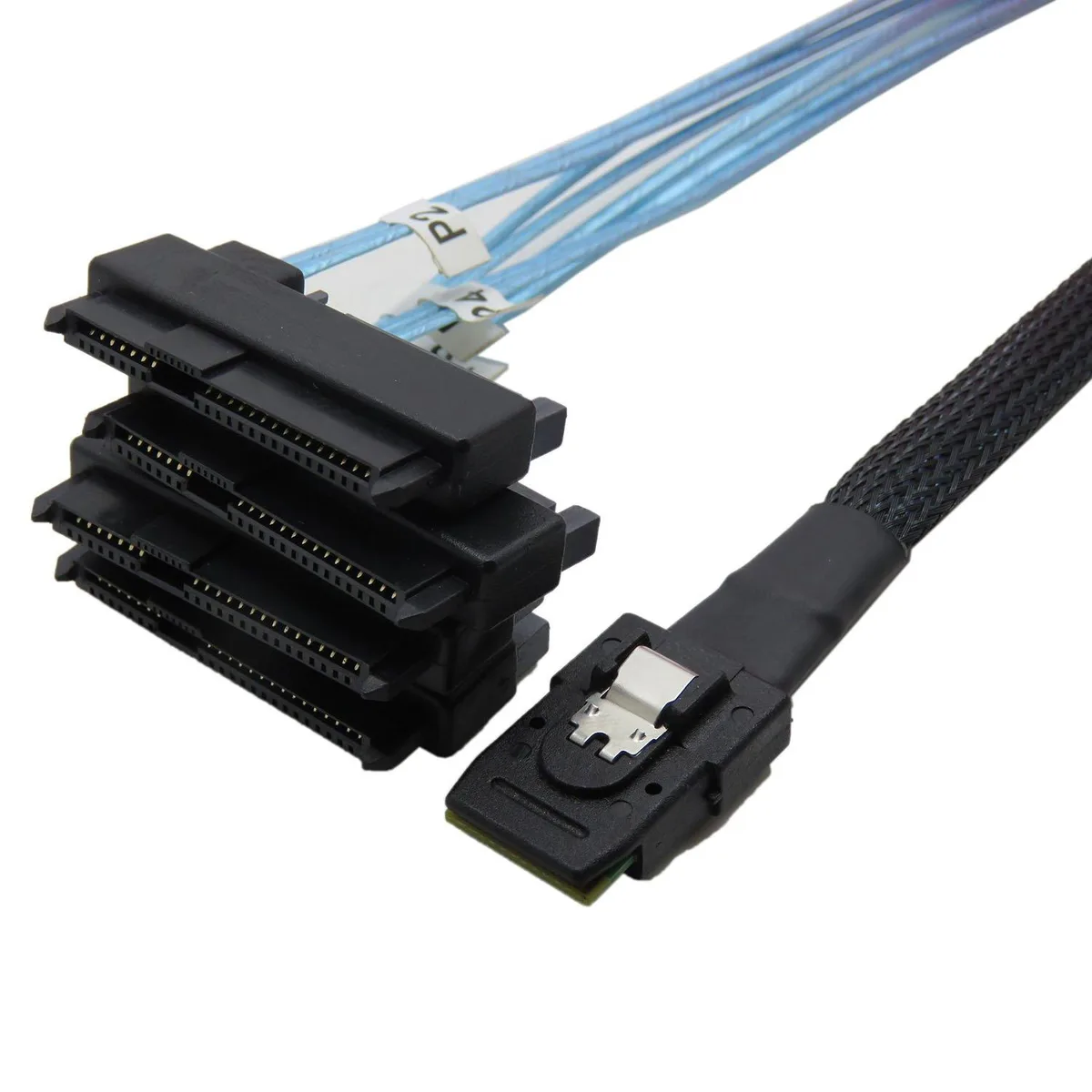

Mini SAS SFF-8087 cable branching to four SFF-8482 connectors with SATA power leads

BUCIER

BUCIER Mini SAS 36 SFF-8087 to 4 SFF-8482 SATA Power 1m

SKU CH-G8CT-8AWNG

Connects four SFF-8482 SAS drives with power to one SFF-8087 controller at 6 Gbps per channel over a one-metre copper cable

  • TypeSAS
  • Length39.37 inches
  • Connector DetailSff-8087 to Sff-8482 (Mini Sas)
  • Terminal GenderMale-to-Male
  • Speed6 gigabits_per_second
  • ConductorCopper
  • Connect four SAS drives via one controller port
  • Each SFF-8482 link carries data and SATA power
  • 6 Gbps per channel for high-throughput arrays
  • Tangle-free copper conductors keep the rack tidy
  • One-metre reach suits typical server chassis depths

Connects four SAS drives to one controller

This BUCIER cable joins four SFF-8482 SAS drives to a single SFF-8087 controller port. Each branch carries both data and power through a single 39.37 inch assembly. Copper conductors support 6Gbps per channel. The male-to-male design fits straight into backplanes and host adapters without adapters.

Suits servers and workstations with SFF-8087 ports

Installers populating hot-swap bays or direct-attached storage shelves will find the four-drive fan-out convenient. Builders whose backplanes use different SAS connector types, or who need external bulkhead connections, cannot use this assembly. The fixed one-metre length also limits routing options in larger chassis.

Four SFF-8482 ports with integrated power

The defining specification is the four SFF-8482 connectors, each delivering data and SATA power from one SFF-8087 link. This lets a single controller lane serve four drives without separate power cables. Verify that your backplane accepts SFF-8482 plugs before ordering.

Highlights

  • Connect four SAS drives via one controller port
  • Each SFF-8482 link carries data and SATA power
  • 6 Gbps per channel for high-throughput arrays
  • Tangle-free copper conductors keep the rack tidy
  • One-metre reach suits typical server chassis depths

Specifications

ModelG0501
TypeSAS
Length39.37 inches
Connector DetailSff-8087 to Sff-8482 (Mini Sas)
Terminal GenderMale-to-Male
Speed6 gigabits_per_second
ConductorCopper
FeaturesTangle Free

Questions about this item

How do I connect the Mini SAS SFF-8087 end to my controller, and what is the common mistake?

Plug the single SFF-8087 male connector straight into the controller port until the latch clicks; the step people miss is seating all four SFF-8482 drive ends firmly so each data and power lane engages.

What upkeep will this cable need over time?

No scheduled maintenance is required; if a SFF-8482 connector becomes loose or a latch breaks, replace the whole assembly because the copper conductors and moulded ends are not user-serviceable.

What limit appears first when all four drives run sustained transfers at 6Gbps?

The shared SFF-8087 uplink aggregates four 6Gbps channels, so controller or backplane bandwidth becomes the bottleneck before the cable’s own copper conductors saturate.
