Small green circuit board with 24-pin ATX and 4-pin Molex connectors, 7.00x3.00cm

BUCIER

BUCIER Dual PSU Adapter 24-pin ATX Molex 7.00x3.00cm

SKU CH-CT60-WPQG3

Connects a secondary PSU via 24-pin ATX and primary PSU via 4-pin Molex to power mining rigs or high-load PCs

  • ColorMining Rig Addotional Power Connector
  • Add extra power to a mining rig without cutting or soldering wires

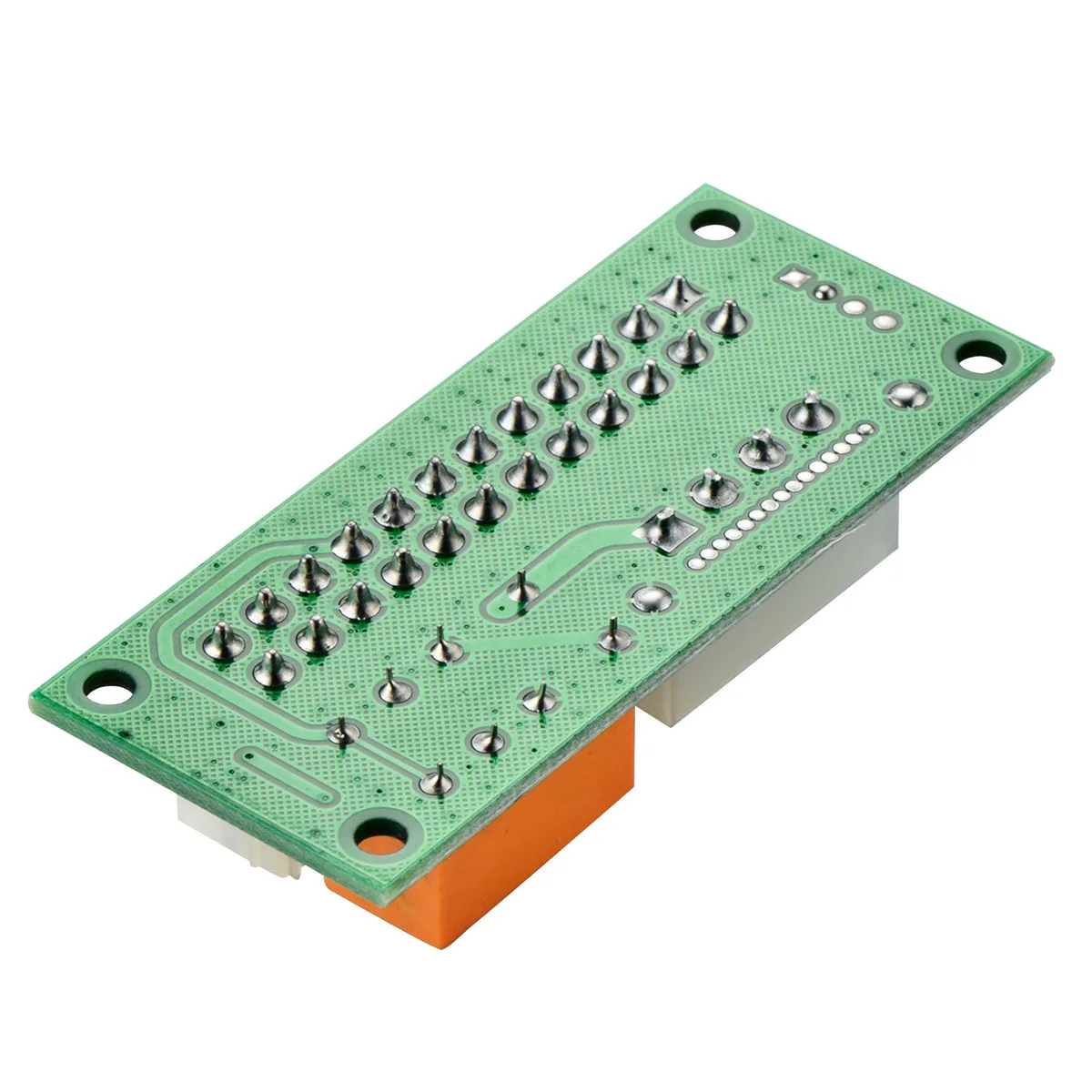

  • Slim 7.00 x 3.00 cm board with pre-drilled holes fits tight spaces
  • Solid-state PCB distributes load without generating extra heat
  • 4-pin Molex and 24-pin ATX connectors enable true plug-and-play start-up
  • Secondary PSU turns on automatically when primary unit powers up

Dual PSU Adapter for Mining Rigs

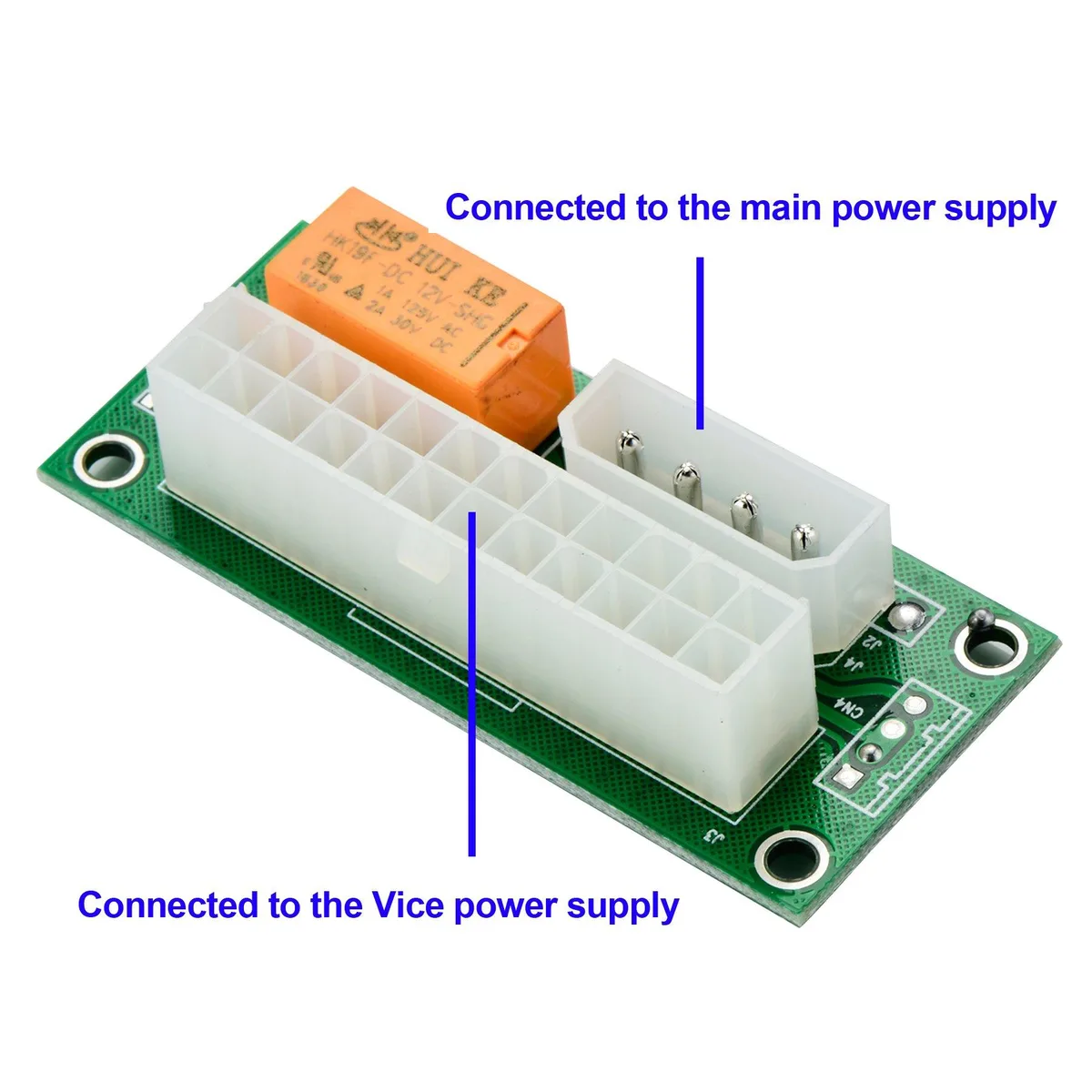

The BUCIER adapter connects a primary and a secondary power supply so both units switch on together. It uses a 4-pin Molex lead from the main PSU and a 24-pin ATX plug from the second PSU. The board is solid-state and generates no heat during operation. It targets builders who need extra GPU or drive power without rewiring.

Check PSU Connectors and Mounting Space

Verify that your primary supply has a free 4-pin Molex output and that the secondary supply provides a standard 24-pin ATX connector. The adapter board measures 7.00 by 3.00 centimetres (2.76 by 1.18 inches) and includes pre-drilled holes for fastening. Ensure the chosen mounting point can accommodate those dimensions and that cable reach is sufficient for both supplies.

Replaces Manual Jumper or Spliced Wiring

This unit removes the need to short the green wire on the secondary PSU or to solder custom cables. The jump is worthwhile when a single supply cannot deliver enough combined current for multiple graphics cards, drives or fans. It is not suited for builds that run from one adequately rated power supply or for systems lacking a Molex lead on the primary unit.

Highlights

  • Add extra power to a mining rig without cutting or soldering wires
  • Slim 7.00 x 3.00 cm board with pre-drilled holes fits tight spaces
  • Solid-state PCB distributes load without generating extra heat
  • 4-pin Molex and 24-pin ATX connectors enable true plug-and-play start-up
  • Secondary PSU turns on automatically when primary unit powers up

Specifications

BrandBUCIER
ColorMining Rig Addotional Power Connector

Questions about this item

What connectors come in the box and do I need any extra cables?

The package includes one dual PSU adapter board with a 24-pin ATX socket and a 4-pin Molex plug. You must supply a Molex lead from the primary PSU and a 24-pin ATX lead from the secondary PSU.

Which version should I choose for a standard mining rig?

Only one version is offered: a 7.00×3.00 cm board with a 24-pin ATX and 4-pin Molex interface. Select this model if your secondary PSU uses a 24-pin ATX connector and your primary PSU has a spare Molex output.

What does the 24-pin ATX connection actually do once installed?

When the primary PSU powers on, the adapter shorts the green wire on the secondary 24-pin ATX connector, turning that supply on simultaneously so both units share the load for GPUs, drives and fans.
