Black rectangular HDMI matrix switch with front panel buttons and indicator LEDs

BUCIER

BUCIER 4x2 HDMI Matrix Switch, Optical & 3.5mm Audio, 4K 30Hz, IR Remote

SKU CH-YFFP-0PEJ9

Routes four HDMI sources to two displays at up to 3840×2160/30Hz with optical and 3.5 mm audio extraction

  • TypeHDMI
  • Changer TypeHDMI
  • ColorBlack
  • Ports6
  • Cable Length1
  • Input Connector6
  • 4 HDMI sources to 2 displays with independent audio extraction
  • 4K 30 Hz video plus 1080p 3D and 12-bit deep colour
  • HDMI 1.4b and HDCP 1.4 compliant with 3.4 Gbps bandwidth
  • Optical and 3.5 mm outputs for LPCM Dolby DTS 5.1 audio
  • IR remote and front-panel buttons for instant input switching

4×2 HDMI matrix for four sources

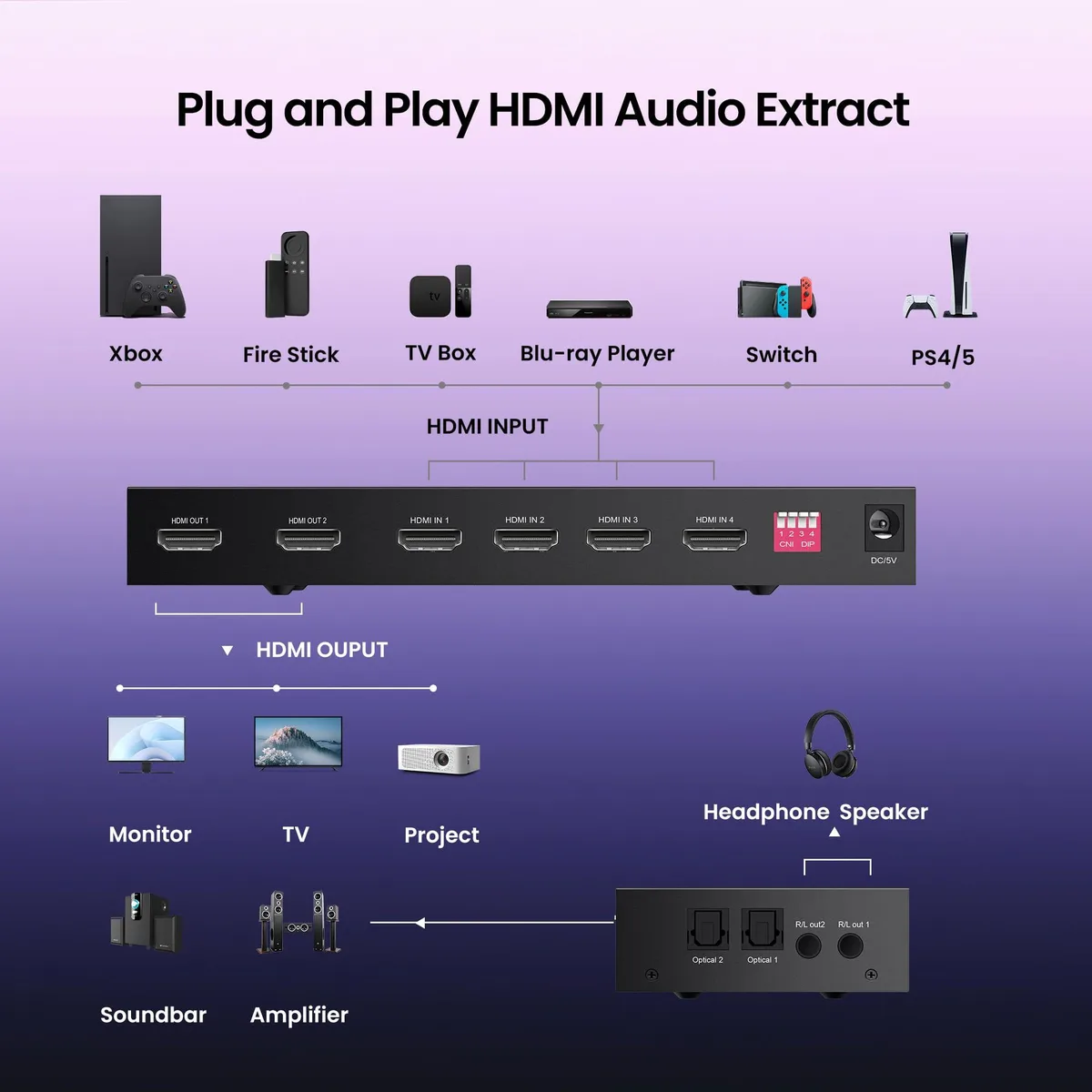

This BUCIER matrix switch connects up to four HDMI sources to two displays, letting you route any input to either output independently. It supports resolutions up to 3840×2160 at 30 Hz with 8, 10 or 12-bit deep colour and 3D video formats. HDMI 1.4b and HDCP 1.4 compliance ensures compatibility with common Blu-ray players, game consoles and media streamers. The unit includes an IR remote and front-panel buttons for quick switching.

Installations needing audio breakout

The built-in SPDIF optical and 3.5 mm analogue outputs extract audio from any selected source, supporting LPCM, Dolby and DTS 5.1 channels simultaneously with the HDMI signal. EDID management via a hardware selector helps maintain stable handshakes across mixed displays. Buyers who require HDMI 2.0 bandwidth for 4K 60 Hz or HDR metadata pass-through should look elsewhere, as will anyone needing more than two simultaneous output zones.

30 Hz 4K ceiling

The maximum supported video timing is 3840×2160 at 30 Hz over HDMI 1.4b with a 3.4 Gbps per lane data rate and 340 MHz TMDS clock. Input cables up to 10 metres and output cables up to 15 metres (AWG26) are specified for reliable operation. If your source material or display demands 4K 60 Hz, 4:4:4 chroma at 4K, or variable refresh rate, this matrix will not meet that requirement.

Highlights

  • 4 HDMI sources to 2 displays with independent audio extraction
  • 4K 30 Hz video plus 1080p 3D and 12-bit deep colour
  • HDMI 1.4b and HDCP 1.4 compliant with 3.4 Gbps bandwidth
  • Optical and 3.5 mm outputs for LPCM Dolby DTS 5.1 audio
  • IR remote and front-panel buttons for instant input switching

Specifications

ModelYYG-E-1
Part NumberYYG-E-1
TypeHDMI
Changer TypeHDMI
ColorBlack
Ports6
Cable Length1
Input Connector6
Output ConnectorFemale
Maximum ResolutionsHDMI Matrix Switch 4X2
Weight0.549 kilograms

Questions about this item

How do I install the BUCIER 4x2 HDMI matrix and what step is often missed?

Connect up to four HDMI sources to the inputs and two displays to the outputs using cables up to 10 m in and 15 m out, plug in the 5 V power adapter, then set the EDID selector to match your displays — skipping the EDID setting is the step most people forget.

What maintenance or replacement will the BUCIER 4x2 HDMI matrix need later?

The IR remote requires a AAA battery that will need replacing when the range drops; the main unit has no user-serviceable parts and no fan or filter to clean.

What limit appears first when the BUCIER 4x2 HDMI matrix runs continuously?

The HDMI 1.4b bandwidth caps video at 3840×2160 at 30 Hz with 8/10/12-bit colour, so sustained 4K 60 Hz or higher refresh rates are not supported.
