Gray rectangular HDMI video wall controller with front ports and IR receiver

BUCIER

BUCIER 2x2 HDMI Video Wall Controller 1080P@60Hz RS232 180° Gray

SKU CH-E6C8-JP1HG

Distributes one HDMI or DVI source across four displays in eight layout modes up to 1080P@60Hz with 180° rotation, edge masking, IR remote and RS-232 control

  • TypeHDMI
  • ColorGray
  • Cable Length1
  • Output ConnectorFemale-to-Female
  • Weight2.62 lb
  • Distributes one HDMI or DVI source to four screens simultaneously
  • Supports 1080P output at 60 Hz with HDCP 1.4 compliance

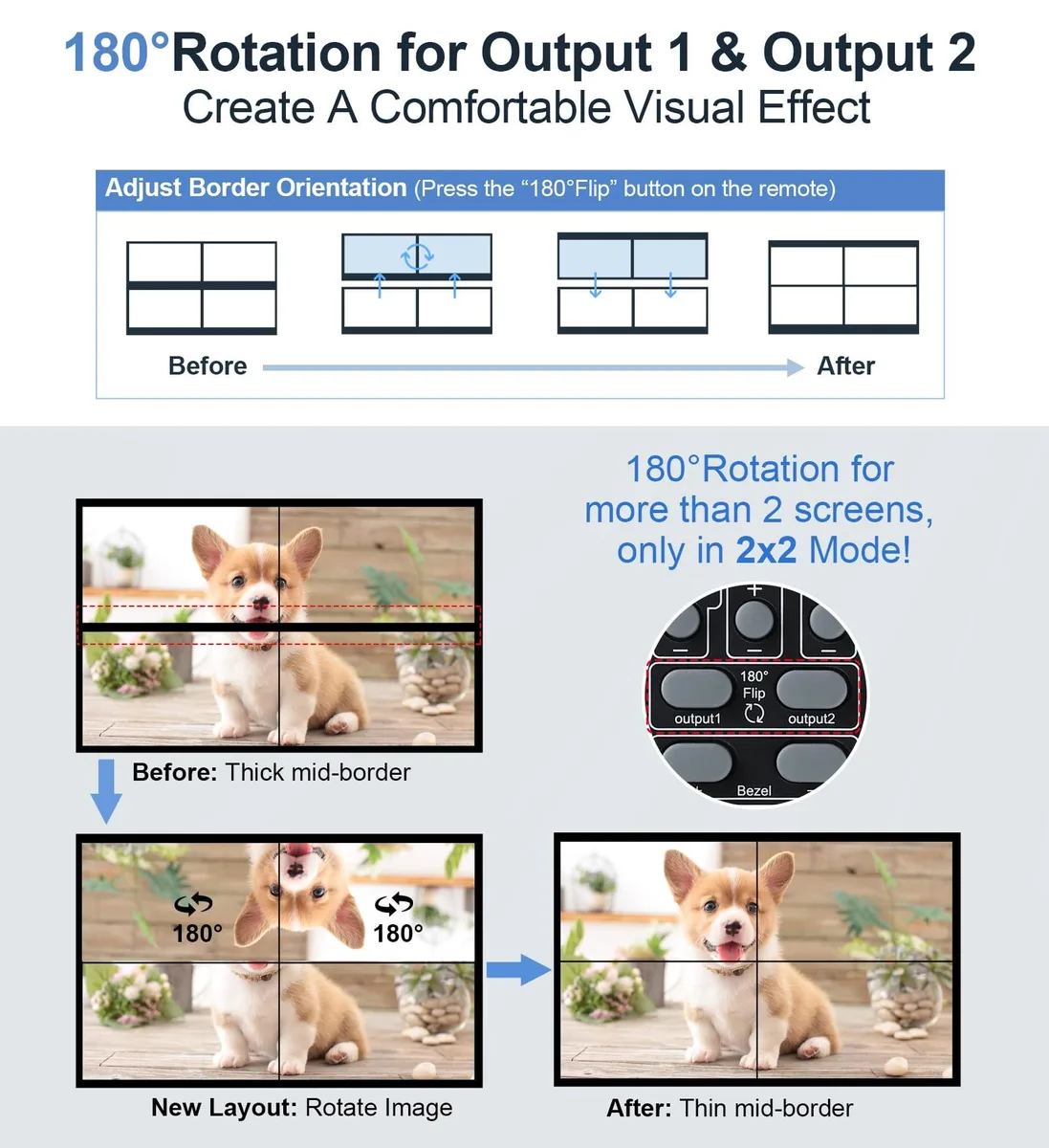

  • 180-degree rotation on two outputs reduces bezel gaps in 2x2 mode
  • Eight display modes selectable via IR remote or RS232 control
  • Gold-plated connectors and 3.5 mm audio output for external speakers

Video wall controller for multi-screen signage

The BUCIER 2x2 HDMI video wall controller distributes a single HDMI or DVI source to four HDMI displays. It builds a unified video wall from LCD splicing screens or digital signage panels. Professional video wall displays are recommended rather than consumer televisions. The unit is designed for installers who need a compact, driver-free processor for fixed installations.

Sustained operation with passive cooling

The controller runs continuously without active fans, relying on quick heat absorption and dissipation for durability. Gold-plated connectors reduce transmission loss during long sessions. HDCP 1.4 and HDMI 1.4 compliance ensures stable handshakes at 1080p60 output. Input signals up to 4K30 are accepted, while each output remains locked to 1920x1080 at 60 Hz.

Plug-and-play setup with IR and RS232

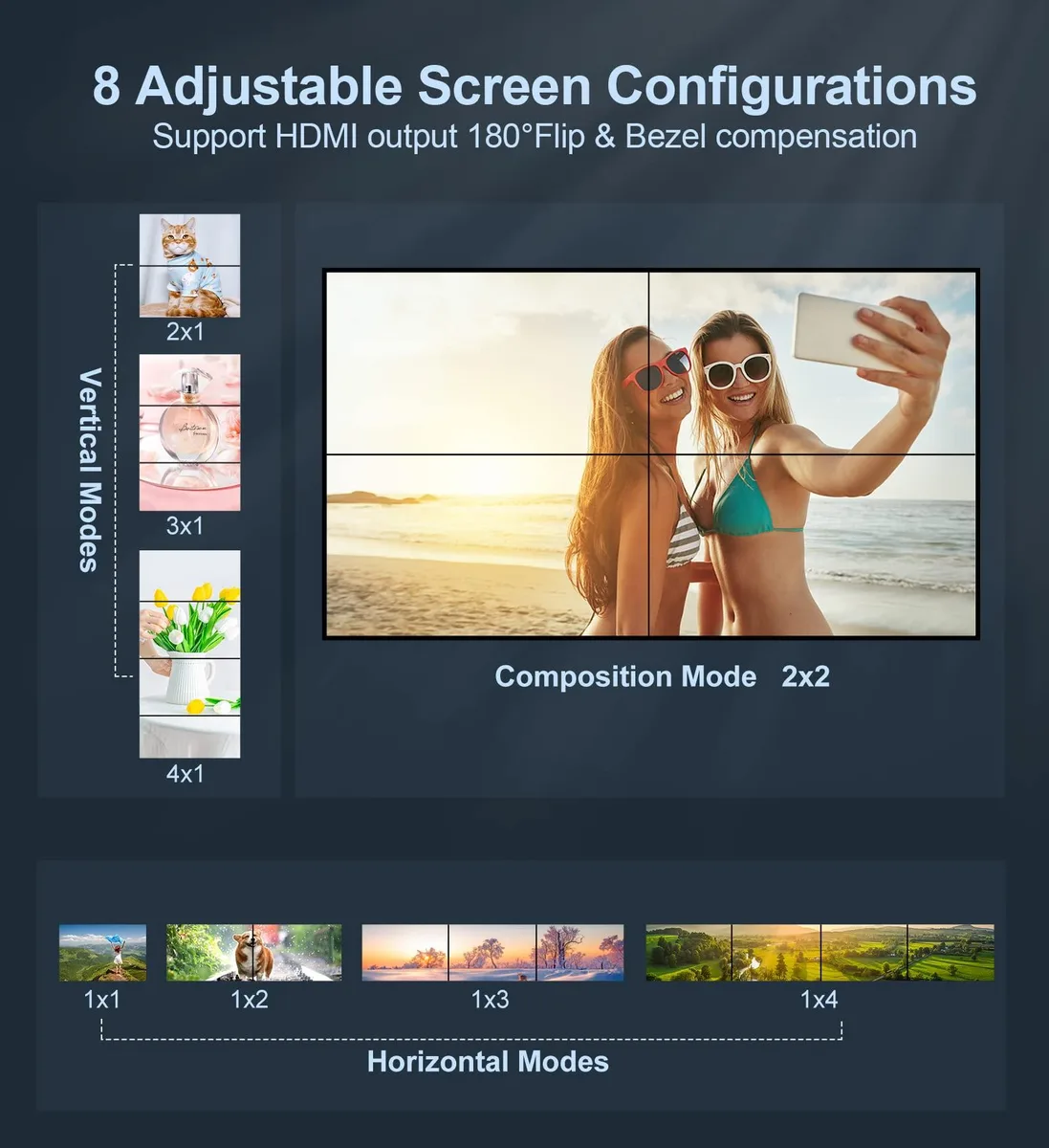

Installation requires only the included 12 V power adapter and the supplied remote control. Eight display modes including 2x2, 1x3 and 4x1 are selectable without drivers. The 180 degree rotation function works exclusively in 2x2 mode at 1080p60. Edge masking aligns bezels across screens. A 3.5 mm stereo port feeds external audio. RS232 enables advanced remote management.

Highlights

  • Distributes one HDMI or DVI source to four screens simultaneously
  • Supports 1080P output at 60 Hz with HDCP 1.4 compliance
  • 180-degree rotation on two outputs reduces bezel gaps in 2x2 mode
  • Eight display modes selectable via IR remote or RS232 control
  • Gold-plated connectors and 3.5 mm audio output for external speakers

Specifications

BrandBUCIER
TypeHDMI
ColorGray
Cable Length1
Output ConnectorFemale-to-Female
Weight2.62 lb

Questions about this item

How much heat does the BUCIER 2x2 HDMI Video Wall Controller generate when running continuously?

The unit uses quick heat absorption and dissipation for durability during all-day operation, and it ships with a 12 V power adapter.

What cables and displays must I already own to use the BUCIER controller?

You need one HDMI or DVI source, up to four HDMI displays, HDMI cables for each connection, and optionally a 3.5 mm audio cable for external speakers.

Will the BUCIER controller work with older 1080p monitors alongside newer 4K screens?

Yes — set all screens to 1920x1080p@60 Hz; the HDMI and DVI inputs accept 4K@30 Hz sources while outputs are fixed at 1080p@60 Hz.
