Two black and blue Mini-SAS SFF-8087 to four SFF-8482 breakout cables with SATA power adapters

BUCIER

BUCIER 2Pack Mini-SAS SFF-8087 to 4×SFF-8482 SAS Cable 3.3FT

SKU CH-NEMZ-HJQJY

Two-pack 3.3 ft Mini-SAS SFF-8087 to four SFF-8482 breakout cables with SATA power adapters, 6 Gb/s per drive

  • TypeMini-SAS Cables
  • ColorBlack/Blue
  • Length3.3
  • Connector Number36
  • Speed6 gigabits_per_second
  • SpecificationsMini-SAS Cables
  • Connect RAID controller to four drives via 36-pin SFF-8087 host connector
  • Each SFF-8482 target includes integrated SATA 7-pin data and 15-pin power adapter
  • Supports 6 Gb/s per drive for high-throughput storage arrays
  • 30 AWG thin cable keeps routing tidy inside dense chassis
  • Two-cable pack lets you populate multiple controller ports at once

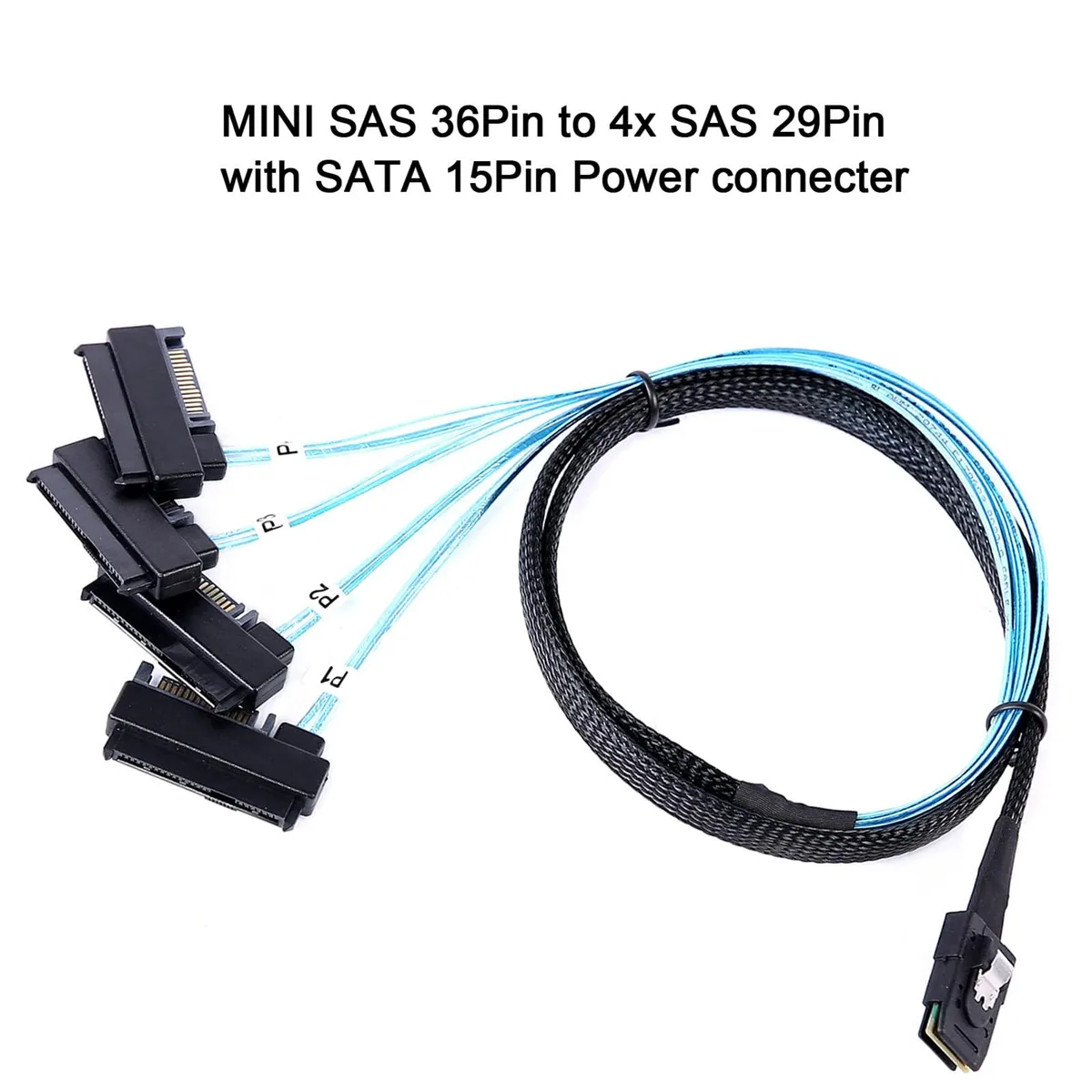

Host-side connector and target breakout

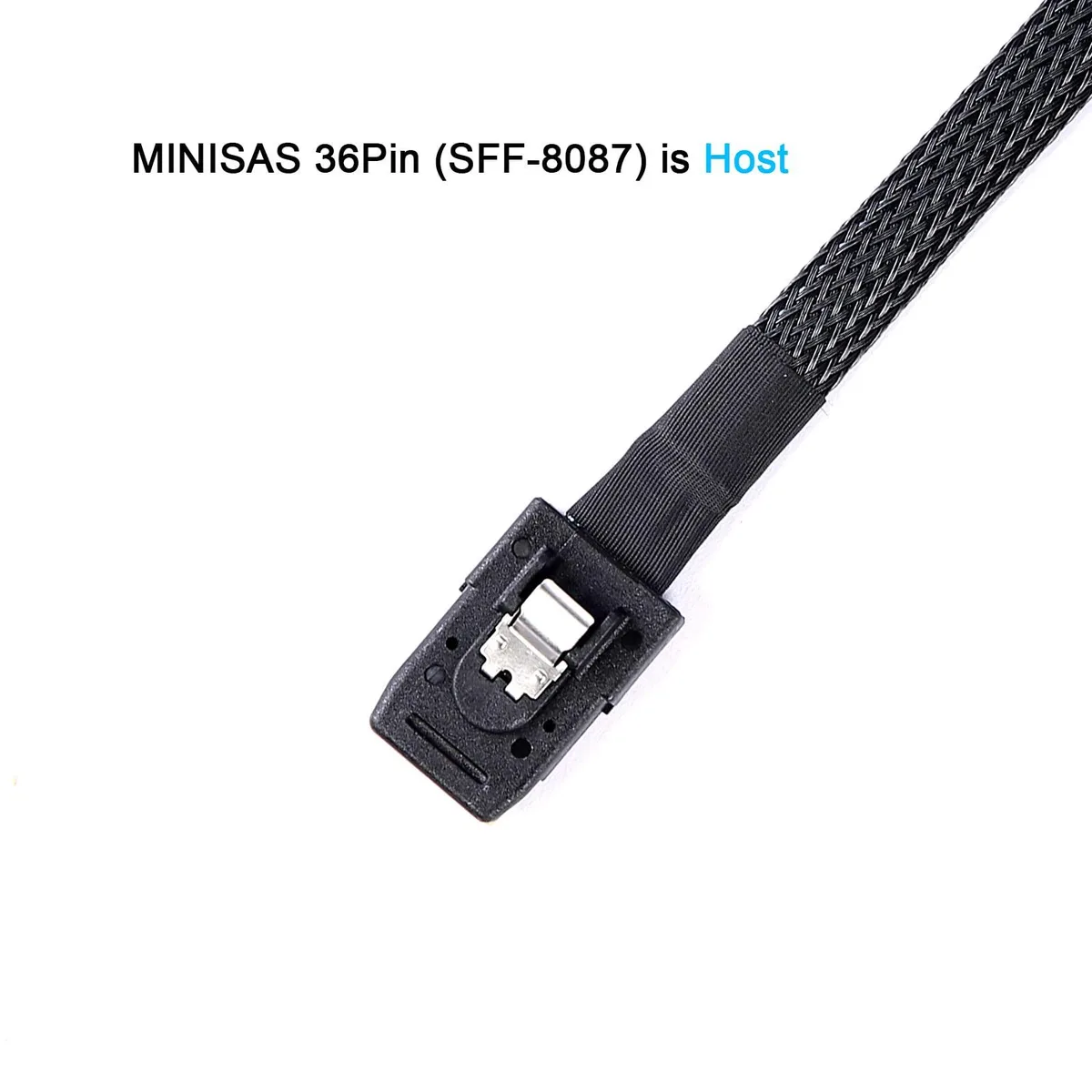

This two-pack provides Mini-SAS SFF-8087 male connectors that attach to a RAID controller or motherboard port. Each cable splits into four SFF-8482 targets with integrated SATA power adapters for direct drive attachment.

Build integration and cabling

The 3.3 FT length suits typical chassis routing between a controller card and a backplane or drive cage. A separate SATA power lead is required for every SFF-8482 connector to supply the 15-pin power portion of the adapter.

Signal rate and power considerations

Data transfer operates at up to 6 Gbps per drive across the 36-pin interface. The cables use 30 AWG conductors for flexibility and carry no middle SAS pin, so they must not be connected to a backplane SFF-8087 port.

Highlights

  • Connect RAID controller to four drives via 36-pin SFF-8087 host connector
  • Each SFF-8482 target includes integrated SATA 7-pin data and 15-pin power adapter
  • Supports 6 Gb/s per drive for high-throughput storage arrays
  • 30 AWG thin cable keeps routing tidy inside dense chassis
  • Two-cable pack lets you populate multiple controller ports at once

Specifications

BrandADCAUDX
ModelSFF-8087 to sas 1M
TypeMini-SAS Cables
ColorBlack/Blue
Length3.3
Connector Number36
Speed6 gigabits_per_second
SpecificationsMini-SAS Cables
ShieldingSFF-8087 to SAS 1M
FeaturesSFF-8087 to SAS 1M

Questions about this item

What limits the data rate when the cable runs at full 6 Gbps per drive for hours?

Each SFF-8482 leg tops out at 6 Gbps and the 30 AWG conductors set the practical ceiling for sustained throughput.

How warm does the 3.3 ft assembly get and does it need extra cooling during all-day operation?

The thin 30 AWG wires stay at near-ambient temperature; no active cooling is required for continuous use.

Which power connectors must already be free on my PSU to run the four SFF-8482 adapters?

Four standard SATA 15-pin power plugs — one for each breakout — are needed from your power supply.
