Two black and blue Mini SAS SFF-8087 to four SATA breakout cables, 0.5m each

BUCIER

BUCIER 2Pack Mini SAS SFF-8087 to 4 SATA 0.5m Cable

SKU CH-B01S-0MC91

A two-pack of 0.5 m Mini SAS SFF-8087 to four SATA breakout cables with locking latches for secure controller-to-drive connections

  • TypeMini-SAS Cables
  • ColorBlack+Blue
  • Length1.6
  • Speed6 gigabits_per_second
  • ConductorCopper
  • FeaturesMINI SAS SFF-8087 to SATA 0.5m
  • Connects one controller to four drives

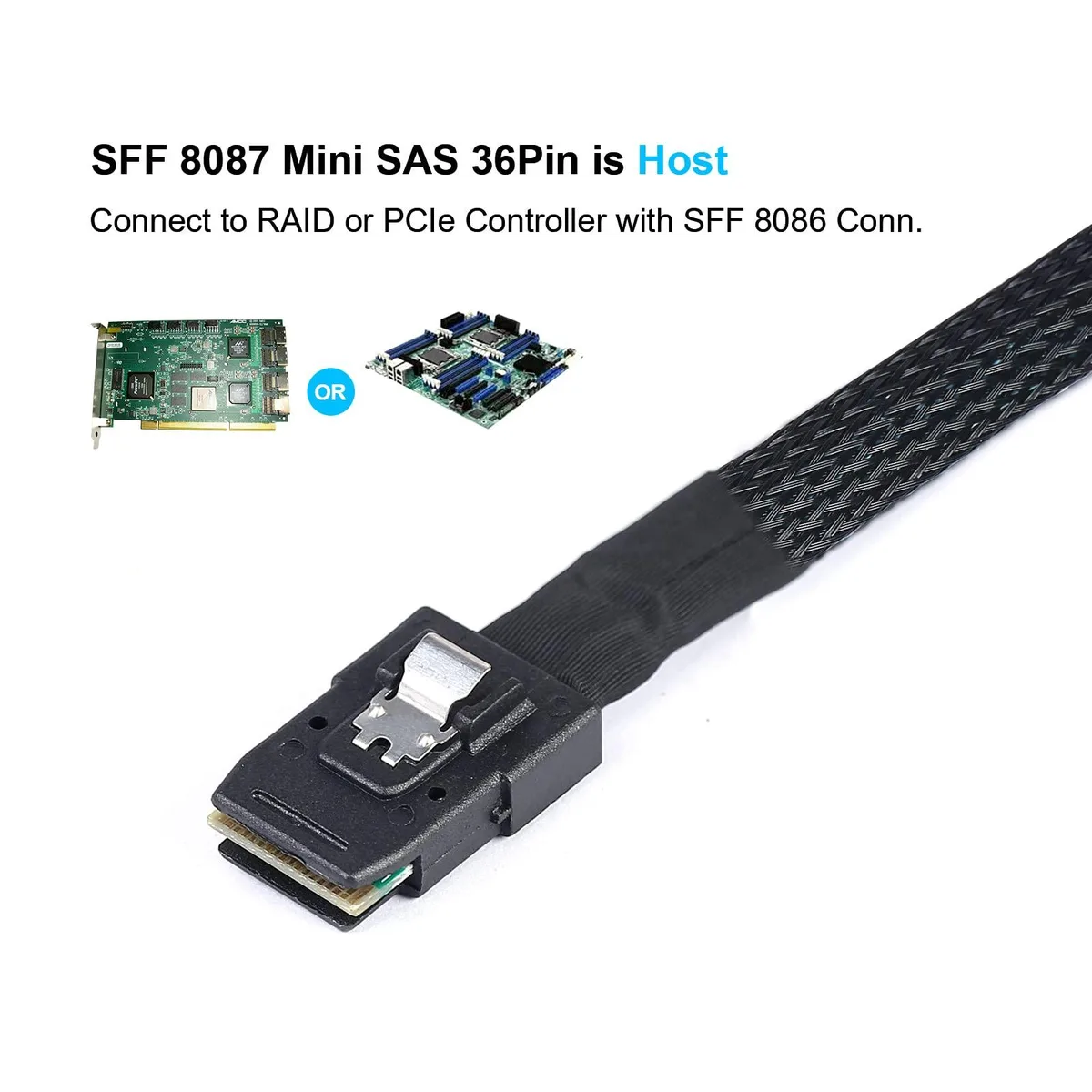

  • SFF-8087 36-pin male plugs into HBA

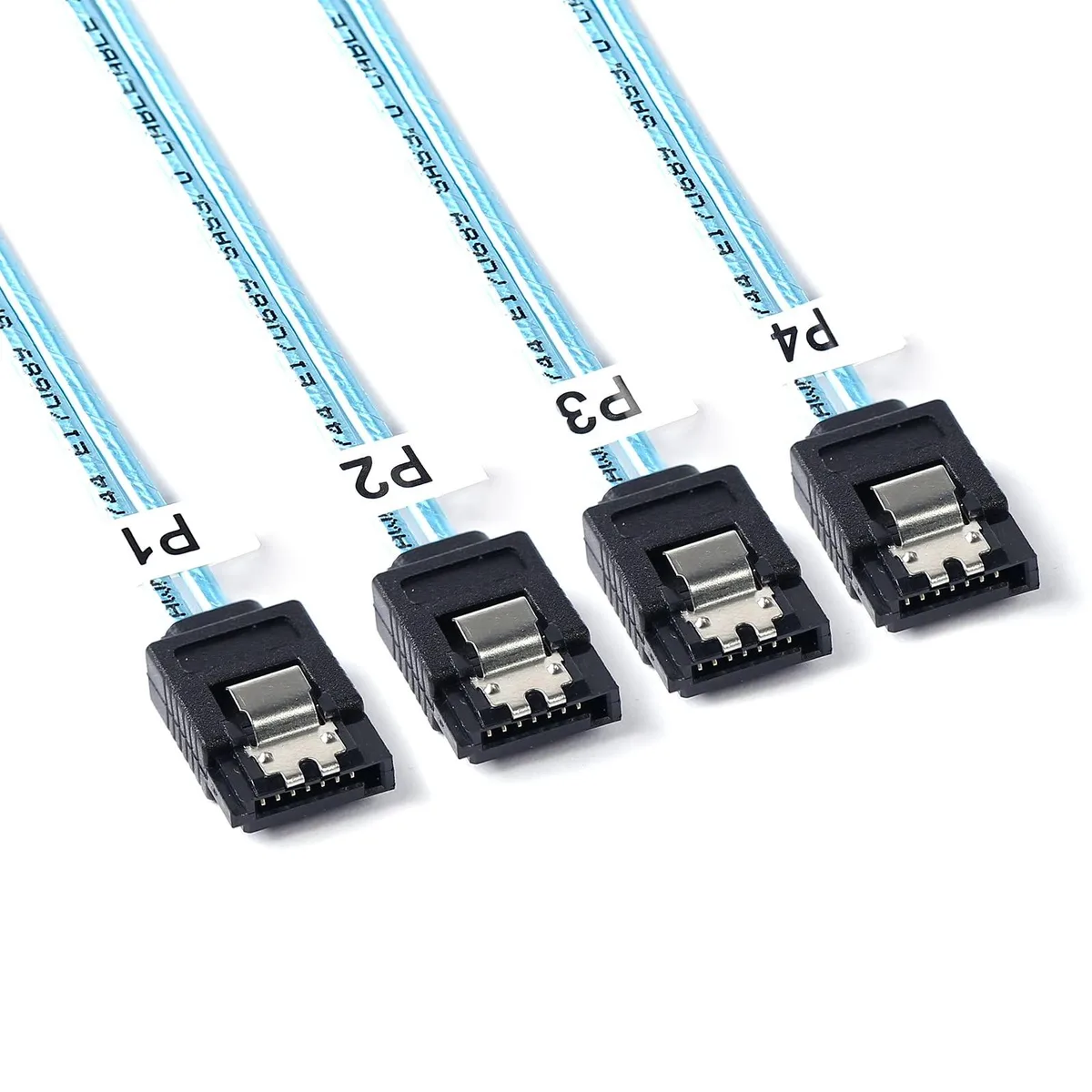

  • Four SATA 7-pin female ends for HDDs
  • 6 Gb/s per drive with copper conductors
  • 5 m length using 30 AWG flexible wire

Two-Pack Mini SAS Breakout Cables

This two-pack provides a Mini SAS SFF-8087 male connector on the host side and four SATA 7-pin female connectors on the target side. Each cable measures 0.5 metres (1.6 ft) and supports 6 Gbps per drive. The forward breakout design connects a SAS RAID controller or HBA directly to four hard drives or SSDs for storage expansion.

Straightforward Internal Routing

The 30 AWG conductors are thin and flexible, making routing inside a chassis simple. Both ends feature locking latches for a secure connection that resists vibration. A critical installation note: the SFF-8087 plug must go into the controller or motherboard header; connecting it to a backplane will prevent the link from working. Labels on the SATA tails help identify each drive port.

Verify Controller and Drive Compatibility

Before ordering, confirm that your host adapter or motherboard presents an SFF-8087 36-pin male port wired for forward breakout. The target drives must use standard SATA data connectors. This cable does not carry power, so separate SATA power cables from your PSU are required for each drive. Ensure the 0.5 m length reaches your drive locations without strain.

Highlights

  • Connects one controller to four drives
  • SFF-8087 36-pin male plugs into HBA
  • Four SATA 7-pin female ends for HDDs
  • 6 Gb/s per drive with copper conductors
  • 5 m length using 30 AWG flexible wire

Specifications

BrandADCAUDX
ModelMINISAS-001
TypeMini-SAS Cables
ColorBlack+Blue
Length1.6
Speed6 gigabits_per_second
ConductorCopper
FeaturesMINI SAS SFF-8087 to SATA 0.5m

Questions about this item

How can I verify the Mini SAS SFF-8087 to 4 SATA cable is working after connecting it to my controller and drives?

After connecting the SFF-8087 male end to your SAS HBA or RAID controller and the four SATA 7-pin female ends to your drives, the system BIOS or operating system should detect each attached drive at up to 6 Gbps per drive.

What comes in the box and is anything else required to use the cable?

The pack contains two Mini SAS SFF-8087 to 4 SATA forward breakout cables, each 0.5 m long with locking latches on both connectors. No additional parts are required for a standard internal connection between a controller and up to four SATA drives.

Which version should I choose if I need a 12 Gbps SAS 3 link to the controller but 6 Gbps SATA III to the drives?

This cable is built as a SAS 3 36-pin SFF-8087 male to four SATA III 7-pin female breakout, supporting 12 Gbps on the controller side and 6 Gbps per drive on the SATA side.
