BUCIER
BUCIER 2-Pack 90° Down-Right Angle Type-E USB 3.2 Front Panel Internal Connector
Two-pack of 90-degree down-angled Type-E adapters reroutes front-panel USB 3.2 headers for easier case installation
- Type19 pin to type e 3.1
- Color2 Pack
- Cable Lengthinches
- Changer Type19 pin to type e 3.1
- Specifications19 pin to type e 3.1 Adapters device
- Connector A19 pin to type e 3.1
- Two-pack gives a spare for a second build
- Down-right 90° angle routes cable neatly in tight cases
- 19-pin to Type-E fits standard 20-pin motherboard headers
- 10 Gbps bandwidth supports USB 3.2 Gen 2 speeds
- Plug-and-play with no driver installation required

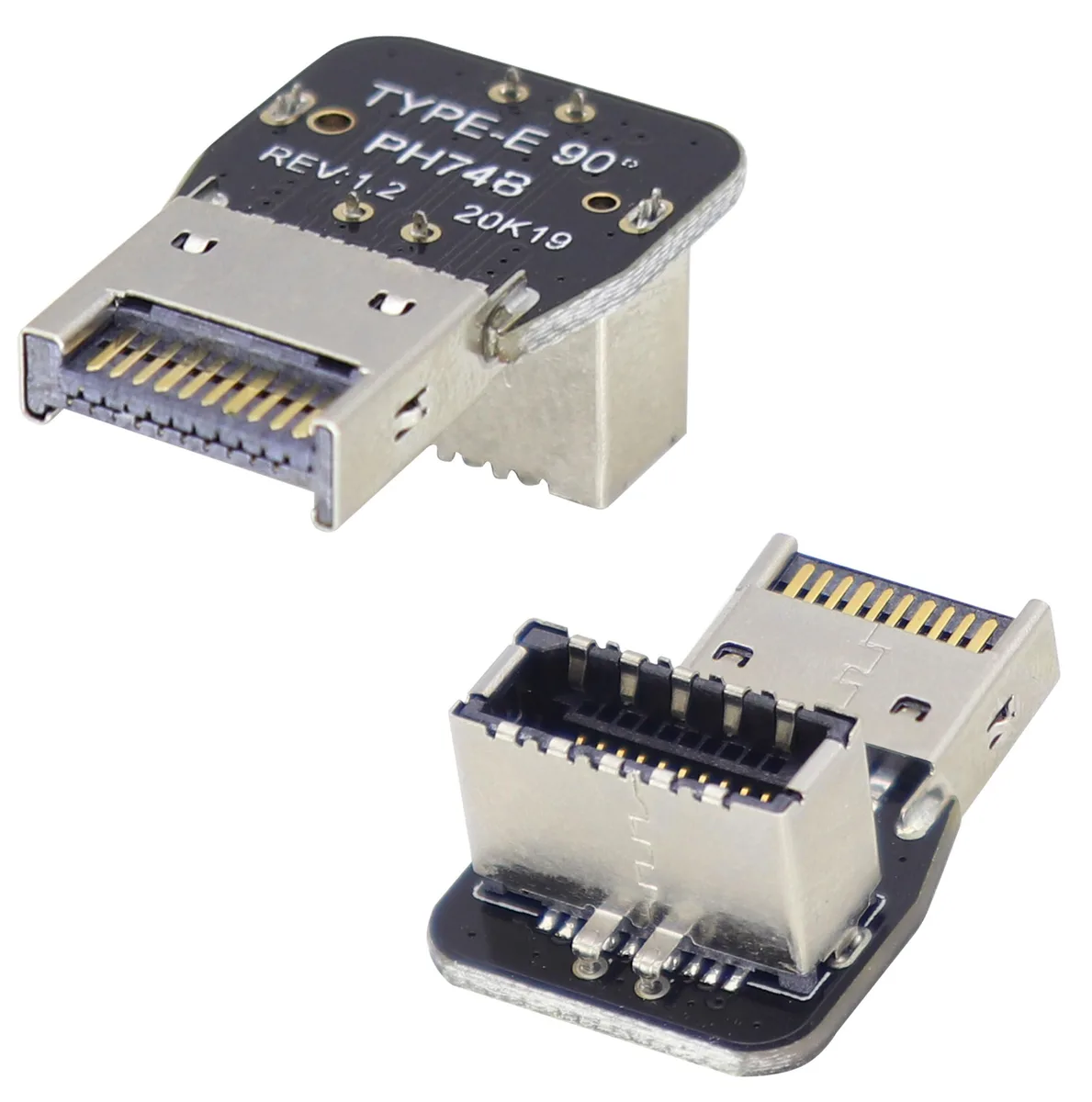

Two-Pack 90° Down-Right Type-E Adapter

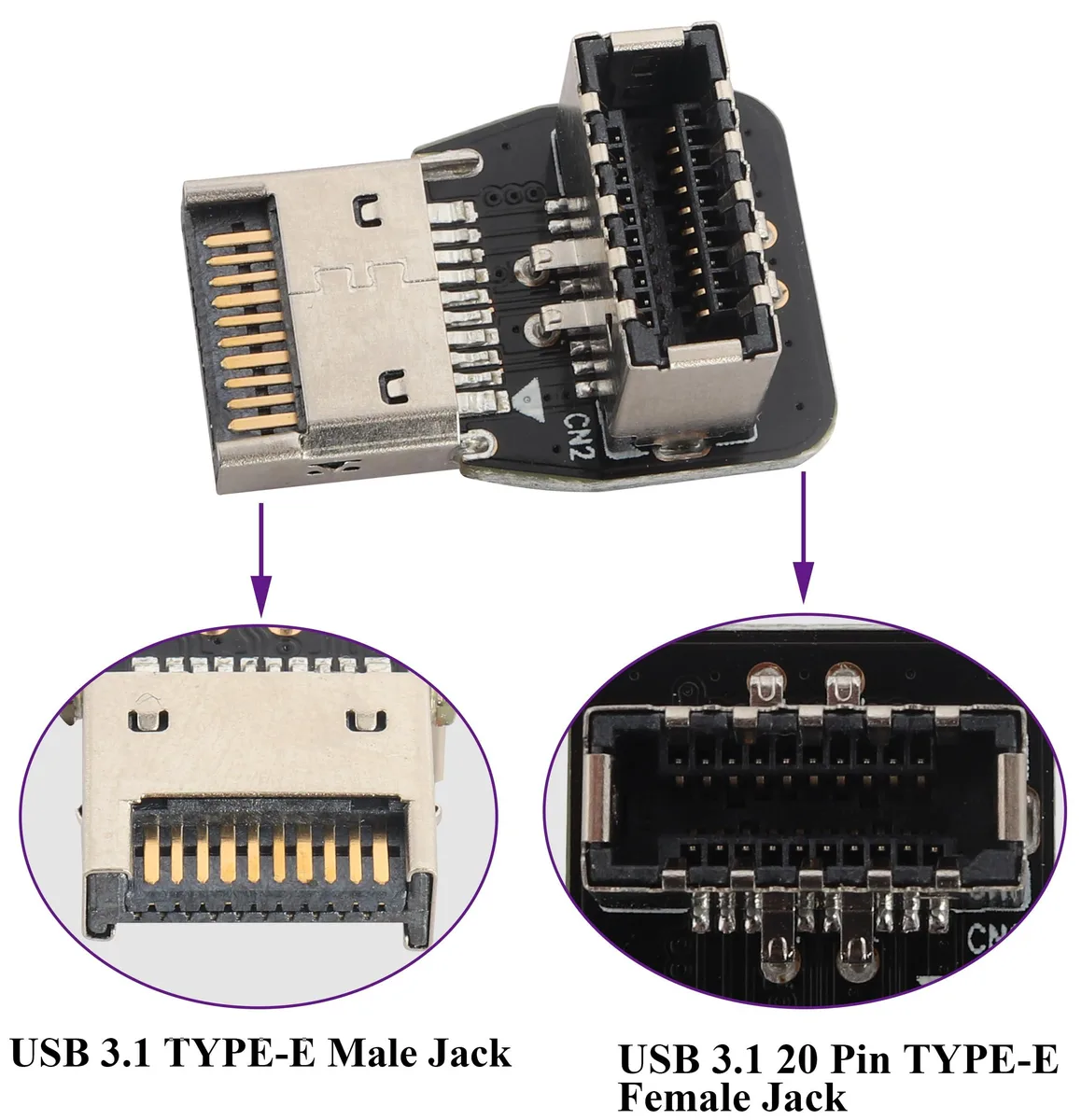

This two-pack provides down-right angled connectors that redirect a motherboard Type-E front-panel header by ninety degrees. Each unit mates a 19-pin male header to a 20-pin female socket rated for 10 Gbps USB 3.2 data transfer. The compact plastic-and-metal housing measures 2.2 cm by 1.5 cm by 1 cm and weighs 12 grams. Builders fitting front-panel USB ports in tight chassis corners will find the pair useful.
Thermals noise and power draw
The adapter is a passive device with no active cooling, so it generates no audible noise and draws no measurable power of its own. Signal integrity for 10 Gbps operation is maintained through the gold-plated contacts without additional power circuitry. Because it sits entirely inside the case, system airflow is unaffected. No thermal management is required beyond normal chassis ventilation.
Bundled accessories and software
The package contains two identical angled adapters and no cables, brackets, screws or driver media. Installation is driver-free plug-and-play; the only precaution is to disconnect mains power and wait 20 seconds before fitting to avoid pin shorting. Buyers who need an up-angled variant or a single straight-through extender will not be served by this specific down-right two-pack.
Highlights
- Two-pack gives a spare for a second build
- Down-right 90° angle routes cable neatly in tight cases
- 19-pin to Type-E fits standard 20-pin motherboard headers
- 10 Gbps bandwidth supports USB 3.2 Gen 2 speeds
- Plug-and-play with no driver installation required
Specifications
| Brand | AAOTOKK |
|---|---|
| Type | 19 pin to type e 3.1 |
| Color | 2 Pack |
| Cable Length | inches |
| Changer Type | 19 pin to type e 3.1 |
| Specifications | 19 pin to type e 3.1 Adapters device |
| Connector A | 19 pin to type e 3.1 |
| Connector B | 19 pin to type e 3.1 |
| Features | PC |
| Weight | 12 grams |
| Package Quantity | 1 |
Questions about this item
How do I install the 90-degree down-right PH74B adapter on a 20-pin Type-E motherboard header?
Power off the PC, unplug the mains cord and wait 30 seconds to discharge residual power. Align the 19-pin male plug with the keyed 20-pin header, press straight down until the latch clicks, then route the female socket toward the front-panel cut-out.
What upkeep will the plastic-and-metal 12-gram adapter need over time?
No scheduled maintenance is required; simply inspect the gold-plated contacts for dust when the case is open and reseat the connector if intermittent connectivity appears.
What is the first limit reached during sustained 10 Gbps transfers through this Type-E 3.1 link?
The 19-pin header interface is rated for 10 Gbps, so sustained throughput will plateau at that signalling ceiling before any thermal or cable-length constraint appears.
