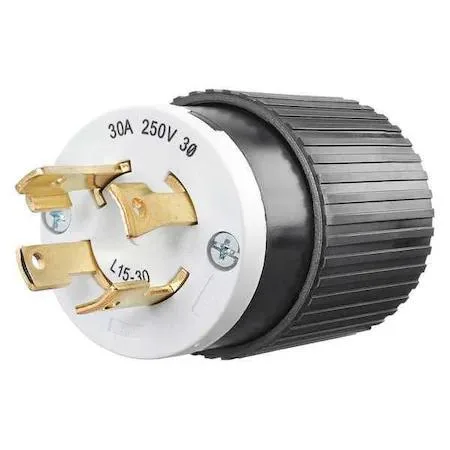

Black and white industrial locking plug, straight orientation, screw terminals, 1.89 inch face diameter

Bryant

Bryant 71530NP Locking Plug L15-30P 30A 250V Three Phase 3 Pole Screw

SKU CH-80X0-3FFMH

Locking plug rated 30 A at 250 V AC for three-phase industrial wiring with screw terminals and 0.465 to 1.15 in cable range

  • ColorBlack/White
  • MaterialHAWA
  • TypeLocking Devices
  • Industrial-grade durability from chemical and impact resistant composite housing
  • Secure three-phase power delivery with 30 A 250V AC NEMA L15-30P rating
  • Reliable screw terminal connections for 4-blade 3-pole configuration
  • Accepts cable diameters from 0.465 in to 1.15 in for versatile installation
  • Compact 1.89 in face diameter fits tight panel spaces

Industrial three-phase locking plug

The Bryant 71530NP is a straight-blade locking plug rated 30 A at 250 V AC for three-phase power. It uses a NEMA L15-30P configuration with three poles and four blades, suited for industrial equipment that requires a secure, polarized connection.

Cable range and face size set the practical limits

The plug accepts cables from 0.465 in to 1.15 in diameter, so very small or very large conductors will not fit. Its 1.89 in face diameter determines panel cut-out size and spacing in multi-outlet installations.

Composite housing resists chemicals and impact

The black-and-white composite body is rated chemical resistant and impact resistant for harsh environments. Screw-terminal wiring provides a standard, tool-tightened connection that resists vibration loosening in daily industrial use.

Highlights

  • Industrial-grade durability from chemical and impact resistant composite housing
  • Secure three-phase power delivery with 30 A 250V AC NEMA L15-30P rating
  • Reliable screw terminal connections for 4-blade 3-pole configuration
  • Accepts cable diameters from 0.465 in to 1.15 in for versatile installation
  • Compact 1.89 in face diameter fits tight panel spaces

Specifications

BrandBryant
ColorBlack/White
MaterialHAWA
TypeLocking Devices

Questions about this item

Should I choose the L15-30P plug for a 30 A three-phase circuit or a different NEMA configuration?

The L15-30P is a three-pole, four-blade locking plug rated for 30 A and 250 V AC three-phase power, so select it only when your equipment and receptacle match that exact configuration.

What does the 30 A rating mean when the plug is installed in a real machine?

It means the plug and its screw terminals are designed to carry up to 30 A continuously on each phase conductor in a 250 V AC three-phase system, provided the cable and breaker are also rated for that current.

How does the L15-30P interface limit the cable size I can use?

The screw terminals accept cables with an outside diameter between .465 in and 1.15 in, so the plug caps the maximum usable cable at 1.15 in.
