Small black box with HDMI, optical, coaxial, RCA and 3.5 mm ports

Boxwave

Boxwave HDMI ARC Audio Extractor DAC Converter 192KHz audio adapter

SKU CH-H00K-AMRN8

Extracts HDMI ARC audio to optical, coaxial, stereo RCA and 3.5 mm jacks with 24-bit DAC at up to 192 kHz sampling rates

  • TypeAdapters
  • Extracts TV audio via ARC to optical, coaxial, RCA and 3.5 mm
  • Converts digital PCM/LPCM to analogue through built-in DAC
  • Supports 32, 44.1, 48, 96 and 192 KHz sampling at 24-bit

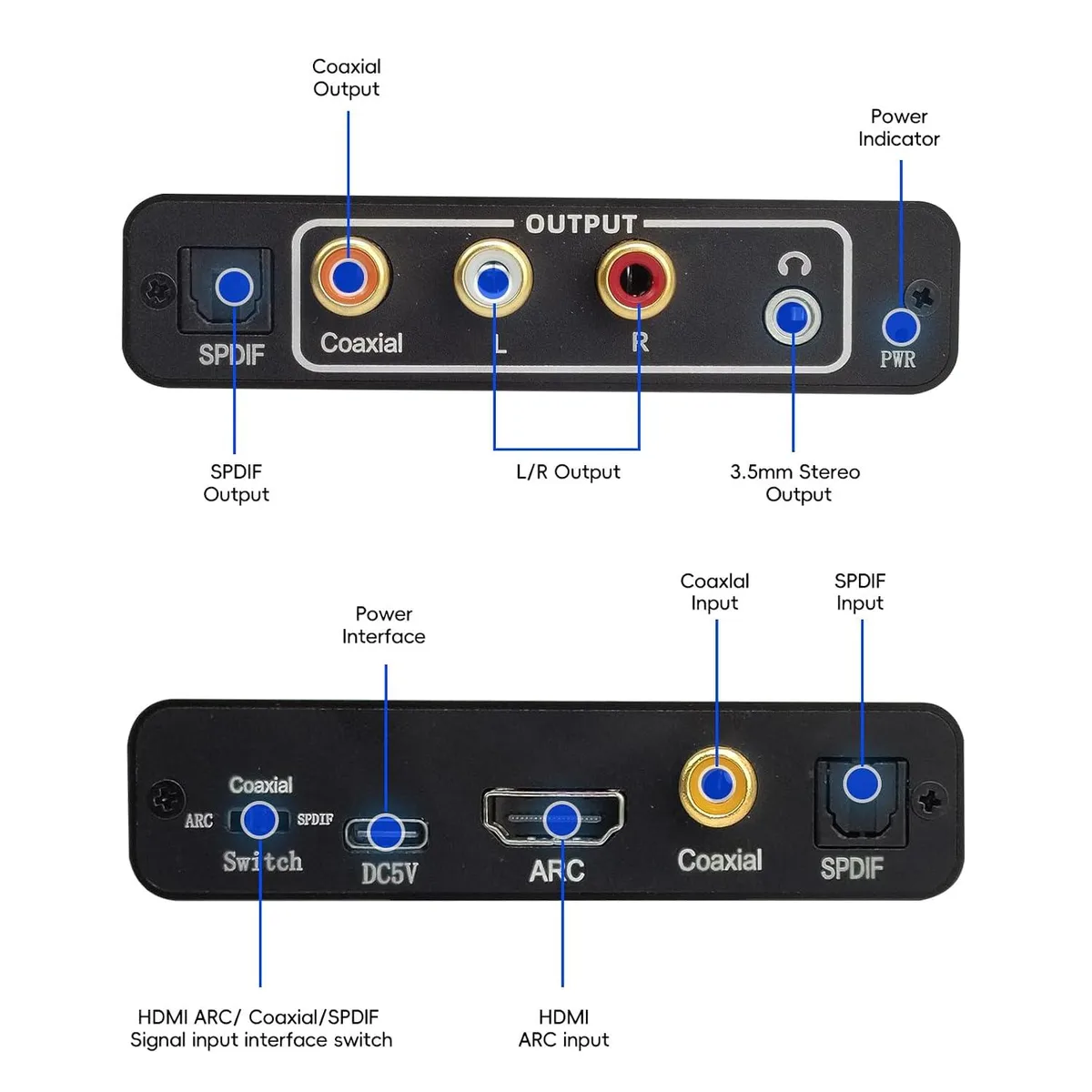

  • Simultaneous output on optical, coaxial, RCA and headphone jack
  • Front-panel switch selects active audio channel instantly

HDMI ARC Audio Extractor

The Boxwave HDMI ARC Audio Extractor pulls sound from ARC-enabled televisions and sends it to external audio systems through optical, coaxial, stereo RCA and 3.5 mm outputs. It solves the common problem of modern TVs that lack dedicated audio ports for connecting amplifiers, soundbars or headphones.

192 kHz Sampling Support

The converter handles PCM and LPCM digital streams at 32, 44.1, 48, 96 and 192 kHz sampling rates with 24-bit depth. A panel switch selects the active output channel, allowing quick changes between optical, coaxial and analogue connections without unplugging cables.

Fits Home Theatre and Conference Setups

The adapter requires a television or source device with an HDMI ARC port and accepts optical or coaxial digital inputs for conversion to analogue. It frees integrators from running long analogue cables by keeping signals digital until the final link to amplifiers or powered speakers.

Highlights

  • Extracts TV audio via ARC to optical, coaxial, RCA and 3.5 mm
  • Converts digital PCM/LPCM to analogue through built-in DAC
  • Supports 32, 44.1, 48, 96 and 192 KHz sampling at 24-bit
  • Simultaneous output on optical, coaxial, RCA and headphone jack
  • Front-panel switch selects active audio channel instantly

Specifications

TypeAdapters

Questions about this item

What does 192 kHz sampling mean when this extractor is connected to my TV?

The extractor passes audio at up to 192 kHz / 24-bit from the TV's ARC port so your DAC or amplifier receives the full resolution the source provides.

Which HDMI standard does the ARC connection use and what bandwidth does it carry?

The ARC link carries compressed or PCM stereo up to 192 kHz / 24-bit; it does not support multi-channel bitstream formats such as Dolby TrueHD or DTS-HD MA.

What physical connections must my TV and amplifier have for this adapter to fit?

The TV needs an HDMI ARC port; the amplifier or sound system needs an optical Toslink, coaxial RCA, stereo RCA pair or 3.5 mm jack input.
