Two black BNC-to-RJ45 balun adapters with DC and RCA connectors, 16cm cables

Boxwave

Boxwave Audio Adapter BNC to RJ45 2 Pairs 16cm 12-36V

SKU CH-VCRD-35662

Connects CCTV cameras to twisted-pair cable, carrying 720P, 960P or 1080P video, audio and 12-36V power up to 450 metres

  • TypeAdapters
  • Transmit 1080P video up to 450 m over Cat5/6 cable
  • Combine video, audio and 12-36 V DC power on one twisted-pair run
  • Passive balun needs no external power supply for simple installation
  • Replace 75 ohm coax with standard UTP for lower cabling cost
  • Two pairs included to connect multiple cameras in a single kit

CCTV balun pair for video audio power

Two passive baluns convert BNC video RCA audio and 12‑36V DC onto a single Cat5 or Cat6 run. Each unit has a BNC male video connector a 5.5×2.1 mm DC jack pair and an RCA male audio lead. The 16 cm pigtail keeps the camera junction tidy while the RJ45 female port accepts standard UTP cable. Supports 720P 960P and 1080P signals across CVI TVI AHD and CVBS formats.

ABS shell metal contacts tool‑free install

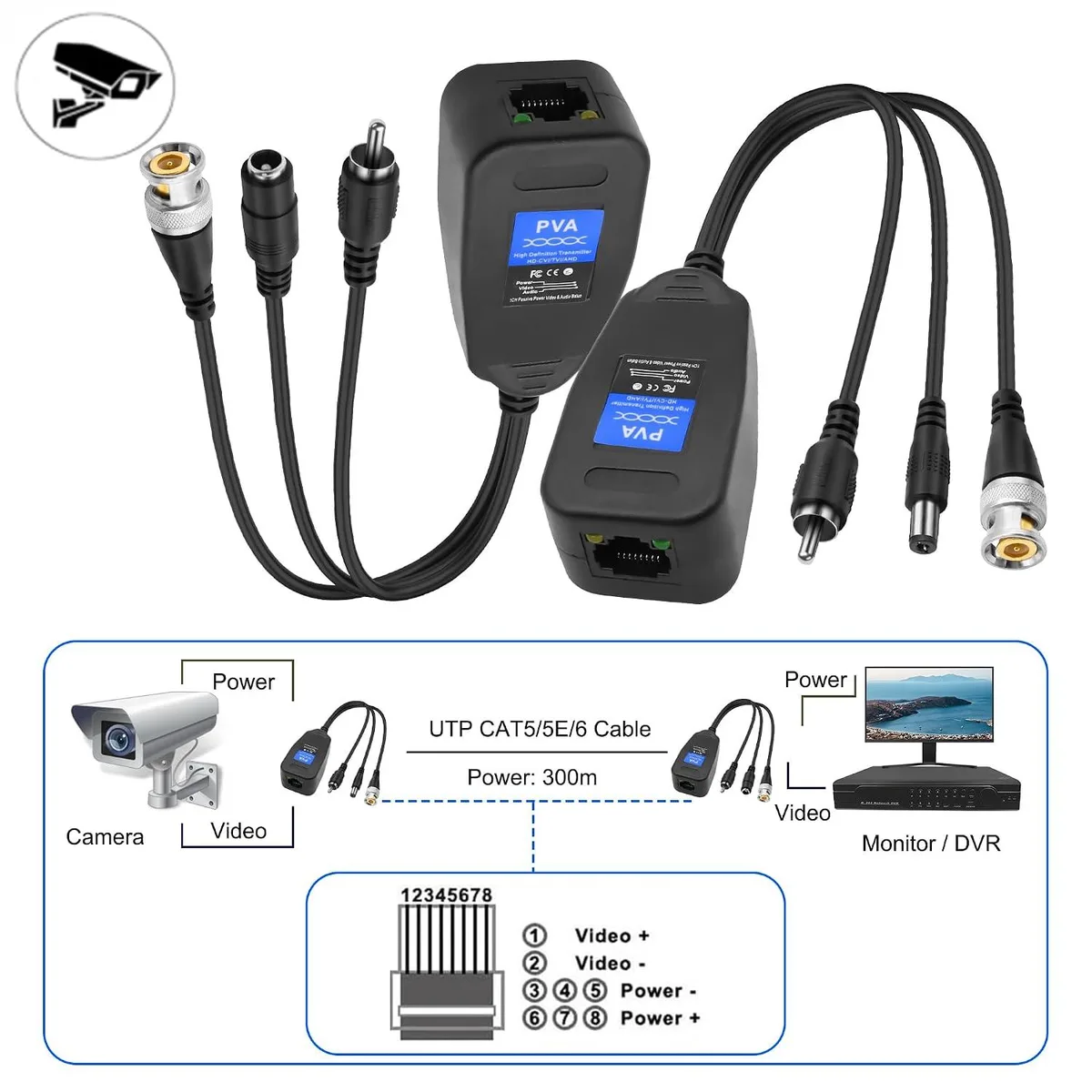

The ABS housing with metal contacts resists handling wear and needs no crimping tools. Simply plug the BNC side into the camera or DVR patch the RJ45 into the structured cable and connect the DC and RCA leads. Passive design means no local power supply at the camera end just the 12‑36V source already feeding the system. The short tail reduces strain on the BNC port during panel mounting.

Replaces coaxial runs up to 450 m CVI

Swaps 75 ohm coax for Cat5e or Cat6 delivering CVI video up to 450 m TVI or CVBS up to 250 m and AHD up to 320 m. Worth the jump when existing twisted‑pair infrastructure is in place or when pulling coax is impractical. Not suited for runs beyond the stated distances or for installers who need active equalisation or PoE injection on the same cable.

Highlights

  • Transmit 1080P video up to 450 m over Cat5/6 cable
  • Combine video, audio and 12-36 V DC power on one twisted-pair run
  • Passive balun needs no external power supply for simple installation
  • Replace 75 ohm coax with standard UTP for lower cabling cost
  • Two pairs included to connect multiple cameras in a single kit

Specifications

TypeAdapters

Questions about this item

What video standards and resolutions does the BNC-to-RJ45 balun support over Cat5 or Cat6 cable?

It handles CVI, TVI, AHD and CVBS signals at 720P, 960P and 1080P resolution.

What cable types and physical connectors are required to connect this adapter?

Use standard UTP Cat5, Cat5e or Cat6 cable; the unit provides BNC male, RJ45 female, DC 5.5 × 2.1 mm male/female jack and RCA male connectors.

How do you install the balun pair and what common mistake should be avoided?

Connect each balun between the camera and DVR using twisted-pair cable, match the DC 12-36 V supply polarity on the 5.5 mm jack, and do not exceed the 450 m CVI, 320 m AHD or 250 m TVI/CVBS distance limits.
