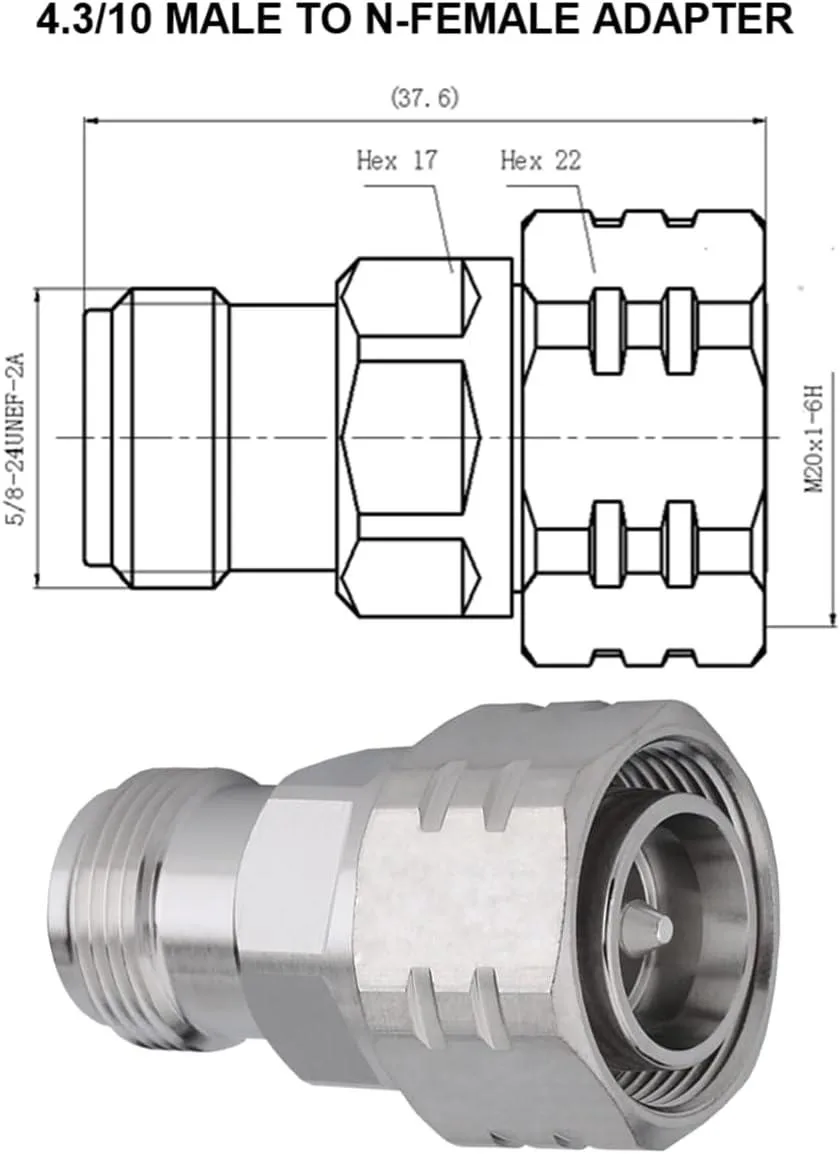

Two brass 4.3/10 Mini DIN male to N female jack adapters, 50 Ohm, tri-alloy plated

Boxwave

Boxwave 4.3/10 Mini DIN Male to N Female Jack Adapter 2 Pack

SKU CH-9J6C-THBKV

Connects 4.3/10 Mini DIN male to N female for RF coaxial applications up to 6 GHz with 50 Ohm impedance

  • TypeAdapters
  • Connect RF gear across interfaces with 4.3/10 Mini DIN male to N female adapter
  • Maintain signal integrity up to 6 GHz with 1.10 VSWR and 0.1 dB insertion loss
  • Achieve low passive intermodulation at -160 dBc for clean wireless performance
  • Ensure 50 Ohm impedance match with brass tri-alloy body and PTFE insulator
  • Ready for dual-link installs with two adapters included in the pack

RF Coaxial Adapter Pair

This pack supplies two 4.3/10 Mini DIN male to N female jack adapters for RF coaxial connections. They link antennas, wireless LAN devices, Wi-Fi radios and external antennas in professional installations. Each unit is built with a brass tri-alloy plated body and PTFE insulator. The pair suits engineers and technicians who need reliable gender-changing couplers.

50 Ohm Impedance and Low Loss

The adapters present a 50 Ohm impedance across a DC-6GHz frequency range. VSWR is rated at 1.10 and insertion loss at .1 dB for clean signal transfer. Passive PIM3 performance reaches -160dBc to minimise intermodulation distortion. No active cooling or power draw is involved in normal operation.

Consistent Performance Under Load

Gold-plated contacts maintain the specified VSWR and insertion loss during continuous RF transmission. The PTFE insulator and tri-alloy plating resist thermal drift across the full DC-6GHz band. PIM3 remains at -160dBc under sustained power, preventing passive intermodulation buildup. The two-pack format supports redundant paths or spare units in critical links.

Highlights

  • Connect RF gear across interfaces with 4.3/10 Mini DIN male to N female adapter
  • Maintain signal integrity up to 6 GHz with 1.10 VSWR and 0.1 dB insertion loss
  • Achieve low passive intermodulation at -160 dBc for clean wireless performance
  • Ensure 50 Ohm impedance match with brass tri-alloy body and PTFE insulator
  • Ready for dual-link installs with two adapters included in the pack

Specifications

TypeAdapters

Questions about this item

How do I install the 4.3/10 Mini DIN male connector without cross-threading the brass body?

Align the 4.3/10 Mini DIN male side carefully with the mating port and turn only by hand until the tri-alloy plated brass body seats firmly; do not use tools, which can strip the fine threads.

What maintenance will the PTFE insulator and tri-alloy plating need over time?

Inspect the PTFE insulator for cracks and the tri-alloy plating for corrosion every few months; clean gently with isopropyl alcohol if oxidation appears, and replace the adapter if the 50 Ohm impedance path is compromised.

At what power level does the -160 dBc PIM3 spec become the limiting factor during sustained transmission?

The -160 dBc PIM3 rating indicates passive intermodulation stays extremely low up to 6 GHz; the limit appears first when transmit power drives non-linear junctions beyond this threshold, degrading the 0.1 dB insertion loss.
