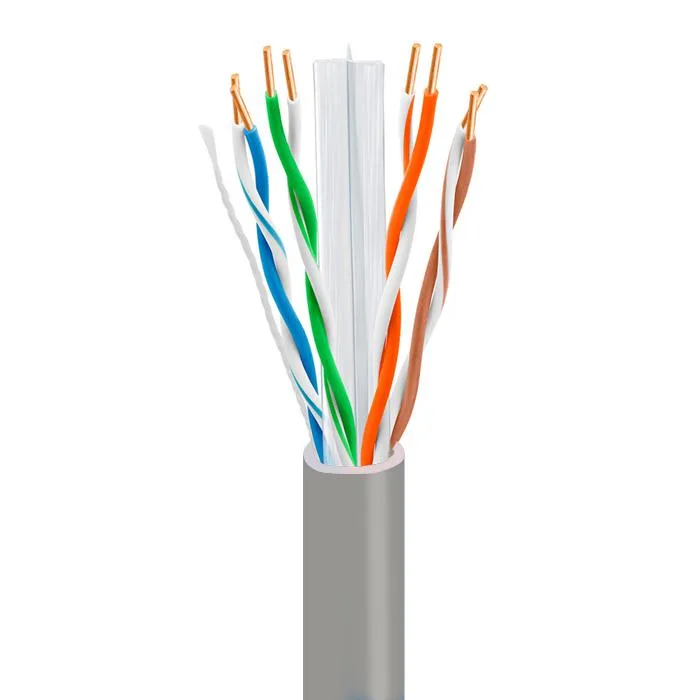

Gray CAT6 plenum cable reel in easy-pull box, 1000 ft solid UTP 23 AWG

BNCables

BNCables CAT6 Plenum CMP UTP 23AWG 550MHz 1000ft Gray

SKU CH-9F8V-13BNG

Plenum-rated CAT6 UTP cable with 23 AWG solid conductors and 550 MHz bandwidth supplied in a 1000 ft easy-pull box

  • TypeNetwork Ethernet Cables
  • Cat6
  • Connector ARJ45
  • Connector BRJ45
  • Length1000 ft.
  • ColorGray
  • Plenum CMP rating suits air-handling spaces
  • 550 MHz bandwidth supports 10 Gigabit Ethernet
  • 23 AWG solid conductors with centre spline reduce crosstalk
  • 1000 ft easy-pull box with foot markings speeds installation
  • Grey UTP jacket meets TIA/EIA 568-C.2 standards

Plenum-rated Cat 6 for fire-safe installs

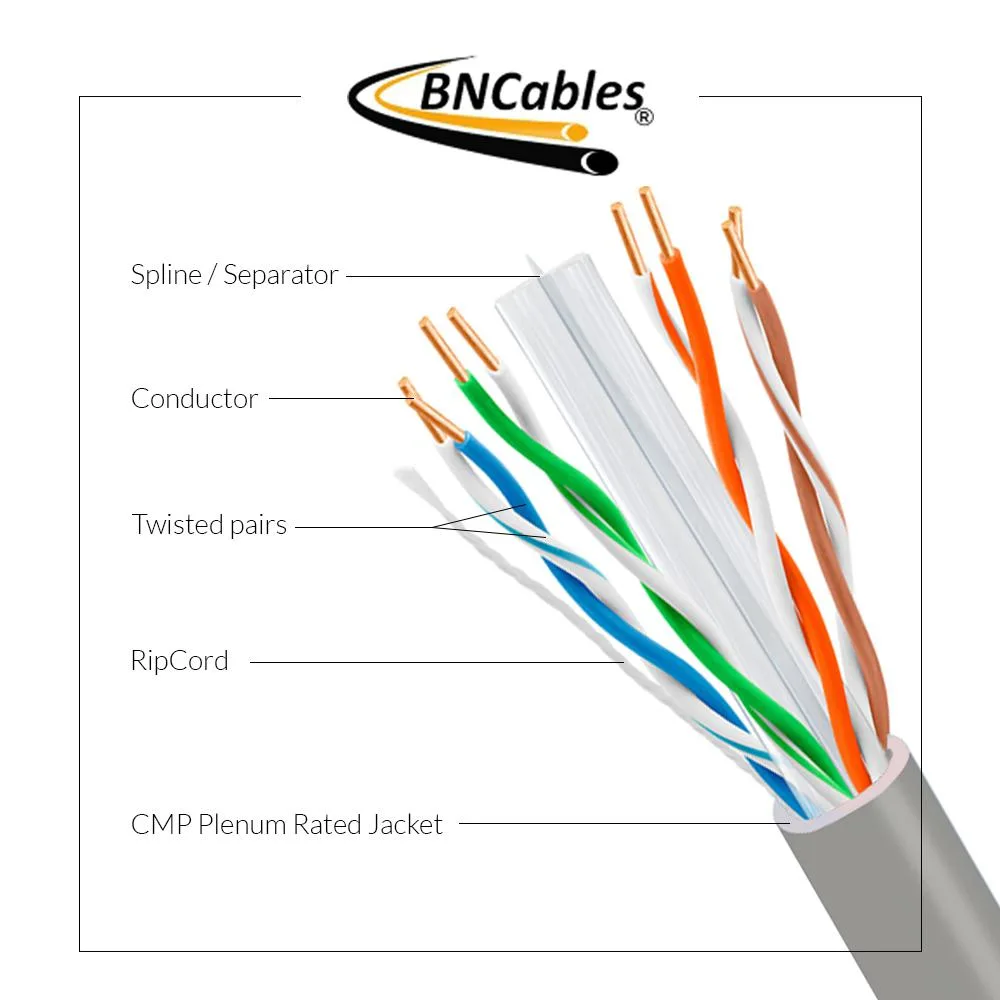

This BNCables cable is a 1000 ft reel of Cat 6 UTP built with a CMP plenum jacket for use in air-handling spaces. It uses 23 AWG solid conductors with a centre spline to keep pair geometry stable. The grey jacket carries sequential foot markings for easy measurement during pulls.

Suited for commercial drops

Installers running cable through ceilings or raised floors will meet code with the plenum rating. The unshielded design keeps termination simple for standard RJ45 connections. Buyers who need shielded cable for high-EMI environments or outdoor burial grade should look at a different construction.

550 MHz bandwidth handles 10 GbE over short links

The 550 MHz rating supports Fast, Gigabit and 10-Gigabit Ethernet where distance allows. The spline and 23 AWG conductors reduce cross-talk to maintain headroom on longer runs. At the full 1000 ft length, 10 GbE will exceed the standard channel limit, so plan shorter segments for that speed.

Highlights

  • Plenum CMP rating suits air-handling spaces
  • 550 MHz bandwidth supports 10 Gigabit Ethernet
  • 23 AWG solid conductors with centre spline reduce crosstalk
  • 1000 ft easy-pull box with foot markings speeds installation
  • Grey UTP jacket meets TIA/EIA 568-C.2 standards

Specifications

BrandBNCables
TypeNetwork Ethernet Cables
Cat6
Connector ARJ45
Connector BRJ45
Length1000 ft.
ColorGray
ShieldedNo

Questions about this item

Do I need RJ45 connectors and a crimping tool to terminate this 23 AWG solid cable?

Yes, RJ45 plugs rated for solid 23 AWG conductors and a compatible crimp tool are required to terminate each end.

Will this CAT6 plenum cable work with my existing CAT5e patch panels and wall jacks?

The cable meets TIA/EIA 568-C.2 standards, so it terminates on standard CAT5e RJ45 panels and jacks while delivering up to 550 MHz bandwidth.

How can I verify the 550 MHz performance after installation?

Use a CAT6-certified cable tester to confirm wire map, length under 1000 ft, and that the link passes the 550 MHz frequency sweep.
