Yellow CAT6 plenum cable reel in easy-pull box, 1000 ft, 23 AWG, 550 MHz

BNCables

BNCables CAT6 Plenum CMP UTP 1000ft 23AWG 550MHz Yellow

SKU CH-64V7-N9DPZ

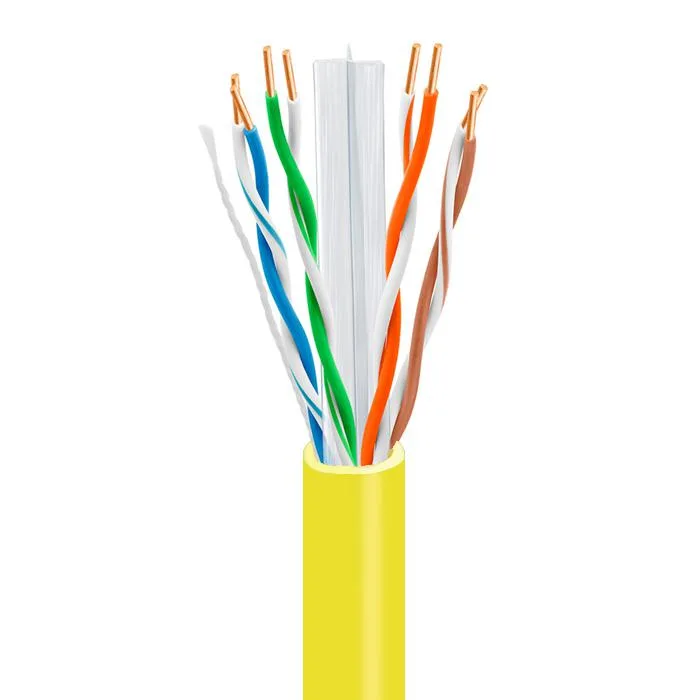

Plenum-rated CAT6 UTP cable with 23 AWG solid conductors, 550 MHz bandwidth and 1000 ft pull-box for in-wall runs

  • TypeNetwork Ethernet Cables
  • Cat6
  • Connector ARJ45
  • Connector BRJ45
  • Length1000 ft.
  • ColorYellow
  • Supports 10-Gigabit Ethernet with 550MHz bandwidth
  • Plenum CMP rating approved for air-handling spaces
  • 1000 ft pull box with sequential foot markings
  • 23AWG solid conductors with centre spline reduce crosstalk
  • Yellow UTP jacket meets TIA/EIA 568-C.2 standards

Plenum-Rated CAT6 for Air-Handling Spaces

This BNCables cable carries a CMP rating, making it suitable for installation in plenum areas above suspended ceilings or below raised floors. The yellow jacket is fire-retardant and meets TIA/EIA 568-C.2 standards. It uses 23 AWG solid copper-clad aluminum conductors with HDPE insulation and an unshielded twisted-pair construction.

1000-Foot Pull Box with Foot Markings

The cable arrives in a 1000 ft easy-pull box designed to reduce tangles during long runs. Sequential foot markings on the jacket help installers track remaining length without separate measuring tools. A centre spline separates the four pairs to resist kinking and limit cross-talk, while RJ45 connectors on both ends terminate the run.

Installers Needing Plenum Compliance and Long Runs

This product suits commercial and residential projects that require plenum-rated cable in continuous 1000 ft lengths for Gigabit or 10-Gigabit Ethernet. Builders who need shielded cable, shorter pre-terminated patch cords, or outdoor-rated jacketing should look at other options.

Highlights

  • Supports 10-Gigabit Ethernet with 550MHz bandwidth
  • Plenum CMP rating approved for air-handling spaces
  • 1000 ft pull box with sequential foot markings
  • 23AWG solid conductors with centre spline reduce crosstalk
  • Yellow UTP jacket meets TIA/EIA 568-C.2 standards

Specifications

BrandBNCables
TypeNetwork Ethernet Cables
Cat6
Connector ARJ45
Connector BRJ45
Length1000 ft.
ColorYellow
ShieldedNo

Questions about this item

What is the maximum bandwidth this 550 MHz cable can carry?

The cable supports up to 550 MHz bandwidth, which covers Fast, Gigabit and 10-Gigabit Ethernet speeds.

How much heat does the plenum jacket add during a full-day pull?

The CMP-rated jacket is fire-retardant for air-handling spaces and does not generate additional heat during installation or operation.

Which connectors must I already have to terminate the 23 AWG solid conductors?

Standard RJ45 plugs designed for 23 AWG solid-core wire are required for both ends.
