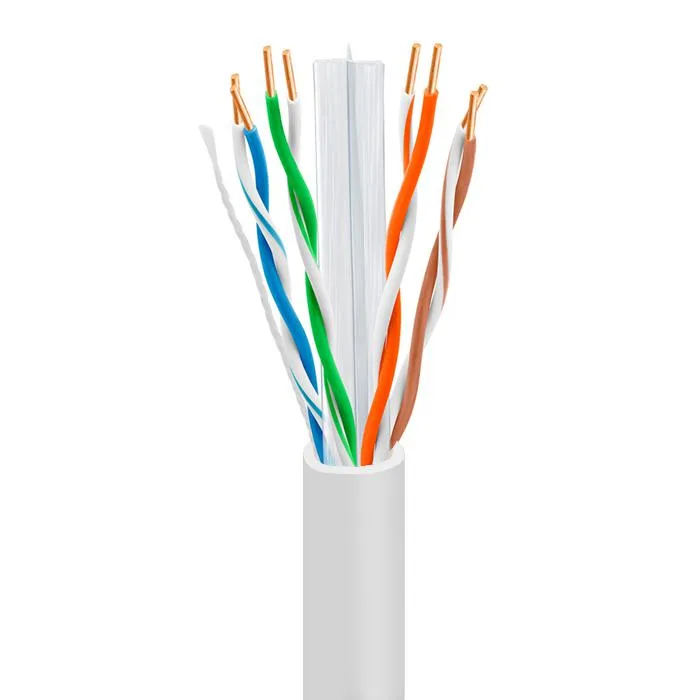

White CAT6 plenum cable reel in easy-pull box, 1000 ft, 23 AWG, 4 pair, unshielded twisted pair

BNCables

BNCables CAT6 Plenum CMP 1000ft 23AWG 4Pair 550MHz UTP White

SKU CH-GATT-3SPWQ

Plenum-rated CAT6 UTP cable delivers 550 MHz bandwidth over 1000 ft with 23 AWG solid conductors and a centre spline for reduced crosstalk

  • TypeNetwork Ethernet Cables
  • Cat6
  • Connector ARJ45
  • Connector BRJ45
  • Length1000 ft.
  • ColorWhite
  • Plenum CMP rating enables safe installation in air-handling spaces
  • 550 MHz bandwidth supports Fast, Gigabit and 10-Gigabit Ethernet
  • 23 AWG solid conductors with centre spline reduce crosstalk and kinks
  • 1000 ft easy-pull box with sequential foot markings simplifies long runs
  • Unshielded twisted pair design meets TIA/EIA 568-C.2 for reliable indoor networking

550 MHz Plenum-Rated CAT6 Cable

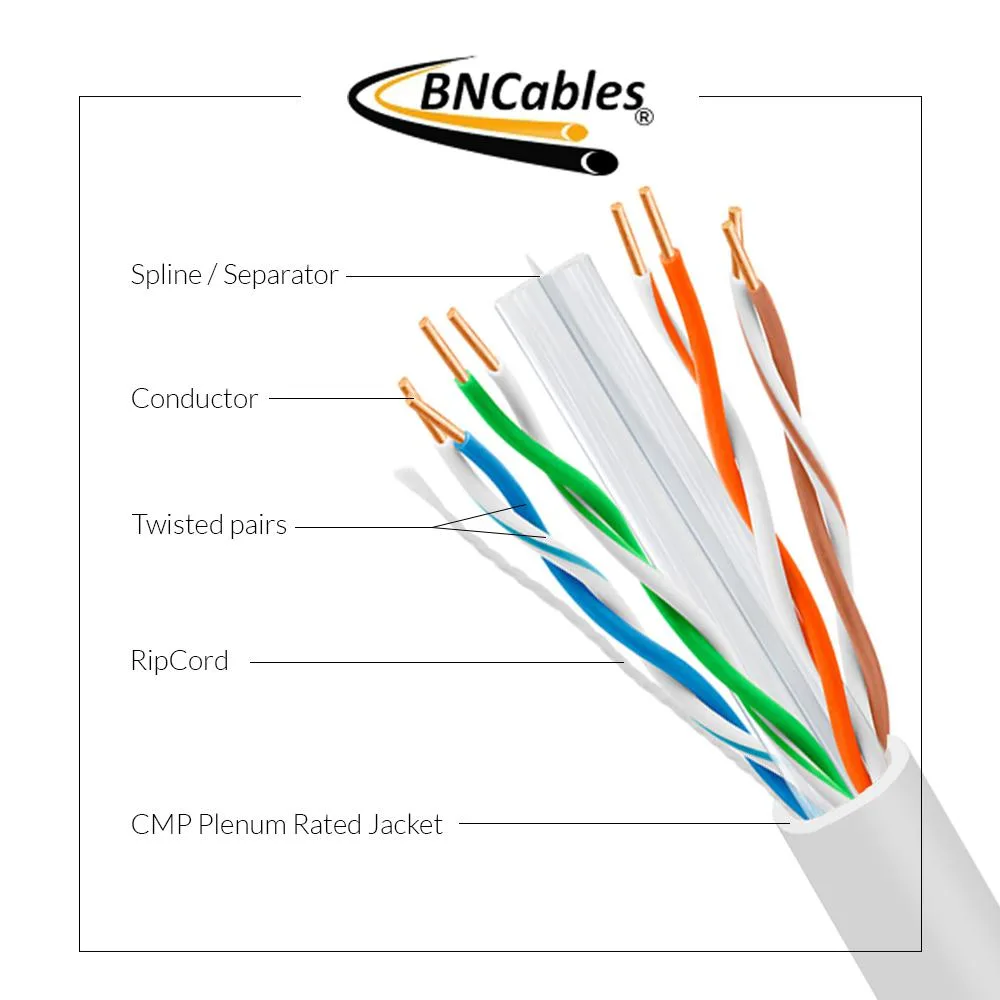

This 1000 ft CAT6 plenum cable uses 23 AWG solid conductors with four unshielded twisted pairs. The CMP-rated jacket meets fire-safety requirements for installation in air-handling spaces above suspended ceilings or below raised floors. A center spline separates the pairs to reduce cross-talk and resists kinks during pulls. Sequential foot markings on the jacket simplify length tracking.

Upgrade from Lower-Category or Non-Plenum Cable

Replacing CAT5e or non-plenum CAT6 with this cable adds 550 MHz bandwidth headroom for 10-Gigabit Ethernet runs and satisfies building codes that require plenum-rated materials in return-air pathways. The jump is worth it when the installation passes through plenum spaces or when future-proofing for higher data rates is a design goal.

Installers Needing Code-Compliant Bulk Cable

Suited for commercial and residential projects that demand plenum-rated UTP in white for computers, printers, VoIP phones, IP cameras and similar devices. Not suited for outdoor burial, direct sunlight, or shielded environments that require foil or braid protection against electromagnetic interference.

Highlights

  • Plenum CMP rating enables safe installation in air-handling spaces
  • 550 MHz bandwidth supports Fast, Gigabit and 10-Gigabit Ethernet
  • 23 AWG solid conductors with centre spline reduce crosstalk and kinks
  • 1000 ft easy-pull box with sequential foot markings simplifies long runs
  • Unshielded twisted pair design meets TIA/EIA 568-C.2 for reliable indoor networking

Specifications

BrandBNCables
TypeNetwork Ethernet Cables
Cat6
Connector ARJ45
Connector BRJ45
Length1000 ft.
ColorWhite
ShieldedNo

Questions about this item

What conduit size is needed for the 23 AWG 4-pair construction?

The 23 AWG solid conductors with centre spline require conduit fill calculations based on the cable's overall diameter; consult local code for the exact trade size.

How do you terminate the solid conductors to RJ45 plugs without damaging the spline?

Strip the jacket carefully, untwist each pair only to the termination point, keep the centre spline intact, and use a ratchet crimper designed for solid 23 AWG wire.

When should the cable be replaced if installed in a plenum space?

Replace it if the CMP jacket shows cracking, discoloration, or if certification testing reveals insertion loss or crosstalk exceeding the 550 MHz Category 6 limits.
