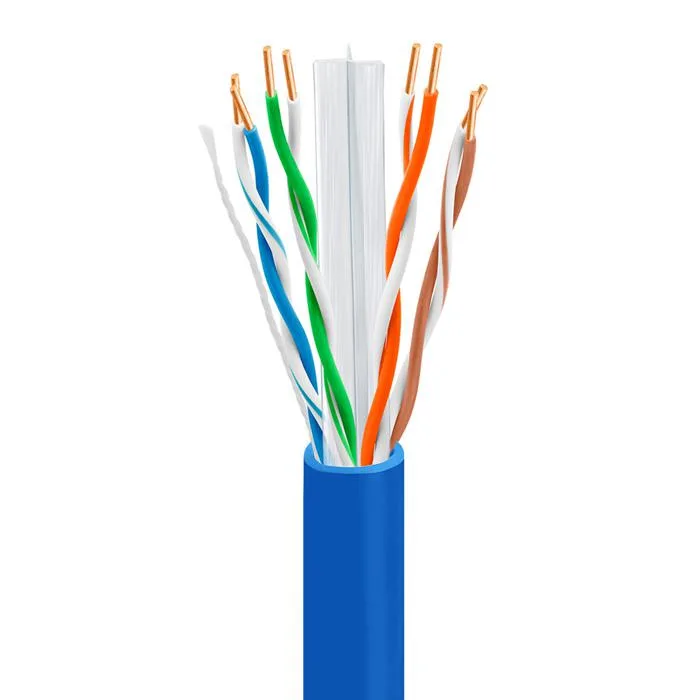

Blue Cat6 plenum cable reel in easy-pull box, 1000 ft, 23 AWG, 4 pair, UTP, 550 MHz

BNCables

BNCables CAT6 Plenum CMP 1000ft 23AWG 4Pair 550MHz UTP Blue

SKU CH-NZ3K-Q3BFM

Plenum-rated CAT6 UTP cable supports 550 MHz bandwidth for gigabit and 10-gigabit Ethernet over 1000 ft with 23 AWG solid conductors

  • TypeNetwork Ethernet Cables
  • Cat6
  • Connector ARJ45
  • Connector BRJ45
  • Length1000 ft.
  • ColorBlue
  • Supports up to 550 MHz bandwidth for 10-Gigabit Ethernet speeds
  • CMP plenum rating meets fire safety codes for air-handling spaces
  • 1000 ft pull box with sequential foot markings speeds installation

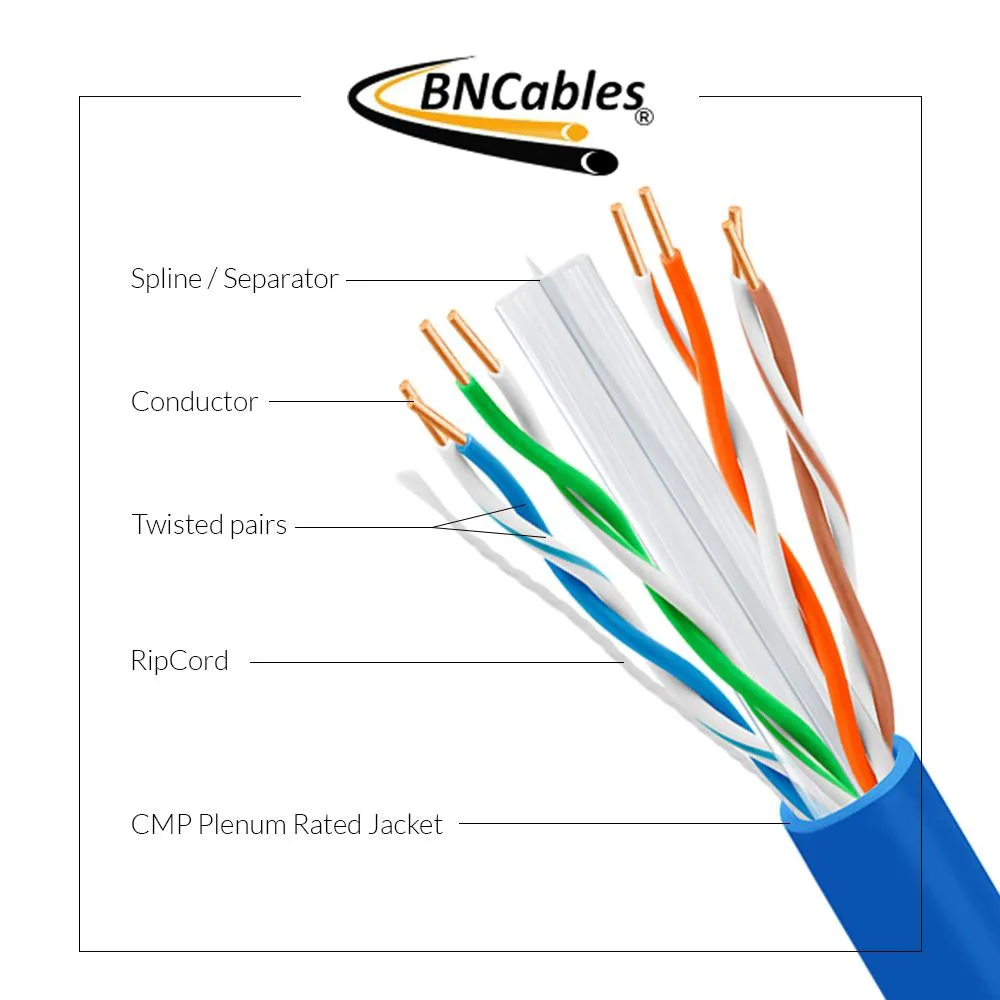

  • 23 AWG solid conductors with centre spline reduce crosstalk and kinks
  • Blue UTP jacket suits commercial and residential network runs

Plenum-rated Cat6 for air-handling spaces

This BNCables cable carries a CMP rating, so it meets fire-safety requirements for installation in plenum ceilings and raised-floor areas. The jacket is designed for indoor use where building codes demand low-smoke, flame-retardant materials. Supplied in a 1000 ft easy-pull box with sequential foot markings, it simplifies long runs through commercial or residential structures. Solid 23 AWG conductors and a centre spline help maintain pair geometry during pulls.

550 MHz bandwidth and UTP construction

The cable is tested to 550 MHz and follows TIA/EIA 568-C.2 specifications for Cat6 performance. Four unshielded twisted pairs support Fast, Gigabit and 10-Gigabit Ethernet links. The spline separates pairs to reduce cross-talk, while the HDPE insulation protects the copper-clad aluminium conductors. No shielding is present, so the cable relies on balanced pair design for noise rejection.

Suited for installers needing plenum compliance

Contractors and IT teams running cables through air-handling spaces will find the CMP rating and pull-box format practical for code-compliant jobs. Buyers who require shielded cable for high-EMI environments should look elsewhere, as this is an unshielded design. The product is also not intended for outdoor or direct-burial applications. Users needing pre-terminated patch cords will need a different solution.

Highlights

  • Supports up to 550 MHz bandwidth for 10-Gigabit Ethernet speeds
  • CMP plenum rating meets fire safety codes for air-handling spaces
  • 1000 ft pull box with sequential foot markings speeds installation
  • 23 AWG solid conductors with centre spline reduce crosstalk and kinks
  • Blue UTP jacket suits commercial and residential network runs

Specifications

BrandBNCables
TypeNetwork Ethernet Cables
Cat6
Connector ARJ45
Connector BRJ45
Length1000 ft.
ColorBlue
ShieldedNo

Questions about this item

How does the 550 MHz bandwidth translate to real-world network speeds in a finished installation?

The 550 MHz rating supports Fast, Gigabit and 10-Gigabit Ethernet so the cable will carry the full speed of any connected switch or router up to 10 Gbps.

What does the TIA/EIA 568-C.2 compliance actually limit in a plenum run?

The standard caps the horizontal run at 100 metres and defines the performance margins that the 550 MHz cable meets or exceeds.

What physical space does the 23 AWG solid conductor with spline need inside a conduit or tray?

The solid 23 AWG pairs and centre spline make the cable stiffer than stranded patch cord so allow a wider bend radius and enough tray depth for the larger diameter.
