White vandal-proof PTZ dome camera, compact cylindrical body, IP66 rated, 12x optical zoom, 138 by 212 mm, 3 kg

Bluecctv

Bluecctv PT-12X analog camera vandal proof 12x zoom IP66

SKU CH-C2DK-3JE4T

Vandal-proof PTZ dome with 12× optical zoom, 360° pan, 90° tilt and IP66 weather resistance

  • 12× optical zoom reaches distant detail with f=5–60 mm lens
  • 360° continuous pan plus 90° tilt flip covers every angle
  • 50°/s maximum pan speed tracks fast-moving subjects
  • IP66-rated vandal-proof housing withstands outdoor abuse
  • 16 presets and Pelco D/P RS-485 control simplify integration

Compact vandal-resistant PTZ camera

The Bluecctv PT-12X is a mini speed-dome camera built for outdoor surveillance. Its IP66-rated housing protects the 1/3-inch Sony Super HAD II CCD and 12x optical zoom lens against dust and heavy rain. The unit suits installers who need a rugged pan-tilt-zoom device in a compact 138 by 212 millimetre form factor.

Analogue transmission and control limits

Video is delivered as an analogue composite signal at 650 TV lines in colour or 700 TV lines in monochrome. Camera movement and preset recall rely on RS-485 using Pelco D or Pelco P protocol. Pan speed reaches 50 degrees per second across a continuous 360-degree range, while tilt covers 0 to 90 degrees with auto-flip.

Upgrade path from fixed analogue cameras

This model replaces static analogue cameras when operators need live directional control and optical zoom up to 60 millimetres focal length. Sixteen preset positions speed up monitoring of multiple zones. The jump is worthwhile when a site requires weatherproof vandal resistance and remote positioning rather than a fixed field of view.

Highlights

  • 12× optical zoom reaches distant detail with f=5–60 mm lens
  • 360° continuous pan plus 90° tilt flip covers every angle
  • 50°/s maximum pan speed tracks fast-moving subjects
  • IP66-rated vandal-proof housing withstands outdoor abuse
  • 16 presets and Pelco D/P RS-485 control simplify integration

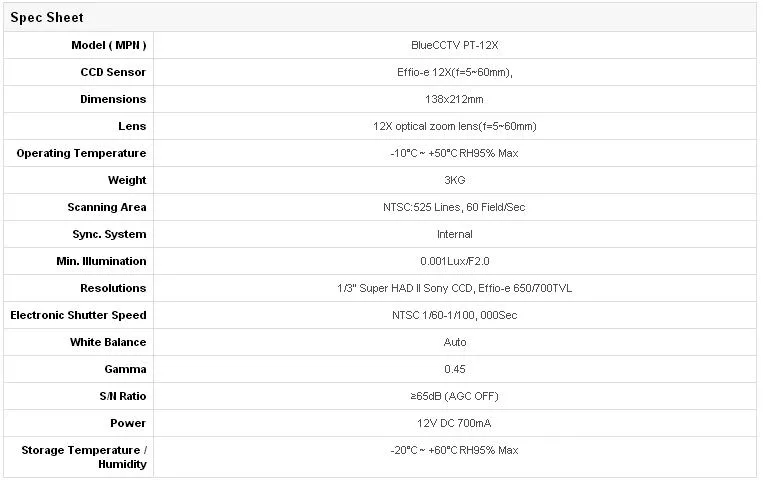

Specifications

BrandBluecctv
ModelPT-12X

Questions about this item

Which version of this camera should I choose?

The PT-12X is supplied as a single model with a 12x optical zoom lens covering 5 to 60 mm and a 1/3" Sony Super HAD II CCD sensor.

What does the 650 TVL colour resolution mean once the camera is installed?

It delivers 650 TV lines in colour mode and 700 TV lines in black-and-white mode, providing clear analogue video detail for standard DVR recording.

Which control interface does it use and what does that limit in practice?

The camera uses RS-485 with Pelco D and Pelco P protocol support, allowing pan, tilt, zoom and up to 16 preset positions from a compatible controller.
