Bluecctv CS-620SID240 bullet camera, matte finish, 40 IR LEDs, varifocal lens

Bluecctv

Bluecctv CS-620SID240 620TVL 2.8-12mm 40IR analog camera

SKU CH-7TEJ-QWM8S

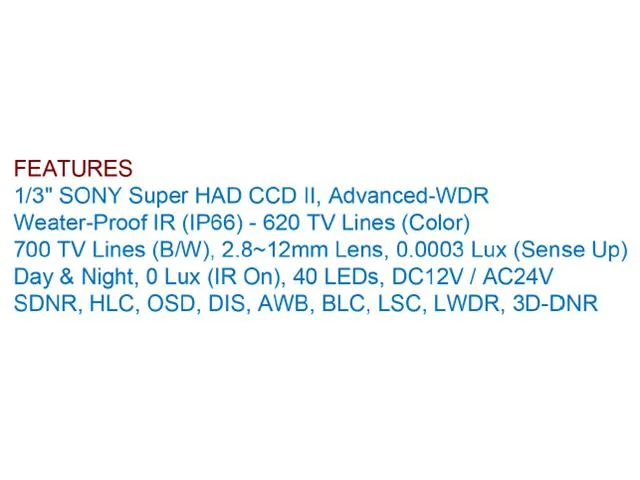

An IP66-rated analog bullet camera with a 2.8–12 mm varifocal lens, 40 IR LEDs and dual 12 V DC / 24 V AC power, delivering 620 TVL colour and 700 TVL monochrome via a 1/3″ Sony Super HAD CCD II

  • 620 TV lines colour resolution from 1/3" Sony Super HAD CCD II sensor
  • 700 TV lines monochrome resolution for sharper night detail
  • 8~12 mm varifocal lens adjusts field of view on site
  • 40 IR LEDs illuminate up to 40 metres in total darkness
  • IP66 weather-proof housing with dual 12 V DC / 24 V AC power

Bluecctv CS-620SID240 Analog Camera

The Bluecctv CS-620SID240 is a bullet-style analog camera built for outdoor surveillance. It uses a 1/3" Sony Super HAD CCD II sensor to deliver 620 TV lines in colour and 700 TV lines in black and white. The varifocal 2.8~12mm lens lets installers adjust the field of view on site. Dual-power input accepts DC12V or AC24V for flexible wiring.

IP66 Weather Proof Thermals and Power

An IP66 rated housing protects the electronics from dust and heavy rain without active cooling. The camera draws power from either a 12V DC or 24V AC supply, keeping consumption low during normal operation. Forty infrared LEDs provide illumination up to the rated distance when ambient light drops. No moving parts mean silent running in all conditions.

Sustained Load Behaviour with Advanced WDR

Advanced WDR and 3D-DNR work continuously to balance exposure and suppress noise during long recording sessions. Sense-up mode pushes sensitivity to 0.0003 lux for extended low-light coverage without IR. Digital image stabilisation and highlight compensation maintain usable footage when lighting changes abruptly. The day/night filter switches automatically to sustain image quality over 24-hour cycles.

Highlights

  • 620 TV lines colour resolution from 1/3" Sony Super HAD CCD II sensor
  • 700 TV lines monochrome resolution for sharper night detail
  • 8~12 mm varifocal lens adjusts field of view on site
  • 40 IR LEDs illuminate up to 40 metres in total darkness
  • IP66 weather-proof housing with dual 12 V DC / 24 V AC power

Specifications

BrandBluecctv
ModelCS-620SID240

Questions about this item

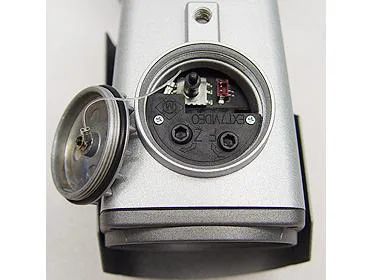

How do I wire the dual-power input on this Bluecctv CS-620SID240 and what is the common mistake?

Connect either 12 V DC or 24 V AC to the corresponding terminals — not both at once — and verify polarity before powering up.

Which parts of the Bluecctv CS-620SID240 will need cleaning or replacement over time?

The 40 IR LEDs and the IP66-rated housing window should be cleaned periodically; the CCD sensor and lens assembly are sealed and not user-serviceable.

What limits night-range performance first during extended use on this Bluecctv CS-620SID240?

The 40 IR LEDs provide illumination up to their rated distance; beyond that the 0.0003 lux sensitivity and 700 TVL black-and-white resolution determine usable image quality.
