White outdoor turret CCTV camera with varifocal lens

Bluecctv

Bluecctv CMHT1623W HD-TVI CCTV Camera 1080P 2.8-12mm

SKU CH-D4F1-C1EV1

Outdoor turret camera delivers 1080P video at 25 or 30 fps with a 2.8-12mm varifocal lens and smart IR over a single coaxial cable up to 300-500m

  • TypeHD-TVI Camera
  • 1080P HD resolution delivers clear 25 or 30 fps video
  • Varifocal 2.8-12mm lens adjusts field of view for flexible coverage
  • HD-TVI transmits video up to 500 metres over coaxial cable
  • Real-time preview with zero latency enables instant monitoring
  • Single coax carries video, audio and PTZ data simultaneously

Outdoor Turret Camera

The Bluecctv CMHT1623W is an HD-TVI turret camera built for outdoor surveillance. It delivers 1080P video at 25 or 30 frames per second for clear monitoring. The varifocal 2.8-12mm lens lets installers adjust the field of view on site. This camera suits installers who need a traditional coaxial setup without network configuration.

Coaxial Transmission & Smart IR

HDTVI technology sends composite video, audio and PTZ data over a single coaxial cable up to 300-500m with no video loss. It keeps the familiar analogue wiring structure so existing cabling can be reused. Smart IR illumination activates automatically for night viewing. The design is not for installers who require IP networking or Power over Ethernet.

Analogue Reliability

Real-time preview runs without the latency or packet loss common in network video systems. The analogue modulation avoids bandwidth instability during continuous recording. Power consumption stays low because no encoding hardware is needed. Buyers who want onboard analytics or cloud storage should look at IP-based alternatives.

Highlights

  • 1080P HD resolution delivers clear 25 or 30 fps video
  • Varifocal 2.8-12mm lens adjusts field of view for flexible coverage
  • HD-TVI transmits video up to 500 metres over coaxial cable
  • Real-time preview with zero latency enables instant monitoring
  • Single coax carries video, audio and PTZ data simultaneously

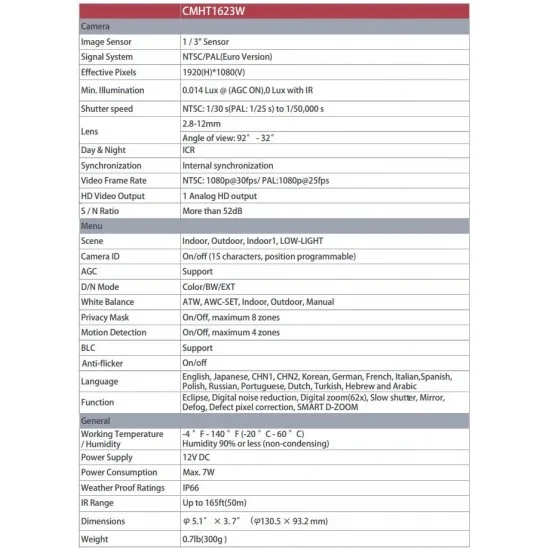

Specifications

BrandLTS
ModelCMHT1623W
TypeHD-TVI Camera

Questions about this item

Does the HD-TVI interface carry 1080P video, audio and PTZ data over one coaxial cable?

Yes, the camera transmits composite video, audio and PTZ data signals together over a single coaxial or UTP cable.

What physical mounting style does the CMHT1623W use for outdoor installation?

It is an outdoor turret camera designed for wall or ceiling mounting with a standard bracket.

How do you connect the camera to an existing analogue DVR without rewiring?

Use the existing coaxial or UTP cable; the camera follows the same connection structure as the original analogue system.
