Bluecctv
Bluecctv BL UH B142V analog camera 1080p 2.8~12mm 40 IR IP68
Outdoor bullet camera captures 1080p video with a 2.8~12mm lens, 40 IR LEDs for 0-lux night vision and IP68-rated housing
- Full HD 1080p clarity for detailed surveillance footage
- Vari-focal 2.8~12mm lens adjusts viewing angle precisely
- 40 IR LEDs deliver clear night vision at 0 Lux
- IP68-rated housing withstands harsh outdoor environments
- Dual HD-SDI and analog output simplifies system integration
Outdoor Bullet Camera

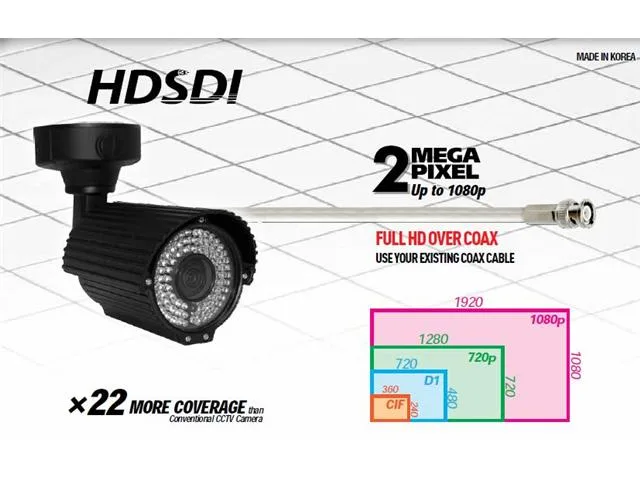

The Bluecctv BL UH B142V is a 2-megapixel HD-SDI bullet camera built for exterior surveillance. It delivers a 1080p picture through a 1/3 inch Sony CMOS sensor with progressive scan. The IP68-rated housing protects the electronics from dust and water ingress. Installers gain a true day-night solution with an IR cut filter and 40 IR LEDs for 0 lux operation.
HD-SDI Cabling Limits
HD-SDI transmission requires RG59 or RG6 coaxial cable fitted with crimp or compressed connectors. Signal integrity degrades beyond the cable's specified reach, so run lengths must stay within the standard's practical distance. The camera also provides an analog output as a fallback for legacy DVR equipment. No network or IP streaming capability is present.
Coverage and Low-Light Headroom
The 2.8 to 12mm vari-focal lens lets the installer adjust the field of view from wide overview to narrower detail. Wide dynamic range and 3D noise reduction preserve contrast in mixed lighting. Horizontal resolution exceeds 1000 TVL for sharp edges. The 12V DC supply powers the camera and the IR array. Buyers needing motorised pan-tilt or built-in analytics will need a different platform.
Highlights
- Full HD 1080p clarity for detailed surveillance footage
- Vari-focal 2.8~12mm lens adjusts viewing angle precisely
- 40 IR LEDs deliver clear night vision at 0 Lux
- IP68-rated housing withstands harsh outdoor environments
- Dual HD-SDI and analog output simplifies system integration
Specifications
| Brand | Bluecctv |
|---|---|
| Model | BL UH B142V |
Questions about this item
Should I pick the 2.8mm or 12mm end of the varifocal range?
The 2.8~12mm DC auto-iris lens lets you adjust the field of view on site; choose the wide end for broad coverage or the tele end for tighter detail on distant objects.
What does 1080p mean when the camera is connected to a recorder?
The sensor delivers a 1080p image at 1000+ TVL, giving full HD detail over the HD-SDI output while also providing an analog fallback.
Will the HD-SDI signal work over my existing RG59 cable?
The manufacturer recommends RG59 or RG6 with crimp or compressed connectors for reliable HD-SDI transmission.
