Grey four-channel DVR with four vandal-proof dome cameras

Bluecctv

Bluecctv BL-NM04E1-B 4CH 1080P HD-SDI Surveillance Security System

SKU CH-EDER-RNWW3

A four-channel HD-SDI DVR records 1080p video and includes four vandal-proof dome cameras with 24 infrared LEDs, 3.6 mm fixed lenses and Panasonic CMOS sensors for 1000 TV line resolution

  • 4-channel 1080p recording captures every detail
  • 24 IR LEDs deliver clear 0-lux night vision
  • 1000 TV lines resolution provides sharp daytime footage
  • Gigabit Ethernet enables remote smartphone monitoring
  • 6 mm mega-pixel lens covers wide areas

4CH HD-SDI Surveillance System

The Bluecctv BL-NM04E1-B is a four-channel HD-SDI digital video recorder paired with four vandal-resistant dome cameras. It records at 1080p resolution and supports 720p and 1080i HD-SDI formats. The package suits installers who need a complete analogue-HD kit without supplying their own hard drive.

Sustained Recording Behaviour

The DVR accepts continuous 1080p streams from all four cameras through coaxial HD-SDI links. Gigabit Ethernet enables remote multi-user access and smartphone viewing via the CatchEye app on iPhone and Android. Relay alarm outputs and sensor inputs allow automated responses during extended monitoring sessions.

Build Quality and Connections

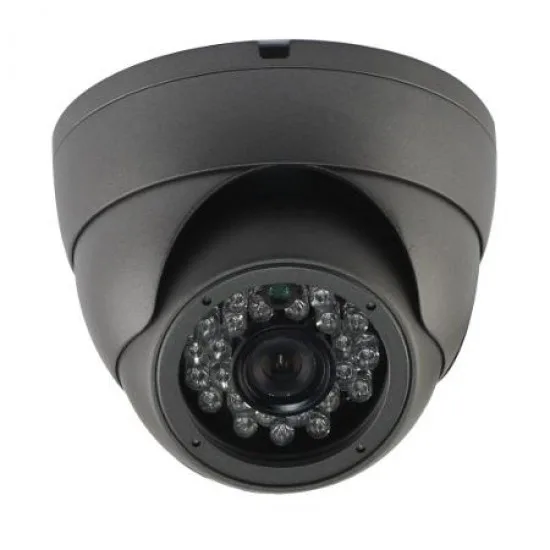

Each grey dome camera houses a 1/3" Panasonic CMOS sensor with 24 IR LEDs for 0 lux night vision and a 3.6mm mega-pixel fixed lens. Dual video outputs provide both HD-SDI and analogue signals for flexible cabling. The Korean-made DSP (EN773A) drives true day/night switching, WDR and digital noise reduction inside a vandal-proof housing rated for indoor and outdoor use.

Highlights

  • 4-channel 1080p recording captures every detail
  • 24 IR LEDs deliver clear 0-lux night vision
  • 1000 TV lines resolution provides sharp daytime footage
  • Gigabit Ethernet enables remote smartphone monitoring
  • 6 mm mega-pixel lens covers wide areas

Specifications

BrandBluecctv
ModelBL-NM04E1-B

Questions about this item

How much heat and power does the 4CH HD-SDI DVR draw when recording 1080p video around the clock?

The recorder itself is a barebone unit without a pre-installed hard drive, so total heat and power will depend on the drive you add; the DVR chassis alone runs from a standard external power adapter.

What must I already own to make the 3.6 mm fixed-lens cameras show live 1080p video on a monitor?

You need an HDMI or VGA display, a hard drive for the DVR to record to, and the supplied 24 IR LED cameras connect directly to the recorder over coaxial cable.

Can the dual HD-SDI and analogue outputs on the cameras feed an older analogue DVR while the new recorder captures 1080p?

Yes, each camera provides both an HD-SDI signal for the Bluecctv DVR and a simultaneous analogue output that can be patched into an existing analogue recorder or monitor.
