Bluecctv 8-channel passive video balun receiver hub, metal chassis, BNC and RJ-45 ports, 11.4 by 6.7 by 1.8 inches

Bluecctv

Bluecctv BL-EV08P-VPS 8CH Passive Video Balun Receiver & Power Supply Hub

SKU CH-BG7S-MWEYZ

An eight-channel passive video balun receiver with integrated power supply hub transmits 12 V DC up to 750 ft over UTP Cat5e/6 and provides 60 dB common-mode rejection from 15 kHz to 5 MHz

  • 8-channel passive receiver simplifies multi-camera cabling
  • 12 V DC power delivery over Cat5e up to 750 ft
  • 60 dB common-mode rejection reduces signal interference
  • Compact 11.4 x 6.7 x 1.8 in hub fits tight enclosures
  • Supports 24-16 AWG UTP for flexible wiring choices

8CH Passive Video Balun Hub

The Bluecctv BL-EV08P-VPS is an 8-channel passive video balun receiver that also functions as a power supply hub. It enables security installers to transmit video signals and deliver 12V DC power over a single UTP cable run. The unit is designed for new CCTV installations requiring consolidated wiring.

Video transmission over UTP

Each channel supports a frequency response range of DC-5MHz with common-mode and differential-mode rejection of 60dB type across 15KHz-5MHz. The hub accepts 24-16AWG CAT5 or higher cable and matches 100O UTP impedance to 75O BNC coax. DC loop resistance is rated at 18O per 100m with differential capacitance of 62pF/m maximum.

Installers running long cable runs

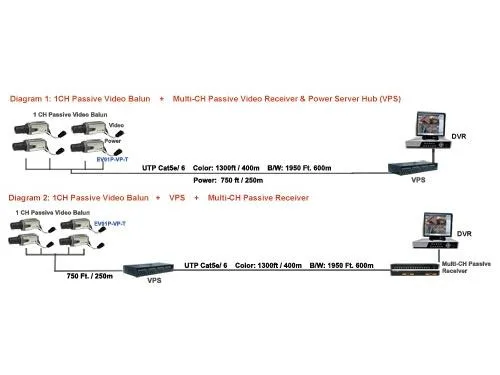

This hub suits installers who need to send 12V DC power up to 750 ft via Cat5e or Cat6 alongside video. It is not intended for users who require active signal amplification or transmission beyond the specified distance. Builders needing more than eight channels should look at a different solution.

Highlights

  • 8-channel passive receiver simplifies multi-camera cabling
  • 12 V DC power delivery over Cat5e up to 750 ft
  • 60 dB common-mode rejection reduces signal interference
  • Compact 11.4 x 6.7 x 1.8 in hub fits tight enclosures
  • Supports 24-16 AWG UTP for flexible wiring choices

Specifications

BrandBluecctv
ModelBL-EV08P-VPS

Questions about this item

How does the 5 MHz frequency response affect video quality over long UTP runs?

The DC-5 MHz range supports standard analog camera signals up to 750 ft on Cat5e or Cat6, with 60 dB common-mode rejection from 15 KHz to 5 MHz to reduce interference.

What does the 100 Ω UTP impedance mean for cable selection and distance?

The balun matches 100 Ω UTP (RJ-45) to 75 Ω BNC coax, allowing 24-16 AWG Cat5 or higher cable with a maximum DC loop resistance of 18 Ω per 100 m.

What physical space and mounting options suit the 11.4 × 6.7 × 1.8 inch enclosure?

The hub measures 11.4 inches wide, 6.7 inches deep and 1.8 inches high, weighs 4.3 lbs, and can be placed on a shelf or wall-mounted using its integrated flanges.
