Bluecctv four-channel passive video balun receiver and power hub in a rectangular metal enclosure

Bluecctv

Bluecctv BL-EV04P-VPS 4CH Passive Video Balun Receiver & Power Supply Hub

SKU CH-Z9PW-88KX0

Receives four passive video balun signals and supplies 12 V DC power up to 750 ft over UTP Cat5e/6 cable

  • Four-channel passive balun receives video over UTP cable
  • 12 V DC power delivered up to 750 ft via Cat5e/6
  • 60 dB common-mode rejection from 5 kHz to 5 MHz
  • Supports 24–16 AWG UTP with 100 Ω impedance matching
  • Compact 7.9" x 6.7" x 1.8" hub weighs 2.3 lb

4-Channel Passive Video Balun Hub

The Bluecctv BL-EV04P-VPS combines a four-channel passive video balun receiver with an integrated power supply hub. It converts signals between 75-ohm BNC coax and 100-ohm UTP connections for structured cabling installations. The unit supports 24 to 16 AWG CAT5 or higher cable with a frequency response from DC to 5 MHz. Common-mode rejection reaches 60 dB typical across the 5 kHz to 5 MHz range.

Installers running multi-camera UTP infrastructure

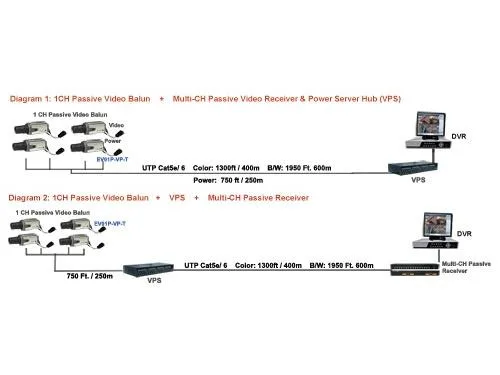

This hub suits installers who need to terminate four camera feeds over twisted-pair cable while delivering 12 V DC power up to 750 ft via Cat5e or Cat6. The passive design requires no local power at the camera end, simplifying remote mounting. It is not intended for runs exceeding the specified distance, for active signal amplification needs, or for single-channel conversions where a four-port device adds unnecessary cost and rack space.

Four channels with 750 ft power reach

Each channel handles video over UTP with a differential capacitance of 62 pF per metre maximum and a DC loop resistance of 18 ohms per 100 metres. The hub delivers 12 V DC to cameras at distances up to 750 feet over Cat5e or Cat6 cable. The chassis measures 7.9 by 6.7 by 1.8 inches and weighs 2.3 pounds. Headroom ends when cable length, resistance, or voltage drop exceed the rated specifications for the wire gauge in use.

Highlights

  • Four-channel passive balun receives video over UTP cable
  • 12 V DC power delivered up to 750 ft via Cat5e/6
  • 60 dB common-mode rejection from 5 kHz to 5 MHz
  • Supports 24–16 AWG UTP with 100 Ω impedance matching
  • Compact 7.9" x 6.7" x 1.8" hub weighs 2.3 lb

Specifications

BrandBluecctv
ModelBL-EV04P-VPS

Questions about this item

What type of cable do I need to connect cameras to the 4CH passive video balun receiver?

Use 24-16AWG UTP CAT5 or higher cable with RJ-45 connectors for the UTP side and BNC connectors for the coax side.

Will the 12V DC power transmission over UTP Cat5e or 6 interfere with my existing analogue cameras?

The hub sends 12V DC up to 750 ft via the same UTP cable carrying video; the 60dB common-mode rejection keeps the power and video signals separate.

How can I verify the balun is passing video correctly after I wire it up?

Check for a stable picture at the DVR; the frequency response of DC-5MHz and 100Ω UTP to 75Ω BNC impedance matching should give a clean image.
