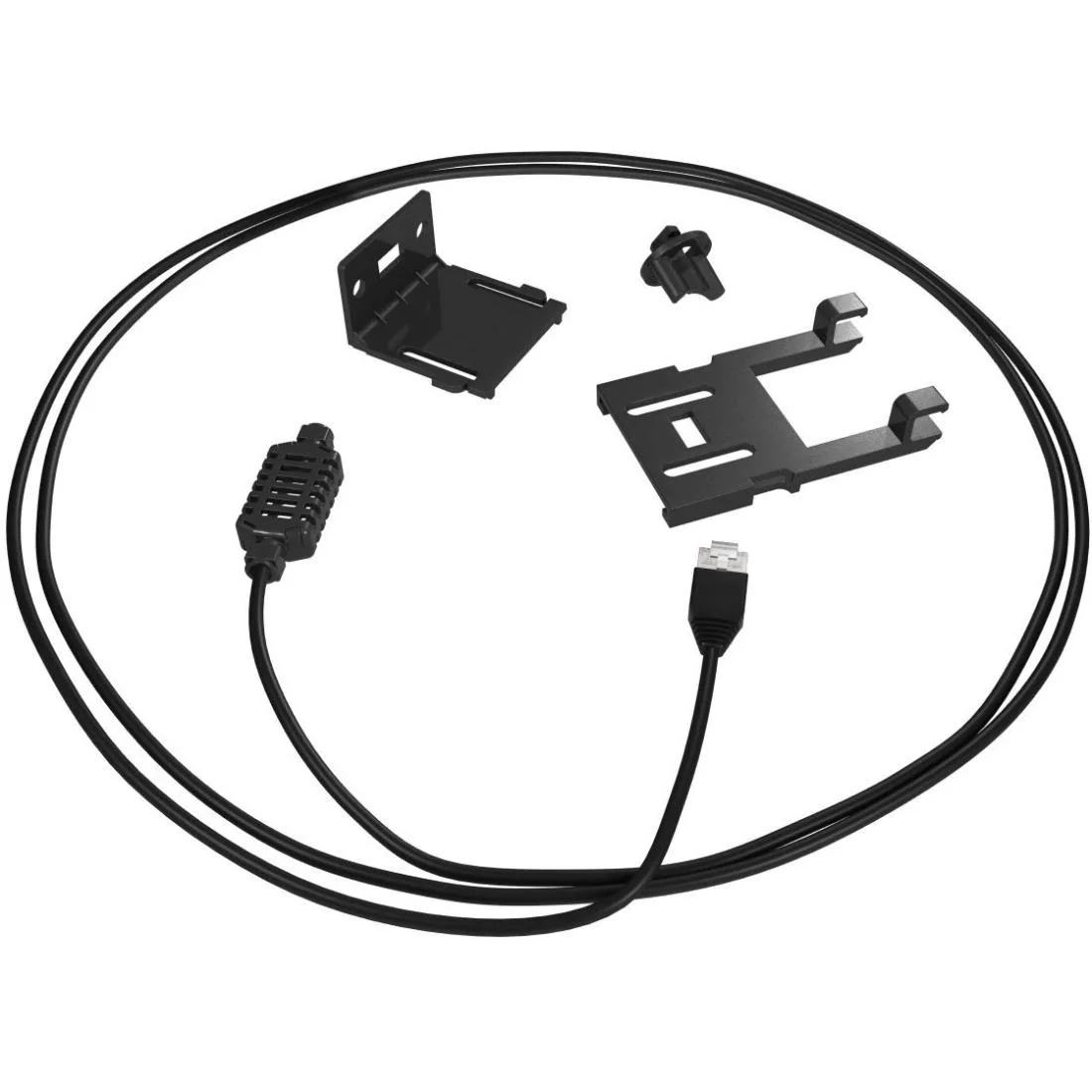

Liebert SN-Z03 Temperature & Humidity Sensor surveillance accessory
- Temperature & Humid…
$229.99
0.00269369BTC
In stock
Bluecctv
Bluecctv BL-EV04P 4CH Passive Balun Transceiver
Transmits four video channels over UTP cable with passive balancing and 60 dB common-mode rejection up to 6 MHz
- Transmits four video channels over a single UTP cable
- Passive design needs no external power supply
- 60 dB common-mode rejection from 15 kHz to 6 MHz
- 100 Ω UTP to 75 Ω BNC impedance matching
- Compact 3.2" x 3.2" x 1.1" housing weighs 0.2 lb
Bluecctv BL-EV04P 4CH Passive Balun Transceiver
The Bluecctv BL-EV04P is a 4CH passive video transceiver designed to carry CCTV signals over unshielded twisted-pair cabling. It connects four BNC cameras to a single CAT5 or higher UTP link without external power. The unit measures 3.2" x 3.2" x 1.1" and weighs 0.2 lb.
Installers running multi-camera sites over
This device suits installers who need to run four analogue video channels over existing or new UTP infrastructure up to the supported frequency range. It is not for buyers who require active signal amplification for longer cable runs. It is not for systems needing built-in transient protection or separate power distribution over the same cable.
100 ohm UTP to 75 ohm BNC impedance matching
The transceiver presents 100 ohms on the RJ-45 side and 75 ohms on each BNC port, with common-mode rejection of 60 dB typical from 15 kHz to 6 MHz. The DC loop resistance is 18 ohms per 100 m on 24 AWG wire. This impedance match is the specification that determines whether the balun integrates cleanly with the camera and recorder ends.
Highlights
- Transmits four video channels over a single UTP cable
- Passive design needs no external power supply
- 60 dB common-mode rejection from 15 kHz to 6 MHz
- 100 Ω UTP to 75 Ω BNC impedance matching
- Compact 3.2" x 3.2" x 1.1" housing weighs 0.2 lb

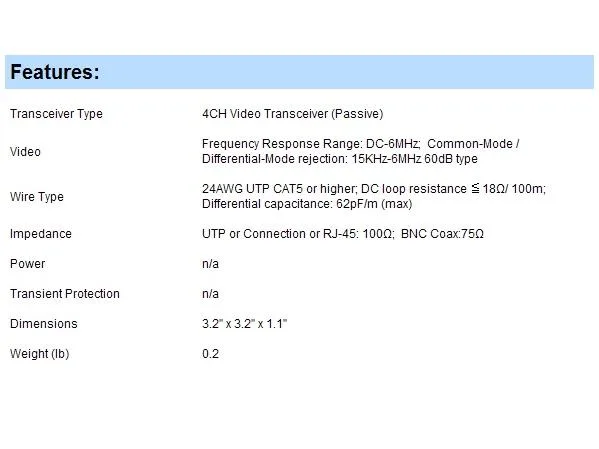

Specifications
| Brand | Bluecctv |
|---|---|
| Model | BL-EV04P |
Questions about this item
What is the maximum video frequency response range of the BL-EV04P?
The response range is DC to 6MHz, supporting common-mode and differential-mode rejection from 15KHz to 6MHz at 60dB typical.
Does the BL-EV04P require external power to operate?
No, this is a passive transceiver and does not require a power connection to function.
What type of cable is required to connect cameras to the BL-EV04P?
It requires 24AWG UTP CAT5 or higher cable with RJ-45 connections for the UTP side and BNC connectors for the coaxial side.
