Blackmagic Design DeckLink 8K Pro Cinema capture card with four 12G-SDI ports

Blackmagic Design Pty. Ltd.

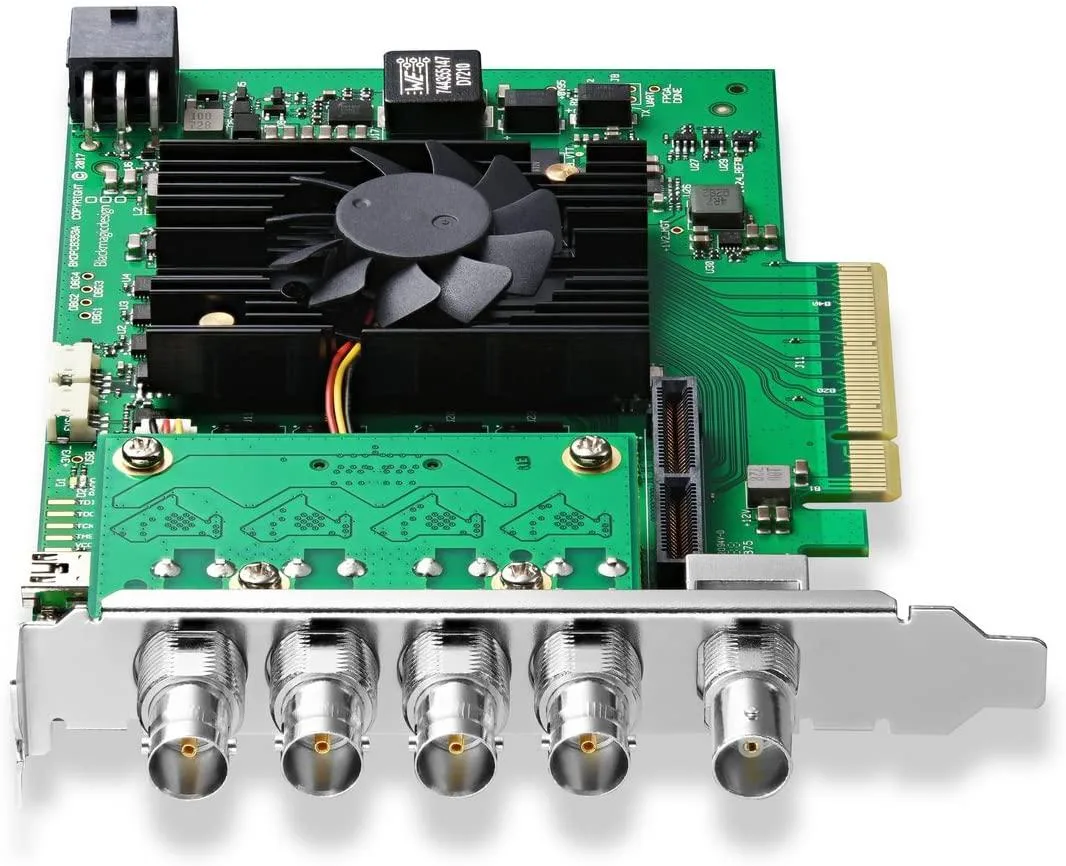

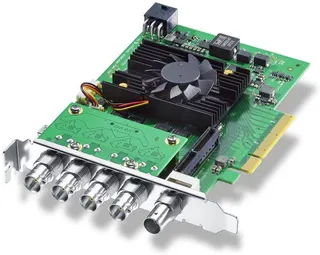

Blackmagic Design DeckLink 8K Pro Cinema video capturing device

SKU CH-W0PE-6ZH7G

Captures up to 8K DCI at 60 fps via four bi-directional 12G-SDI connections with 12-bit RGB 4:4:4 Rec. 2020 color

  • Four bi-directional 12G-SDI connections for flexible I/O
  • Captures SD through 8K DCI frame sizes
  • 8 and 10-bit YUV 4:2:2 plus 10 and 12-bit RGB 4:4:4
  • Full Rec. 2020 color space for wide gamut
  • Up to 60 frames per second at HD, 4K and 8K

8K DCI capture for professional workflows

The Blackmagic Design DeckLink 8K Pro Cinema is a video capturing device built for high-end production environments. It handles SD, HD, Ultra HD, 4K and 8K DCI frame sizes through four bi-directional 12G-SDI connections. Color pipelines include 8 and 10-bit YUV 4:2:2 alongside 10 and 12-bit RGB 4:4:4 with full Rec. 2020 coverage. The card operates at up to 60 frames per second across HD, 4K and 8K resolutions.

PCIe installation with cable management focus

Install the card into a compatible PCIe slot and secure the bracket; the four 12G-SDI ports sit on the rear bracket for direct cable runs. Ensure the host system provides sufficient bandwidth for multi-channel 8K ingest, as bottlenecks here are the most common cause of dropped frames. Use certified 12G-SDI cables rated for the intended length to maintain signal integrity at 8K DCI. Driver installation follows standard Blackmagic Desktop Video procedures on supported operating systems.

Suited for multi-channel 8K mastering

This device suits facilities mastering 8K DCI content, broadcasters running simultaneous 4K or 8K feeds, and colour-critical pipelines needing full Rec. 2020 RGB 4:4:4. It is not for users who only require single-stream HD or 4K capture, as the four-port 12G-SDI architecture adds cost and complexity unnecessary for simpler workflows. Teams without a PCIe desktop platform or certified 12G cabling infrastructure should evaluate alternative I/O solutions.

Highlights

  • Four bi-directional 12G-SDI connections for flexible I/O
  • Captures SD through 8K DCI frame sizes
  • 8 and 10-bit YUV 4:2:2 plus 10 and 12-bit RGB 4:4:4
  • Full Rec. 2020 color space for wide gamut
  • Up to 60 frames per second at HD, 4K and 8K

Specifications

No published specifications for this item yet.

Questions about this item

How can I verify the DeckLink 8K Pro Cinema is capturing correctly after installation?

Open Blackmagic Media Express or your chosen capture software, select one of the four 12G-SDI inputs, and confirm the preview shows the expected resolution up to 8K DCI at 60 frames per second with 10 or 12-bit RGB 4:4:4 Rec. 2020 colour.

What comes in the box with the DeckLink 8K Pro Cinema and what must I source separately?

The card itself is supplied; you will need to provide 12G-SDI cables for each of the four bi-directional connections and a compatible PCIe slot in your workstation.

Which version of the DeckLink 8K Pro Cinema should I choose for 8K 60 fps workflows?

The single model listed supports all SD, HD, Ultra HD, 4K and 8K DCI frame sizes at up to 60 frames per second in HD, 4K and 8K, so no alternative version is required.
