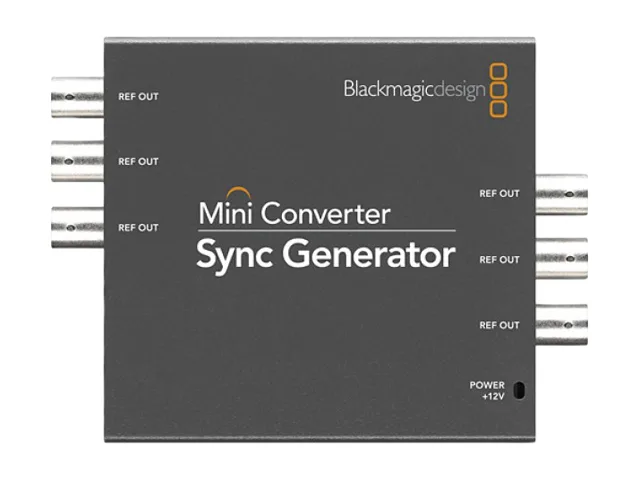

Compact metal box with six BNC connectors on one face

Blackmagic Design Pty. Ltd.

Blackmagic Design CONVMSYNC Mini Converter sync generator 6 BNC outputs

SKU CH-NJ77-6482M

Generates six BNC reference outputs of Black Burst or Tri-Level Sync across selectable SD and HD television standards

  • VideoReference Output x 6 Analog Black Burst or Tri-Level Sync, o
  • Power Supply12VDC on an AC Power Adapter
  • SpecificationTelevision System: 625/25 PAL 525/29.97 NTSC 1080PsF23.98 10
  • FeatureThe Blackmagic Design CONVMSYNC is a sync generator. This ge
  • Package ContentCONVMSYNC Universal Power Supply
  • Six BNC outputs distribute reference signal to multiple devices
  • Selectable SD and HD formats cover PAL NTSC and 1080i 720p standards
  • Dip-switch control sets video standard without a computer
  • 12 VDC adapter powers unit from mains supply
  • Cable tie point locks power connector to prevent accidental disconnect

Sync generator for broadcast racks

The Blackmagic Design CONVMSYNC is a compact sync generator built for professional video facilities. It delivers stable reference signals in both high-definition and standard-definition formats. Installers can mount it in the front or rear of equipment racks to save space. A built-in cable tie point secures the power connection against accidental disconnection.

Six BNC outputs with selectable standards

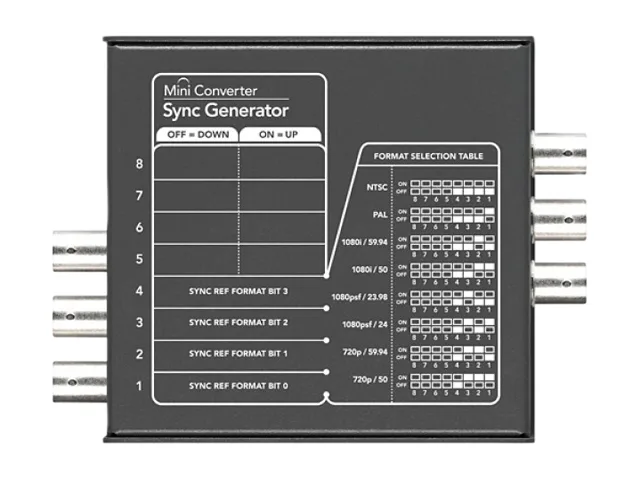

The unit provides six BNC connectors that each carry either analog black burst or tri-level sync. A dip-switch bank selects the television system from 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 720p50 or 720p59.94. This makes it the right part when a facility needs multiple identical reference feeds from one generator.

Powers from a 12 V DC adapter

The converter ships with a universal 12 V DC power supply that plugs into AC mains. It comfortably handles distributing reference to six destinations such as cameras, switchers or routers. It runs out when a workflow requires more than six outputs or needs genlock input for cascading multiple generators.

Highlights

  • Six BNC outputs distribute reference signal to multiple devices
  • Selectable SD and HD formats cover PAL NTSC and 1080i 720p standards
  • Dip-switch control sets video standard without a computer
  • 12 VDC adapter powers unit from mains supply
  • Cable tie point locks power connector to prevent accidental disconnect

Specifications

BrandBlackmagic Design
ModelCONVMSYNC
VideoReference Output x 6
Analog Black Burst or Tri-Level Sync, on BNC connectors
Power Supply12VDC on an AC Power Adapter
SpecificationTelevision System:
625/25 PAL
525/29.97 NTSC
1080PsF23.98
1080PsF24
1080i50
1080i59.94
720p50
720p59.94
Selectable
Control: Dip Switch Format Selection
FeatureThe Blackmagic Design CONVMSYNC is a sync generator. This generator will generate a reference signal in either high definition or standard definition parmeters. It is part of the Mini Converter series and offers six BNC outputs.
Space Saving
Broadcast Converter models are extremely compact, so you can install in the front or rear side of equipment racks, saving valuable equipment space.
Security
This device features a handy cable tie point to lock the power down tight and prevent your power being disconnected.
Formats
Many video standards are supported including, NTSC, PAL, 1080i/59.
Package ContentCONVMSYNC
Universal Power Supply
Shipping weight0.52 kg
Package size140 × 133 × 64 mm

Questions about this item

What does six BNC reference outputs mean for a live production rack?

Six BNC outputs let you feed the same reference signal to six separate devices — cameras, switchers, recorders or monitors — so the whole chain locks to one timing source without daisy-chaining or distribution amps.

Which video standards can the dip switches select, and what frame rates do they cover?

The dip switches choose among 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 720p50 and 720p59.94, covering both standard-definition and high-definition tri-level or black burst formats.

What physical mounting space does the Mini Converter need in a rack?

The compact Mini Converter chassis fits in the front or rear of a standard equipment rack, and a built-in cable tie point secures the 12 V DC power adapter to prevent accidental disconnection.
