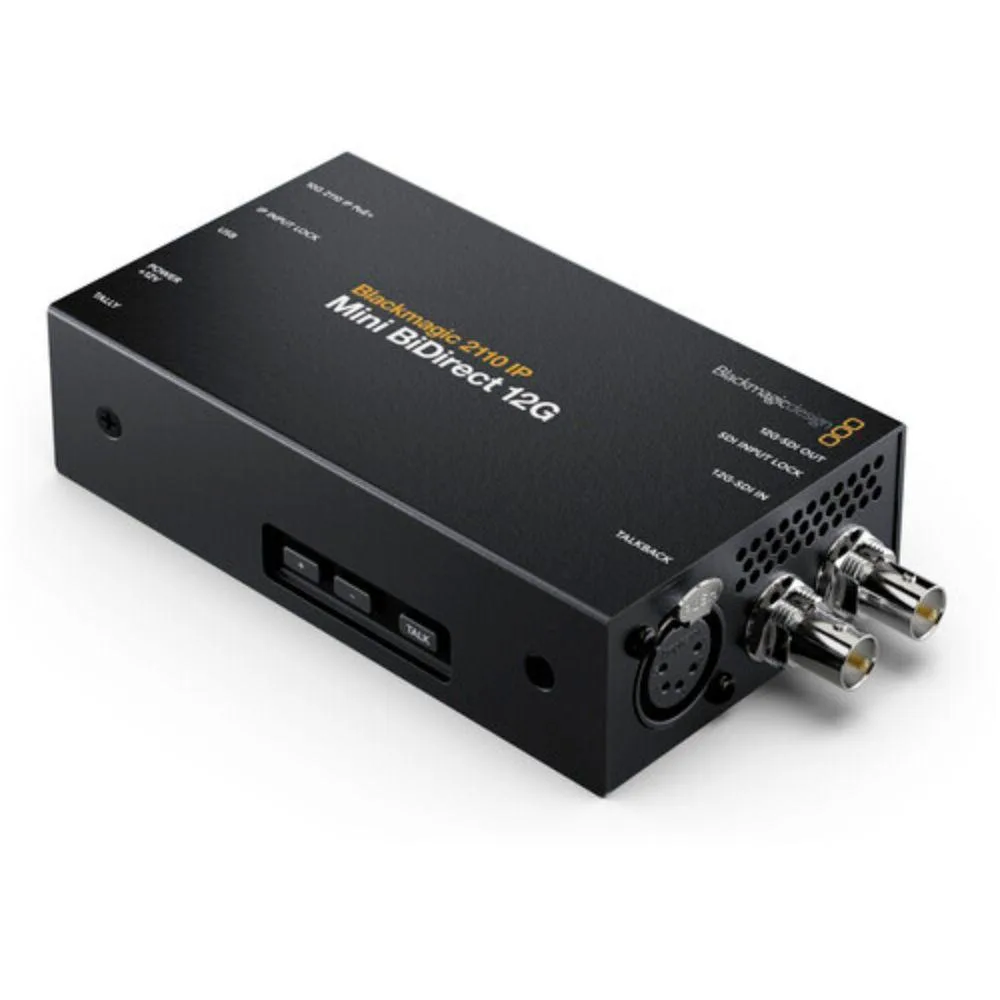

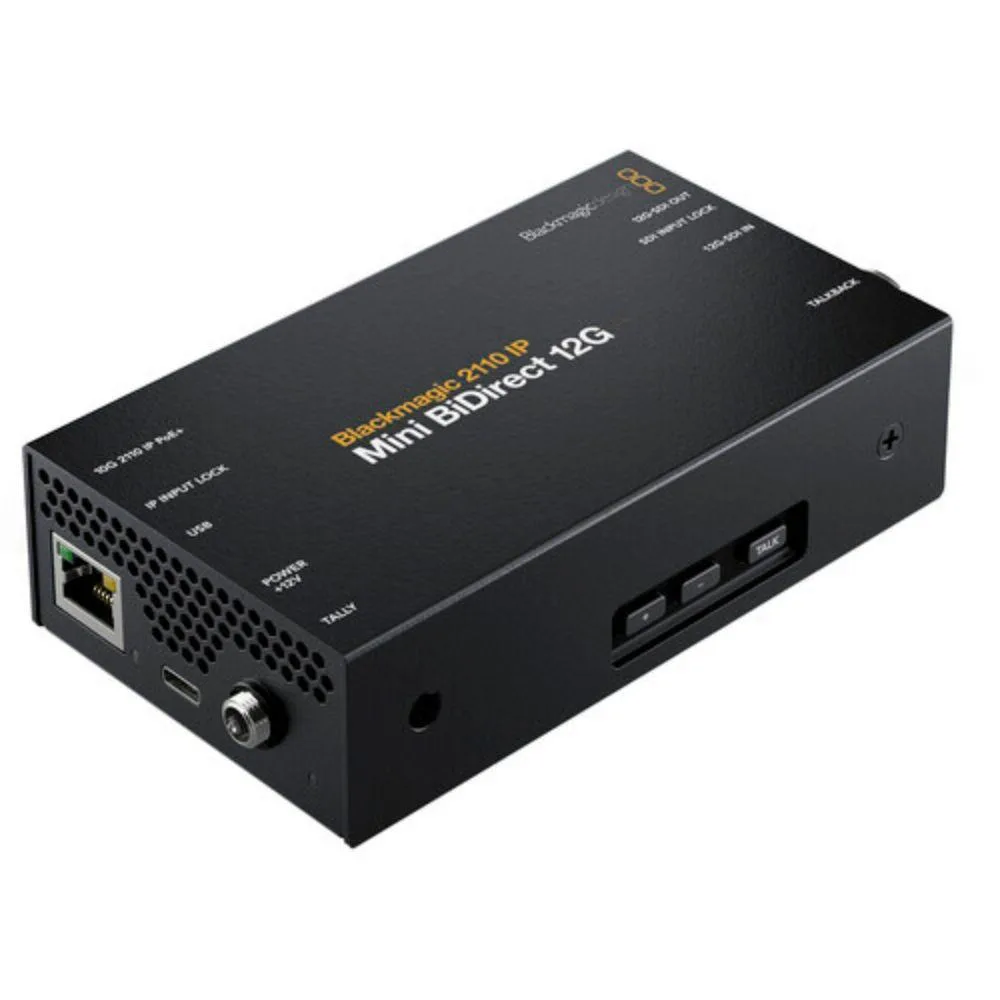

Small black converter with SDI BNC ports, XLR talkback jack, Ethernet and DC power input

Blackmagic Design Pty. Ltd.

Blackmagic Design 2110 IP Mini BiDirect 12G audio video converter

SKU CH-227T-8X369

Converts 12G-SDI camera feeds to and from SMPTE 2110 IP with UHD 4K up to 2160p60, includes talkback XLR and PoE power

  • Bidirectional 12G-SDI to SMPTE-2110 IP conversion for studio cameras
  • UHD 4K video up to 2160p60 over 10G Ethernet
  • 5-pin XLR talkback with press-to-talk for crew communication
  • Powered by PoE or included 12 VDC supply for flexible rigging
  • Windows and macOS utility for configuration and monitoring

12G-SDI to SMPTE-2110 bidirectional converter

The Blackmagic Design 2110 IP Mini BiDirect 12G connects a 12G-SDI studio camera to SMPTE-2110 IP infrastructure. It handles camera video and program return simultaneously in a single compact unit. The device mounts directly onto a camera rig for tight integration. Power is supplied via PoE or the included 12 VDC supply.

For broadcast crews moving to IP workflows

This converter suits operators who need UHD 4K transport up to 2160p60 over 10G Ethernet with integrated talkback. It is not for installations that require only one-way SDI-to-IP conversion or that lack 10G network capacity. Teams without a 5-pin XLR headset will not use the talkback feature.

Mounts on the camera and plugs into 10G Ethernet

The unit draws power from PoE or the bundled 12 VDC adapter, freeing a separate power brick on the rig. A 5-pin XLR headset connects for talkback with volume and press-to-talk controls. Windows and macOS software utility manages the IP settings. The converter replaces separate transmit and receive boxes in the signal chain.

Highlights

  • Bidirectional 12G-SDI to SMPTE-2110 IP conversion for studio cameras
  • UHD 4K video up to 2160p60 over 10G Ethernet
  • 5-pin XLR talkback with press-to-talk for crew communication
  • Powered by PoE or included 12 VDC supply for flexible rigging
  • Windows and macOS utility for configuration and monitoring

Specifications

No published specifications for this item yet.

Questions about this item

What 12G-SDI camera gear do I need to connect to this converter?

Any broadcast studio camera with a 12G-SDI output can be linked to the converter for UHD 4K transport over SMPTE-2110 IP.

Can I keep my existing SD or HD monitors while using this converter?

Yes, the converter handles all SD, HD and UHD standards up to 2160p60, so legacy monitors remain compatible.

How do I confirm the talkback headset is active after setup?

Plug a 5-pin XLR headset, adjust the volume knob and press the talk button; sidetone and the LED indicator show the link is live.
