Black rectangular HDMI-over-IP receiver with front panel controls and RJ45 port

Black Box Corporation

Black Box VX-HDMI-HDIP-RX MediaCento IPX HD Extender Receiver

SKU CH-HDK7-6AQ3F

Extends HDMI video and 7.1 surround audio up to 328 feet over Gigabit Ethernet with PoE and front-panel setup

  • TypeHDMI over Ethernet
  • Max Extend Distance328 feet
  • ColorBlack
  • SpecificationsAudio: Supports high-definition audio (HD) 5.1/6.1/7.1 surro
  • Connector AHDMI female
  • Connector BRJ45 Ethernet
  • Supports 1080p HD video over a Gigabit Ethernet network
  • Extends HDMI signals up to 328 feet using Cat5e/6 cable
  • Powers the receiver through PoE IEEE 802.3at Class 4, no external supply needed
  • Configures directly from the front panel with rotary channel selection across 16 channels
  • Delivers 7.1-channel surround sound including Dolby TrueHD and DTS-HD Master Audio

HDMI-over-IP Extender Receiver

The Black Box VX-HDMI-HDIP-RX receives 1080p HDMI video and multi-channel audio over a Gigabit Ethernet network at distances up to 328 feet. It supports high-definition surround formats including Dolby TrueHD and DTS-HD Master Audio up to 7.1 channels at 192 kHz. Power is supplied through PoE compliant with IEEE 802.3at Class 4, removing the need for an external adapter.

Replacing Direct HDMI Cabling

This receiver replaces point-to-point HDMI runs when the source and display are separated by more than a standard cable length. The jump is worth it for installations that require routing through existing network infrastructure or that need to distribute one source to multiple screens across a building. It also enables video wall configurations up to 8x8 displays when paired with compatible transmitters and the MediaCento Controller.

Installations Using MediaCento Ecosystem

The unit suits integrators building matrix switching or video wall systems within the MediaCento product family, especially where front-panel setup without software is preferred. It is not suited for applications requiring 4K resolution pass-through, for standalone point-to-point extension without a managed network switch, or for environments outside the 0 to 50 °C operating temperature range.

Highlights

  • Supports 1080p HD video over a Gigabit Ethernet network
  • Extends HDMI signals up to 328 feet using Cat5e/6 cable
  • Powers the receiver through PoE IEEE 802.3at Class 4, no external supply needed
  • Configures directly from the front panel with rotary channel selection across 16 channels
  • Delivers 7.1-channel surround sound including Dolby TrueHD and DTS-HD Master Audio

Specifications

BrandBlack Box
ModelVX-HDMI-HDIP-RX
TypeHDMI over Ethernet
Max Extend Distance328 feet
ColorBlack
SpecificationsAudio: Supports high-definition audio (HD) 5.1/6.1/7.1 surround sound: Dolby TrueHD, DTS-HD Master Audio LPCM channels up to 7.1 channels 192 kHz
Operating Humidity: 0 to 80% relative humidity
Operating Temperature: 32° to 122° F (0° to 50° C)
PoE: Complies with IEEE 802.3at standard, Class 4;
Power: Normal input: 48 VDC;
Input Range: 36 to 57 VDC
Power: (1) External 5 VDC, 3 A
Power Consumption: POE: 10.5 W
Storage Temperature: -4° to +140° F (-20° to +60° C)
User Controls:
B1: Set/Reset Pushbutton;
B2: Function Selection Pushbutton;
Rotary switch: Select from 16 Video Channels (HEX
Connector AHDMI female
Connector BRJ45 Ethernet
FeaturesBetter video: supports up to 1080p HD (High Def).
Better configuration: Setup units using only the front panel interface, no additional configuration required.
Better compatibility: Intercompatible with the MediaCento 4k
Any source to any screen, over IP.
Extend HDMI video signals over a Gigabit Ethernet network.
Create eye-catching video walls of up to 8x8 displays.
PoE power eliminates external power supplies.
Use with the MediaCento Controller for matrix switching and video wall control.
See the same content on multiple screens exactly the same time - maximum latency 2 frames or 3

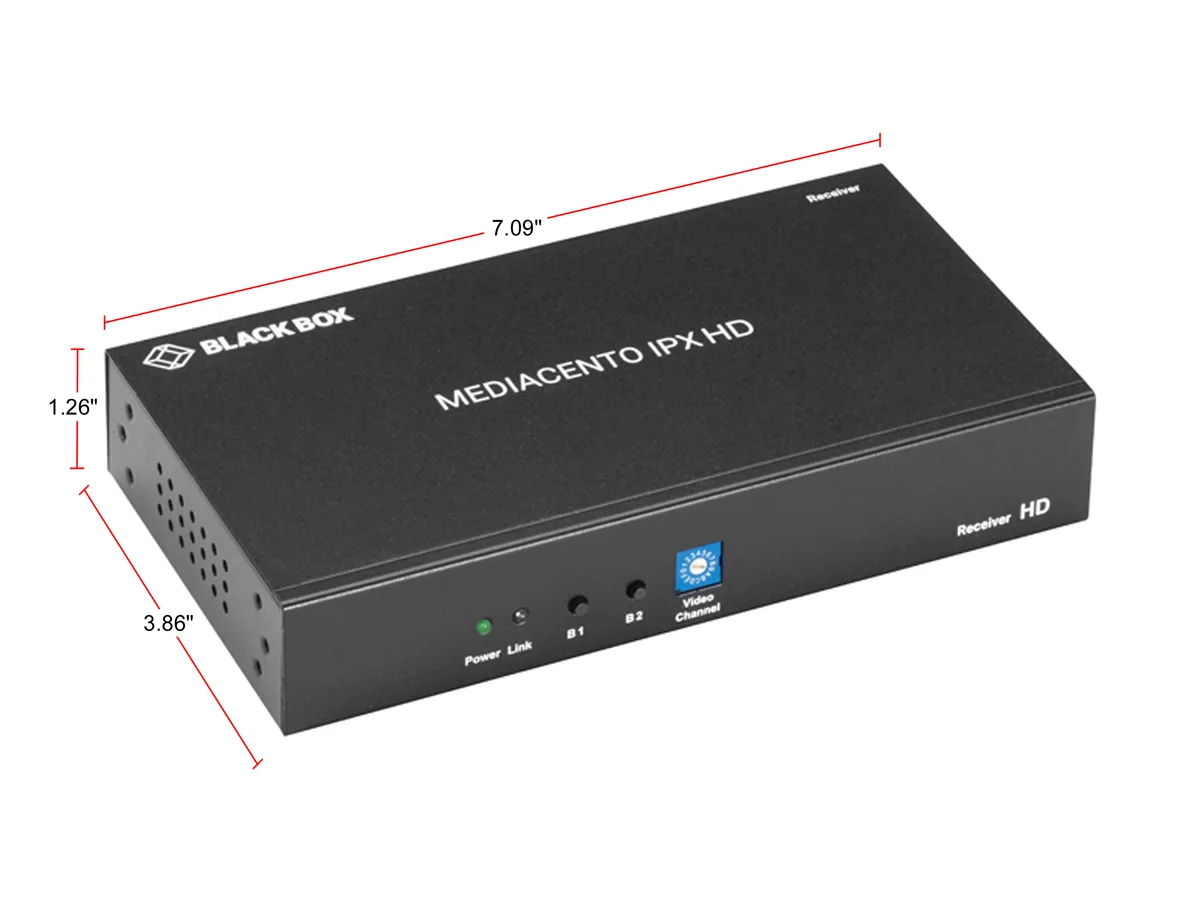

Dimensions1.26"H x 7.09"W x 3.86"D
Weight1.04 lbs.
Shipping weight0.91 kg
Package size254 × 203 × 76 mm

Questions about this item

What are the exact dimensions and weight of the receiver so I can confirm it fits my rack or shelf?

The unit measures 1.26 inches high by 7.09 inches wide by 3.86 inches deep and weighs 1.04 lbs.

How do I set the video channel on the front panel and what is the common mistake to avoid?

Use the rotary switch to select one of 16 hex channels (0–F); both the paired transmitter and this receiver must be set to the identical channel or no signal will pass.

Does the receiver need an external power supply or can it run entirely from the network cable?

It supports PoE under IEEE 802.3at Class 4 at 10.5 W, so a compatible switch can power it without the 5 VDC 3 A adapter.
