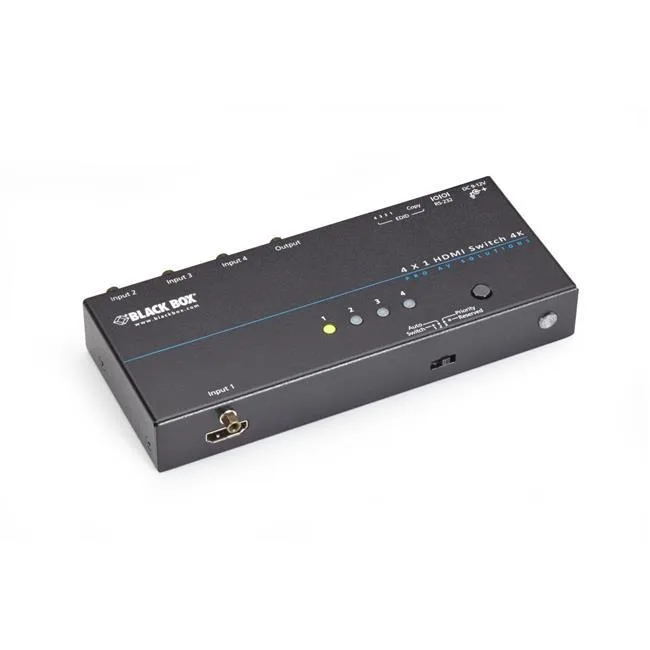

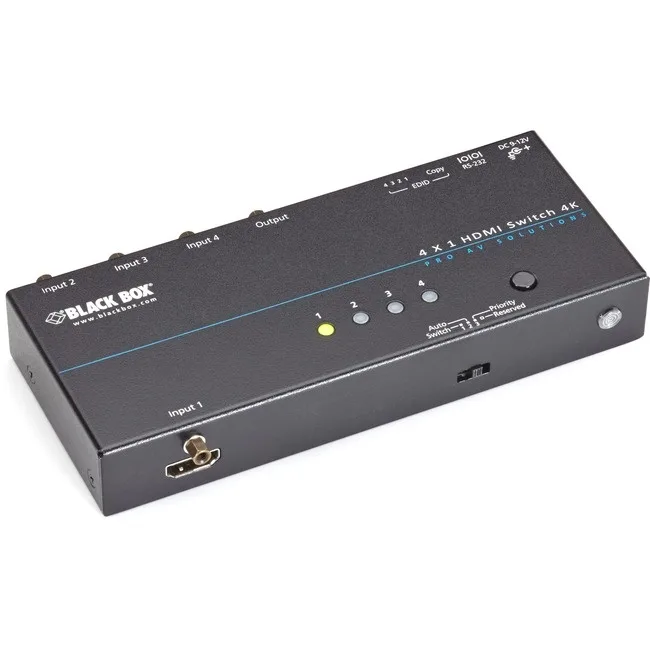

Black rectangular HDMI switch with front panel buttons and multiple ports

Black Box Corporation

Black Box VSW-HDMI4X1-4K 4K HDMI video switch 4x1

SKU CH-629N-ARX4K MPN VSW-HDMI4X1-4K

A 4×1 HDMI switch routes four sources to one display at up to 3840×2160 with automatic input selection and front-panel, IR or serial control

  • Type4K HDMI Switch
  • ColorBlack
  • PortsInput: 1 x HDMI Female Output: 4 x HDMI Female
  • SpecificationsThe 4K 4 x 1 HDMI Switch enables switching between four HDMI
  • Maximum Resolutions3840 x 2160
  • FeaturesSupports up to 4K (UHD) resolution (3840 x 2160). Mandatory
  • Switch four HDMI sources to one 4K display
  • Auto-switching detects active sources instantly
  • 3D, HDCP and Blu-ray ready out of the box
  • Front-panel buttons, IR remote and serial control
  • Compact 6.1" wide rack-mountable design

4K HDMI Switch for Four Sources

The Black Box VSW-HDMI4X1-4K routes four HDMI inputs to a single display. It handles 4K UHD resolution at 3840 x 2160 and supports mandatory 3D video, HDCP compliance and Blu-ray playback. Rack-mountable dimensions are 6.1 inches wide, 3 inches deep and 1 inch high. Weight is 1.50 lb.

Four Inputs to One Output

The unit provides four HDMI female inputs and one HDMI female output. Smart auto switching detects an active source and selects it automatically. Advanced EDID management preserves the correct display settings. Control options include front-panel push buttons, an IR remote and a serial connection.

Power Supply and Documentation Included

A universal power supply and a U.S. power cord are bundled so the switch is ready for mains operation. A user manual covers installation and configuration. The product carries RoHS 2 and WEEE environmental certifications and originates from Taiwan.

Highlights

  • Switch four HDMI sources to one 4K display
  • Auto-switching detects active sources instantly
  • 3D, HDCP and Blu-ray ready out of the box
  • Front-panel buttons, IR remote and serial control
  • Compact 6.1" wide rack-mountable design

Specifications

BrandBlack Box
ModelVSW-HDMI4X1-4K
Part NumberVSW-HDMI4X1-4K
Type4K HDMI Switch
ColorBlack
PortsInput: 1 x HDMI Female
Output: 4 x HDMI Female
SpecificationsThe 4K 4 x 1 HDMI Switch enables switching between four HDMI sources to a single display. The switch supports resolutions up to 4K (UHD) and has a smart auto switching function that enables the device to automatically switch to a source when it becomes active. Advanced EDID functionality enables the switch to either read and copy EDID automatically from screens, or audio/video EDID information can be copied manually.
Maximum Resolutions3840 x 2160
FeaturesSupports up to 4K (UHD) resolution (3840 x 2160).
Mandatory 3D-video, HDCP compliant, and Blu-ray ready.
Smart auto switching function that enables device to automatically switch to a source when it becomes active.
Switch between four different HDMI sources to a single display.
Advanced EDID functionality ensures accurate output display.
Control via front panel push buttons, IR remote control, serial connection.
Weight1.95
Shipping weight0.91 kg
Package size229 × 152 × 76 mm

Questions about this item

Will the 3840 x 2160 resolution work on my 4K monitor without scaling issues?

The switch passes 3840 x 2160 resolution with advanced EDID functionality that ensures the display receives the correct signal information for native output.

Does the HDCP compliance cover current streaming services and Blu-ray playback?

The unit is HDCP compliant and Blu-ray ready, so protected content from streaming devices and disc players will pass through to the display without handshake errors.

What are the exact dimensions for mounting this 1.50 lb switch in a rack?

The unit measures 1 inch high, 6.1 inches wide and 3 inches deep, and is described as rack-mountable for standard installations.
