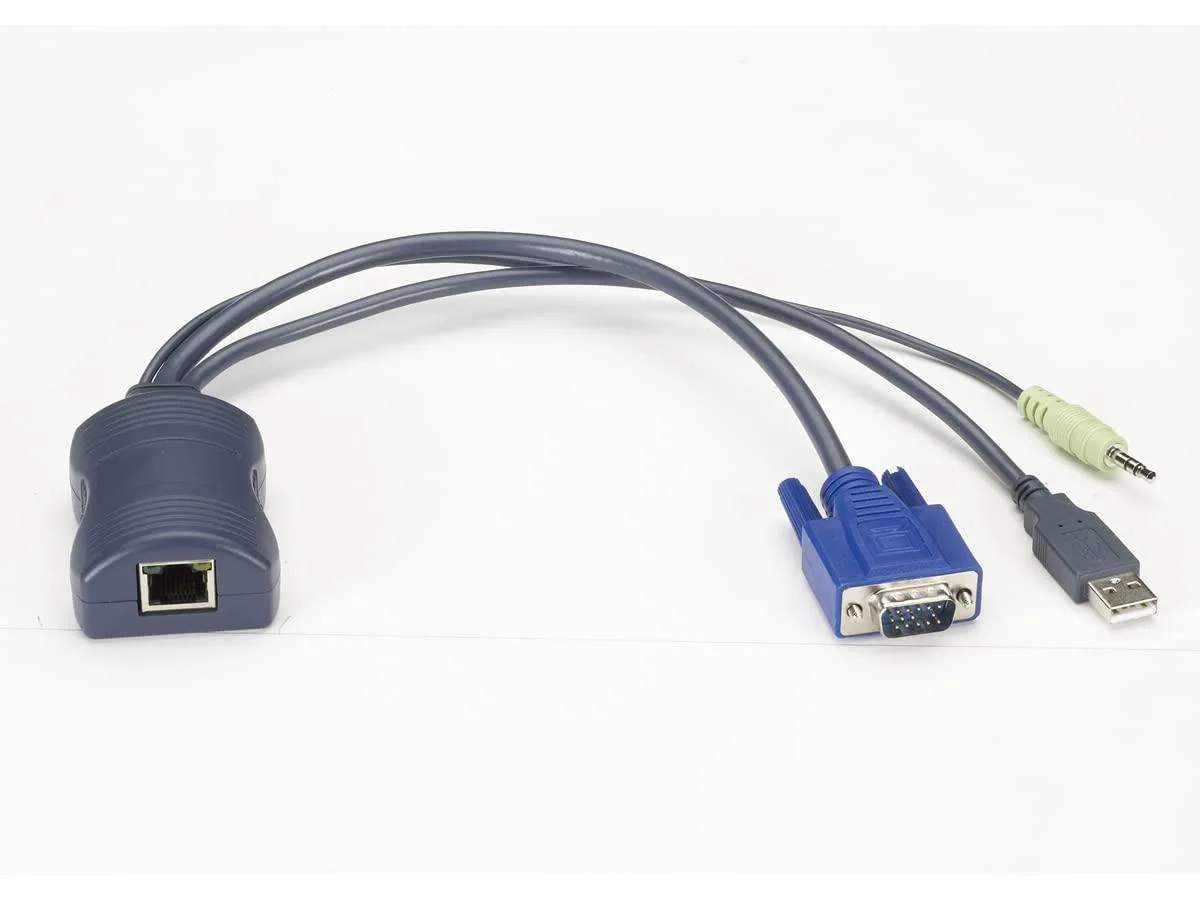

Black Box KV1403A KVM cable with RJ-45, VGA, USB and audio connectors, 164.04 ft

Black Box Corporation

Black Box KV1403A VGA USB Audio KVM Cable 164.04 ft

SKU CH-ZFXA-ZE2KT

Connects a server to a KVM switch over 164.04 ft with VGA, USB and audio

  • Place server up to 164 ft away with ServSwitch CX 4-User
  • Keep-alive feature powers module even if switch loses power
  • Flash-upgradable firmware for future compatibility
  • 04 ft cable carries VGA, USB and audio signals
  • Connects via RJ-45 female to HD-15 VGA, USB Type-A and mini-phone audio

Server Access Module for KVM Switches

The Black Box KV1403A connects a server to a compatible KVM switch using a single 164.04 ft cable assembly. It carries VGA video, USB keyboard and mouse signals, and analogue audio through one run. The module draws power from the switch and includes a keep-alive feature that maintains operation if the switch loses power.

Distance Limits by Switch Model

Maximum server-to-switch distance depends on the specific KVM switch used. With a ServSwitch CX 4-User the link reaches 164 feet (50 m). With a ServSwitch CX Uno the limit is 32 feet (10 m). The cable uses copper conductors and terminates in an RJ-45 female connector on the switch side.

Replaces Separate Video USB and Audio Runs

This module consolidates three separate cables into one assembly, reducing clutter in server rooms and equipment racks. It is not suited for installations that require digital video interfaces such as HDMI or DisplayPort, or for distances beyond the stated limits. Flash-upgradable firmware allows future compatibility updates.

Highlights

  • Place server up to 164 ft away with ServSwitch CX 4-User
  • Keep-alive feature powers module even if switch loses power
  • Flash-upgradable firmware for future compatibility
  • 04 ft cable carries VGA, USB and audio signals
  • Connects via RJ-45 female to HD-15 VGA, USB Type-A and mini-phone audio

Specifications

No published specifications for this item yet.

Questions about this item

Should I choose the 164.04 ft length or a shorter KVM cable for my server rack?

Select 164.04 ft when the server sits up to 50 m from a ServSwitch CX 4-User; choose a shorter run if you use a ServSwitch CX Uno, which supports only 10 m.

What does the 164.04 ft distance mean once the cable is installed in a real machine?

It lets you place the server up to 50 m from a ServSwitch CX 4-User or 10 m from a ServSwitch CX Uno while keeping VGA video, USB keyboard/mouse and analogue audio connected.

Which interface does the RJ-45 end use and what distance does it cap in practice?

The RJ-45 female connector carries the KVM link to the switch; the link reaches 50 m with a ServSwitch CX 4-User and 10 m with a ServSwitch CX Uno.
