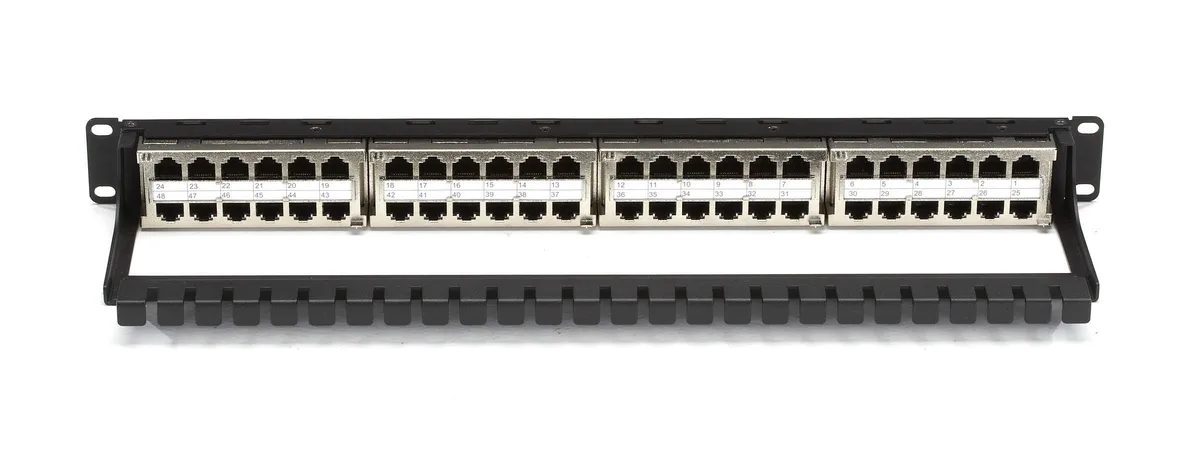

Black Box shielded Cat5e 48-port 1U patch panel, metal front with RJ-45 rows

Black Box Corporation

Black Box Corporation JPM806A-HD Shielded Cat5e 48-Port 1U Patch Panel

SKU CH-HH66-63X0J MPN JPM806A-HD

A shielded Cat5e patch panel with 48 RJ-45 ports in a 1U rack-mountable form factor

  • 48 shielded RJ-45 ports support high-density Cat5e cabling in a single rack unit
  • 1U rack-mountable form factor fits standard 19-inch racks while saving vertical space
  • Shielded construction reduces electromagnetic interference for reliable data transmission
  • Includes mounting hardware, cable ties and station ID labels for complete installation
  • Lifetime limited warranty provides long-term protection for network infrastructure

48-Port Shielded Patch Panel

The Black Box JPM806A-HD is a 1U rack-mountable feed-through patch panel with 48 shielded RJ-45 ports for Cat5e cabling. It targets network administrators and installers who need high-density termination in a single rack unit.

Thermal and Power Profile

As a passive copper patch panel it generates no heat, draws no power and produces no audible noise during operation. Thermal management and power budgeting are therefore not considerations for this unit.

Build and Mounting Details

The steel chassis measures 1.8" high by 19" wide by 6" deep and weighs approximately 2.40 lb. Supplied hardware includes 10-32 and 12-24 cuphead screws plus cable ties and station ID labels for immediate installation.

Highlights

  • 48 shielded RJ-45 ports support high-density Cat5e cabling in a single rack unit
  • 1U rack-mountable form factor fits standard 19-inch racks while saving vertical space
  • Shielded construction reduces electromagnetic interference for reliable data transmission
  • Includes mounting hardware, cable ties and station ID labels for complete installation
  • Lifetime limited warranty provides long-term protection for network infrastructure

Specifications

BrandBlack Box
Shipping weight2.27 kg
Package size508 × 203 × 13 mm

Questions about this item

How do I mount the 1U panel in a 19" rack and which screw set should I use?

Use the four 10-32 cuphead screws for threaded rails or the four 12-24 cuphead screws for unthreaded square holes; the panel is 1.8" high and 19" wide so it occupies exactly one rack unit.

What ongoing maintenance does the shielded Cat5e feed-through panel require?

No scheduled maintenance is needed; the IDC-free feed-through design has no punch-down contacts to re-terminate, so only occasional visual checks of cable ties and port labels are recommended.

What is the first density limit I will hit when populating all 48 ports?

The 1U height and 6" depth restrict cable bend radius and airflow, so the physical space for 48 shielded patch cords becomes the practical limit before any electrical constraint appears.
