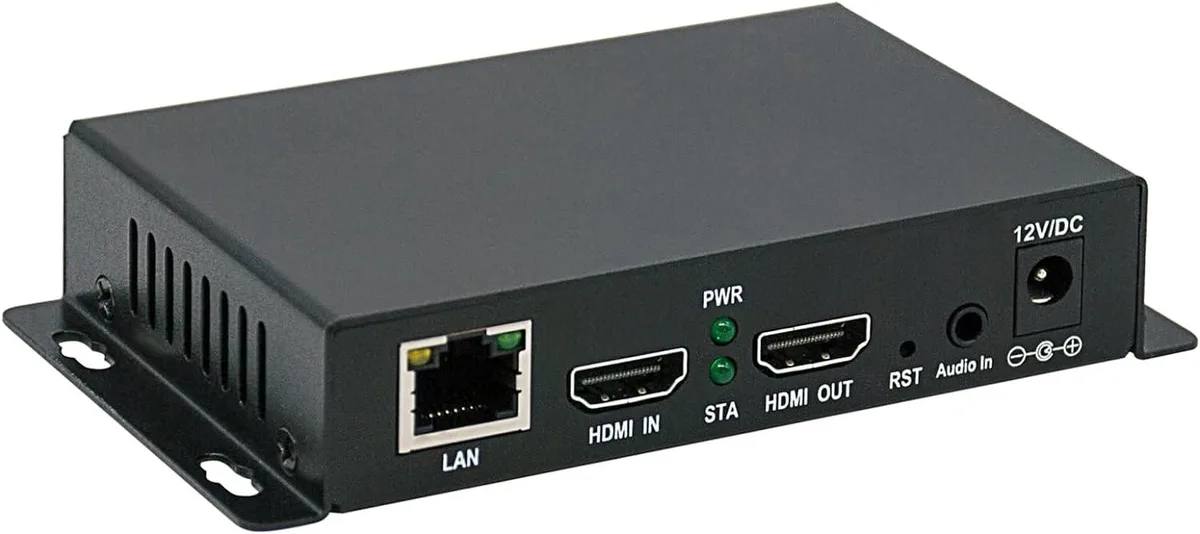

Small black metal box with HDMI ports and RJ45 jack

BFKK

BFKK ZY-EH1201 H.265 HDMI 1080P@30 video encoder with loopout

SKU CH-50XC-9MH69

Compact HDMI encoder streams 1080p30 H.265 video via RTMP, SRT and more with loop-out

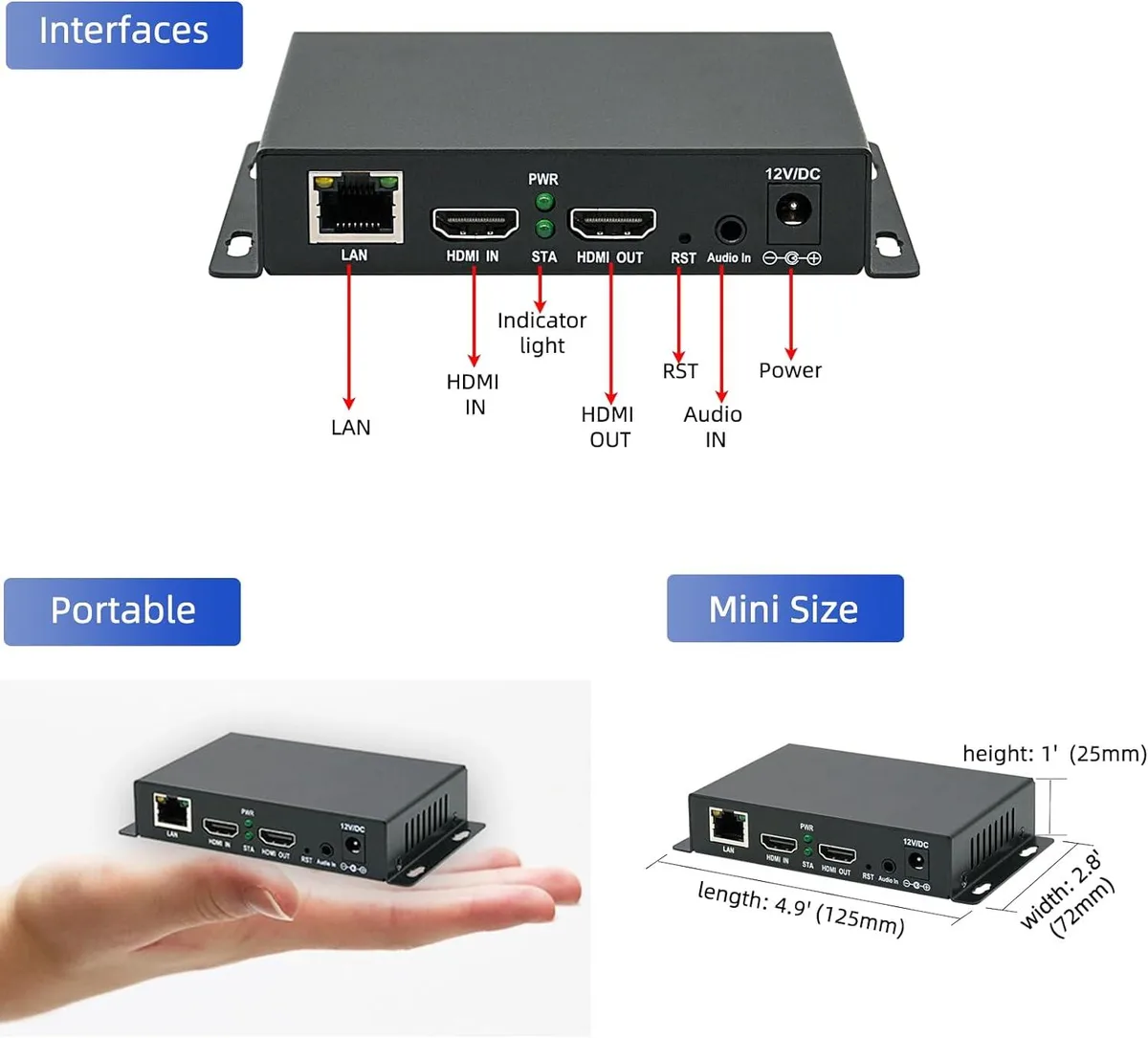

  • Ultra-compact 125×72×25 mm design fits tight installation spaces
  • H.265 and H.264 encoding up to 1080P at 30 Hz
  • Simultaneous dual-stream output with multiple protocol support
  • HDMI 1.4 loop-out passes video to a local display
  • 5 mm audio input enables external sound capture

Compact H.265 encoder for live streaming

The BFKK ZY-EH1201 is an ultra-miniature hardware encoder that accepts HDMI 1.4 input up to 1080p at 30 Hz and delivers simultaneous IP streams using H.265, H.264 or MJPEG. It targets creators and integrators who need a lightweight 200 g device for mobile or space-constrained live productions on platforms such as YouTube, Facebook or Twitch.

Simple network installation with overlay setup

Connect the HDMI source, attach the 100M RJ45 Ethernet port and power the unit; the web interface configures streaming protocols including RTMP, RTMPS, SRT, HLS and GB28181. The loop-out passes the original signal to a local monitor. Take care: only one output channel can run at full 1080p30, and the encoder cannot output multiple 1080p30 streams at once.

Verify source resolution

Confirm your camera or switcher outputs one of the listed resolutions such as 1920×1080 or 1280×720 at 30 Hz over HDMI 1.4 with HDCP 1.4. Audio can be taken from the HDMI embedded stream or the 3.5 mm external input encoded as AAC, MP3 or G.711 at selectable bit-rates. Buyers needing 4K input, 60 Hz frame rates or Wi-Fi connectivity should look elsewhere.

Highlights

  • Ultra-compact 125×72×25 mm design fits tight installation spaces
  • H.265 and H.264 encoding up to 1080P at 30 Hz
  • Simultaneous dual-stream output with multiple protocol support
  • HDMI 1.4 loop-out passes video to a local display
  • 5 mm audio input enables external sound capture

Specifications

No published specifications for this item yet.

Questions about this item

How can I confirm the ZY-EH1201 is streaming correctly after connecting my HDMI source?

Check the web interface for active stream status, verify the loop-out HDMI displays the source, and monitor the network port LEDs for data traffic at up to 20Mbps bit-rate.

What cables and accessories come with the BFKK encoder, and what must I supply?

The unit includes the encoder itself with HDMI 1.4 input, HDMI loop-out, 3.5mm audio jack and RJ45 100M Ethernet port; you must provide HDMI cables, Ethernet cable, power adapter and any external audio source.

Should I choose the 1080P@30 H.265 model or a lower-resolution variant for my live stream?

This ZY-EH1201 supports up to 1920×1080 at 30Hz with H.265/H.264/MJPEG; select it when you need full HD output, otherwise a 720p-only encoder would suffice for lower bandwidth.
