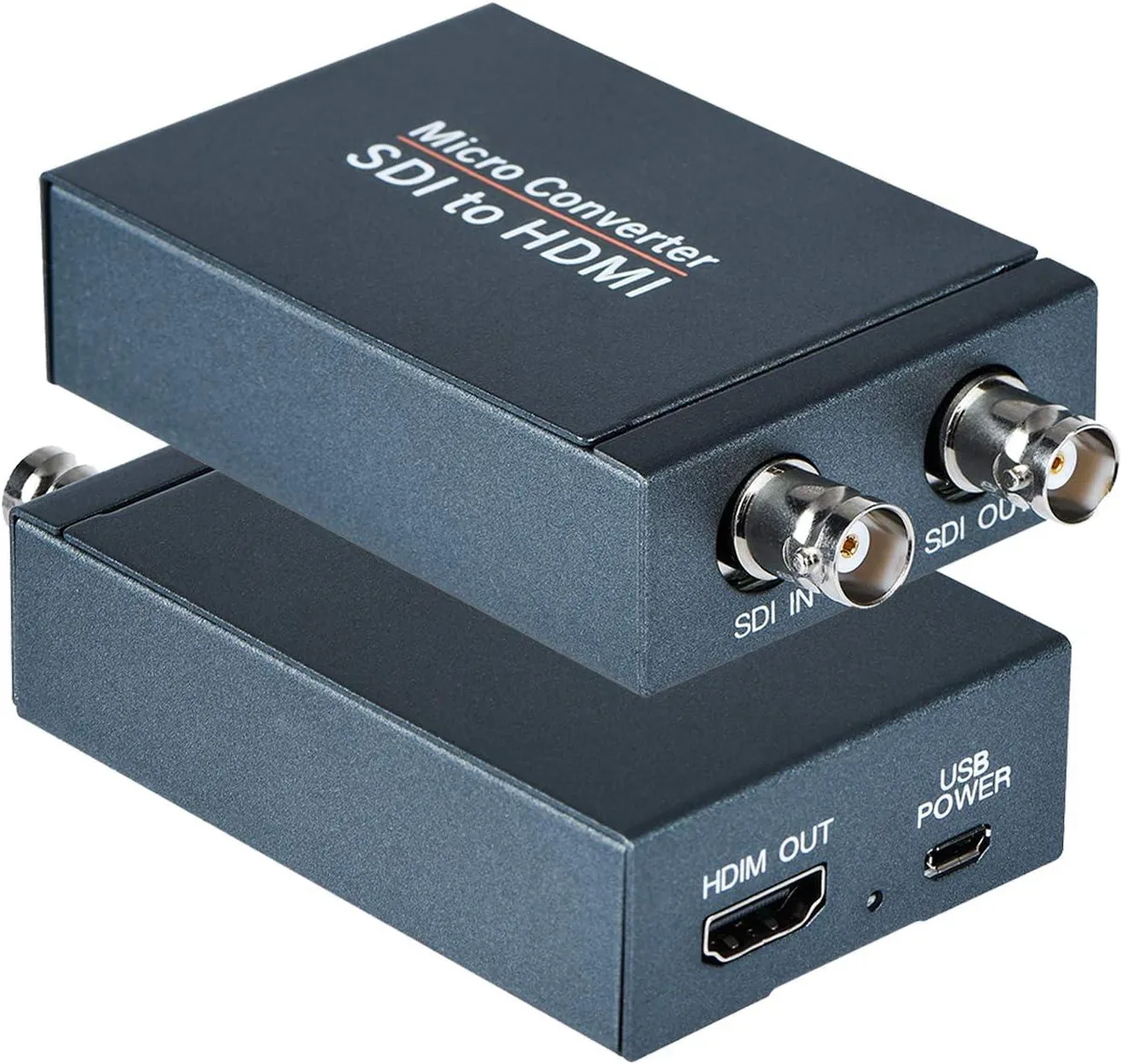

Compact black metal box with SDI input, HDMI output and SDI loop-out ports

BFKK

BFKK SDI to HDMI Converter with SDI Loopout 1080P@60Hz

SKU CH-DCAB-WE9YJ

Converts SDI to HDMI up to 1080p@60Hz with a re-clocked SDI loop output for simultaneous monitoring

  • View on HDMI displays with 1080p60 output
  • Simultaneous SDI monitoring via loop-through port
  • Auto-detects 3G/HD/SD-SDI input formats
  • Re-clocked SDI output extends signal reach
  • Supports SMPTE 425M, 424M, 292M, 259M-C standards

Professional Video Converter

The BFKK SDI to HDMI converter translates serial digital interface signals into HDMI for broadcast monitors, projectors or TVs. It accepts 3G-SDI, HD-SDI and SD-SDI formats with automatic detection, making it suitable for CCTV, camera feeds and SMPTE workflows. This one-way device cannot convert HDMI back to SDI.

Maximum 1080p60 Output

HDMI output is limited to 1080p at 24, 25, 30, 50 or 60 Hz and 720p at 50 or 60 Hz. The converter supports SMPTE 259M-C, 292M, 424M and 425M standards at data rates of 270 Mb/s, 1.485 Gbps and 2.97 Gbps. It does not handle 4K, RF, CVBS, AHD, TVI or CVI signals.

Simple Inline Installation

Connect the SDI source to the input, an HDMI display to the output and optionally a second SDI monitor to the loop-out for simultaneous viewing. The re-clock function allows multiple units to be cascaded, though chaining with other converter types is not recommended. Power the unit, then select the desired resolution on the display.

Highlights

  • View on HDMI displays with 1080p60 output
  • Simultaneous SDI monitoring via loop-through port
  • Auto-detects 3G/HD/SD-SDI input formats
  • Re-clocked SDI output extends signal reach
  • Supports SMPTE 425M, 424M, 292M, 259M-C standards

Specifications

No published specifications for this item yet.

Questions about this item

What does 1080p@60Hz mean when the converter is connected to a display?

The HDMI output will deliver a full HD image at 60 frames per second, matching the highest progressive resolution and refresh rate the unit supports.

Which HDMI standard does the converter comply with and what does that limit?

It follows HDMI 1.3, so the output is capped at 1080p@60Hz with 10-bit deep colour and no 4K or higher bandwidth features.

What physical connections are required to mount the converter in a rack or on a desk?

The unit needs one SDI input cable, one HDMI output cable and an optional SDI loop-out cable; it draws power from an external supply via a barrel jack.
