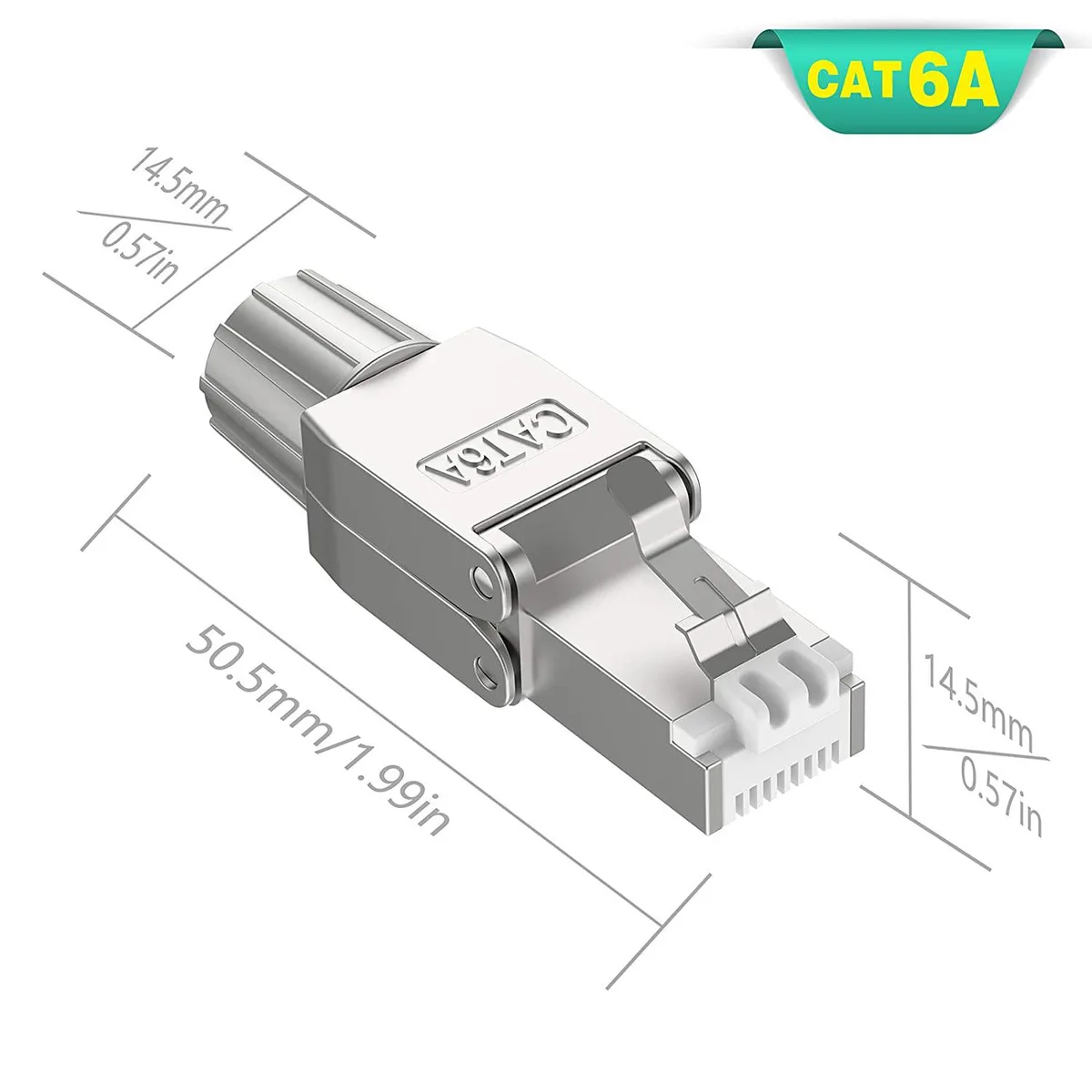

Four shielded RJ45 connectors with zinc alloy housings and tool-free strain relief boots

BFKK

BFKK RJ45 Cat6A Shielded Tool-Free Connectors 4 Pack

SKU CH-RE93-PKWH6

Tool-free shielded RJ45 plugs terminate 22-24 AWG cable for 10 Gbps Cat6A links, reusable and PoE+ compliant

  • Tool-free installation without crimping tools required
  • Reusable nut-type strain relief boot for easy disassembly
  • Supports 22-24 AWG solid or stranded wire up to 8.5mm OD
  • Cat6A 500MHz bandwidth for 10GBase-T speeds
  • Full zinc alloy shielded housing reduces alien crosstalk

Tool-Free Cat6A RJ45 Connectors

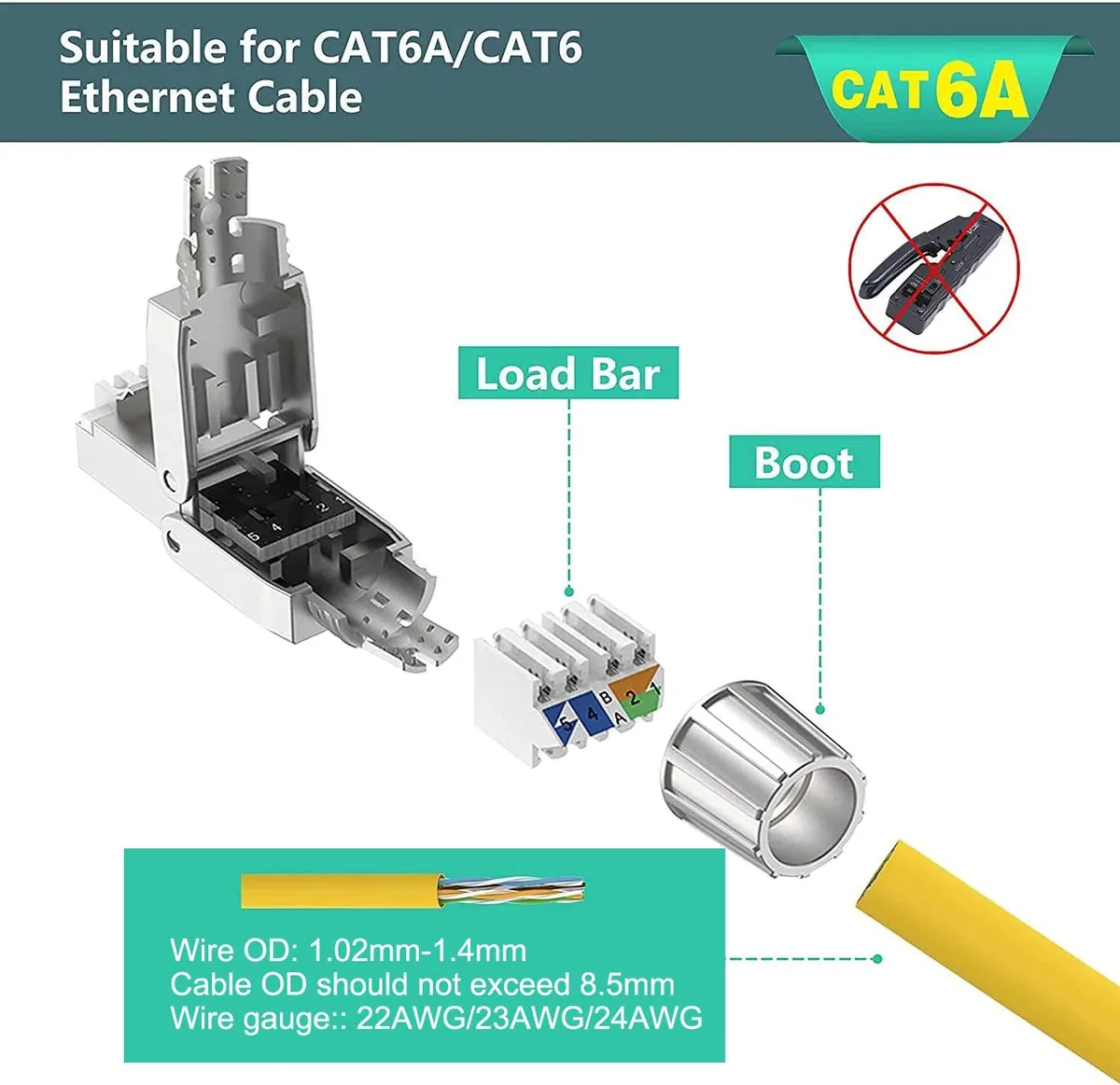

These shielded RJ45 plugs terminate Cat6A solid or stranded cable from 22 to 24 AWG without a crimper. The screw-on strain relief accepts jacket diameters up to 8.5 mm and meets 500 MHz bandwidth for 10GBASE-T links. Gold-plated IDC contacts follow T568A or T568B wiring. Four connectors per pack suit installers and DIY network builds.

Shielded Housing and Thermal Behaviour

The solid zinc-alloy shell provides continuous shielding that suppresses alien crosstalk across the 500 MHz passband. No active cooling is involved so the connector adds no noise and draws no power. PoE+ compliance under IEEE 802.3 at allows the plug to carry powered-device current without temperature rise beyond normal cable heating. The PC body and metal boot maintain signal integrity at typical rack or wall-plate ambient conditions.

Sustained 10GBASE-T Operation

Under continuous 10 Gbps throughput the shielded construction keeps insertion loss and return loss within Cat6A limits. The tool-free IDC termination resists vibration-induced contact degradation better than crimped plugs in patch-panel or field-termination scenarios. Reusable nut-type boot permits re-termination if a wire map error is found during certification testing. Not suited for cables thicker than 8.5 mm OD or conductors outside the 1.02 to 1.4 mm insulated range.

Highlights

  • Tool-free installation without crimping tools required
  • Reusable nut-type strain relief boot for easy disassembly
  • Supports 22-24 AWG solid or stranded wire up to 8.5mm OD
  • Cat6A 500MHz bandwidth for 10GBase-T speeds
  • Full zinc alloy shielded housing reduces alien crosstalk

Specifications

No published specifications for this item yet.

Questions about this item

How do I install the tool-free RJ45 connector without a crimper, and what step do people usually skip?

Strip the cable jacket, arrange wires in the T568A or T568B colour code, insert into the IDC modules, then tighten the screw-on metal strain-relief boot to 8.5 mm cable OD; the step often missed is fully seating each wire before tightening the nut.

What maintenance or replacement will these shielded Cat6A plugs need over time?

The gold-plated contacts and zinc-alloy housing are rated for repeated mating cycles; under normal use no scheduled replacement is needed, but inspect the strain-relief boot threads if the cable is frequently moved.

What is the first performance limit I will hit on a sustained 10 Gbps PoE+ link?

The connector supports 500 MHz bandwidth and 10GBASE-T speeds with IEEE 802.3at PoE+; the practical limit is the 22–24 AWG wire gauge and 1.02–1.4 mm conductor OD range, which governs voltage drop and heating on long runs.
