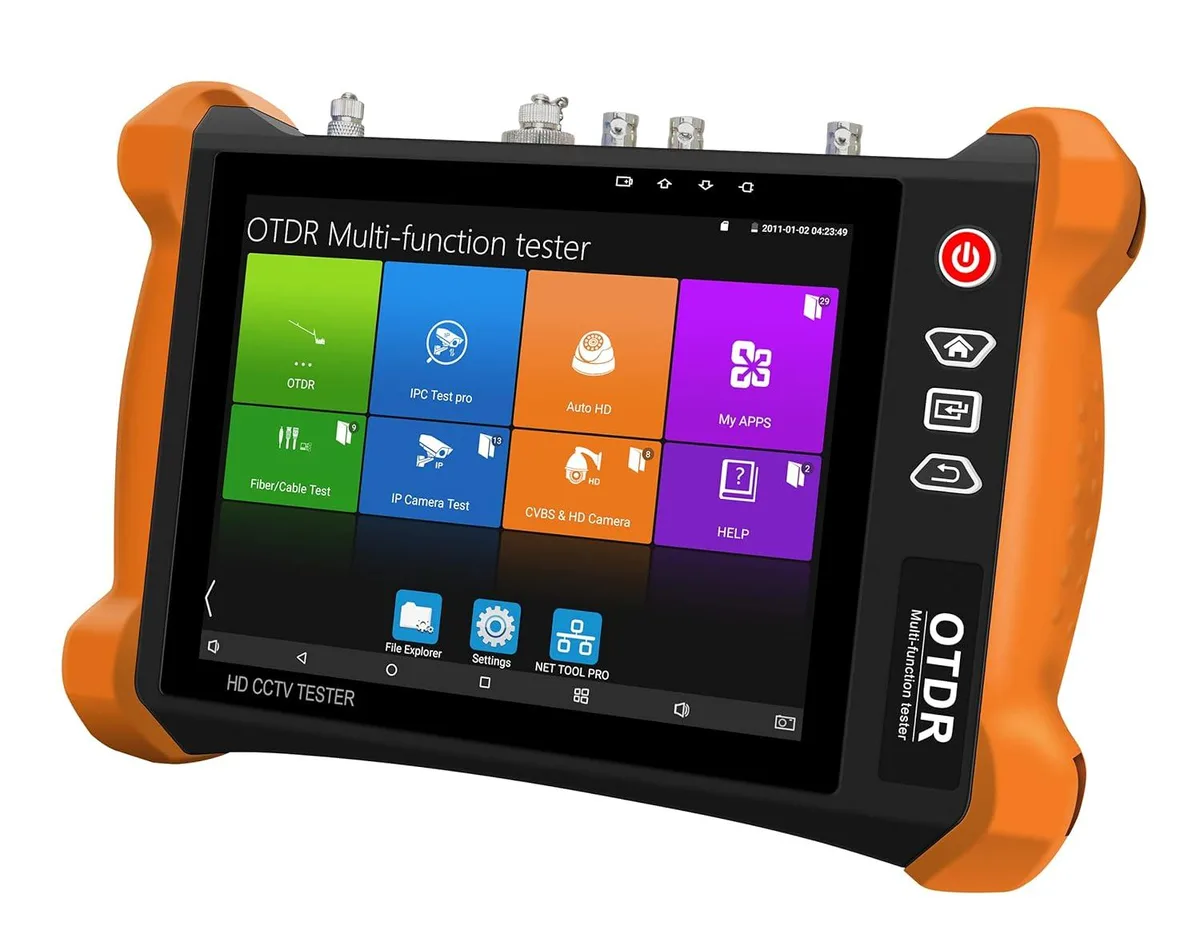

Handheld OTDR tester with 8 inch touch screen, rubberised corners, and multiple ports

BFKK

BFKK Dual Wavelength 1310/1550 OTDR Tester 8 Inch Touch Screen

SKU CH-N2S0-9MMWC

Tests 1310/1550 nm fiber up to 150 km, adds 4K IP camera, TDR cable, Wi-Fi and PoE tools on an 8-inch touch screen

  • Dual 1310/1550 nm wavelengths test fiber links up to 150 km

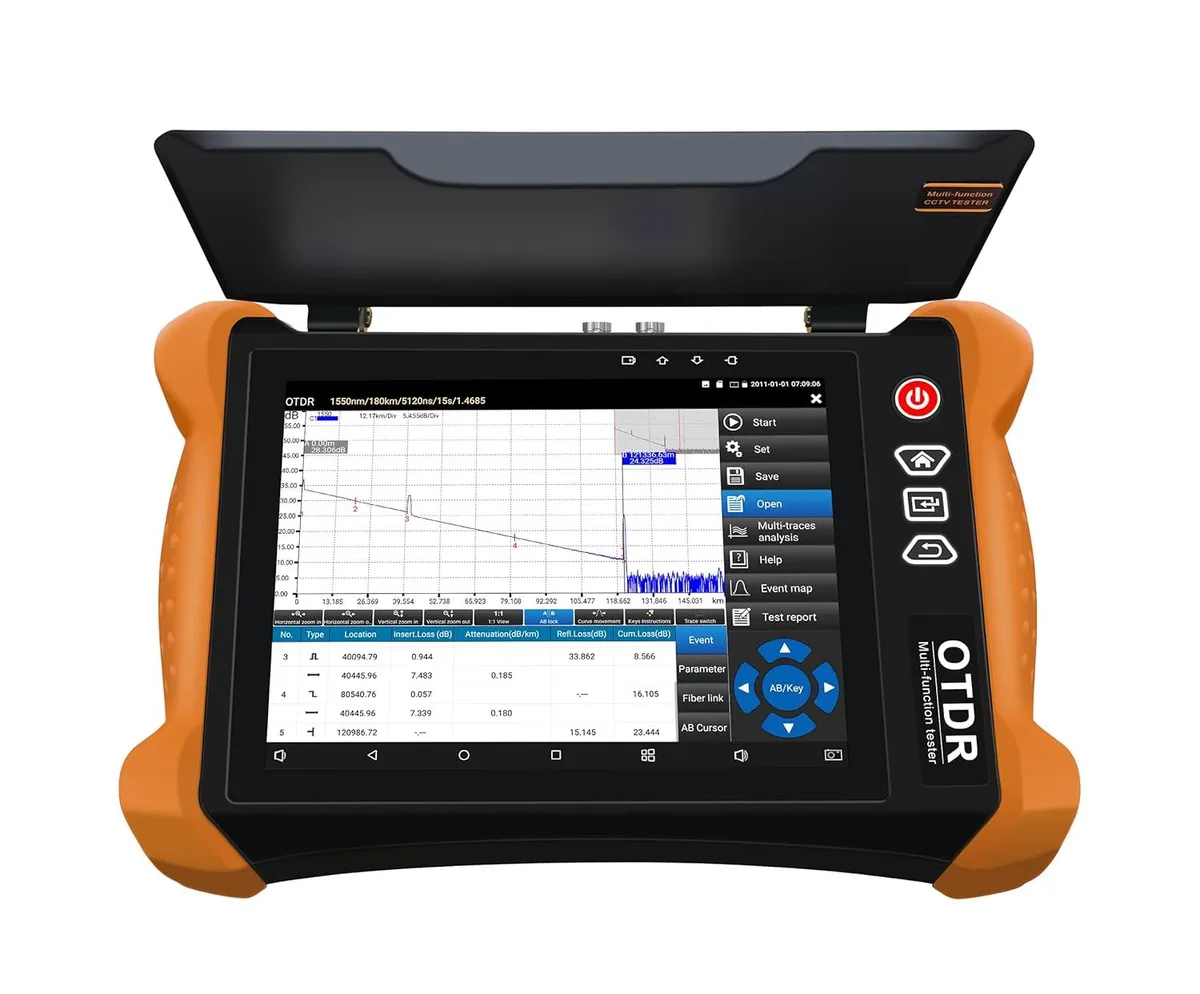

  • 8-inch 1920×1080 Retina touch screen shows traces and video in one view
  • Built-in VFL, TDR and PoE output speed fault finding on copper and fiber
  • 7000 mAh battery delivers 16 hours continuous field operation
  • Stores 30000 OTDR curves with zoom and event analysis for later review

Dual-wavelength OTDR tester for fiber technicians

The BFKK dual-wavelength OTDR tester operates at 1310 and 1550 nm with a maximum test range of 150 km. It performs automatic analysis of link events and fusion points and can store up to 30000 test curves with zoom and pan controls. An 8 inch retina touch screen provides 1920 by 1080 resolution for clear trace viewing. The unit also integrates a 4K IP camera tester, visual fault locator, TDR cable test, PoE output and WiFi diagnostics for CCTV and network installation work.

16-hour battery life with silent operation

A 7000 mAh lithium-ion polymer battery charges in 6 to 7 hours and delivers up to 16 hours of continuous working time. The handheld form factor has no moving parts, so operation is completely silent during fiber verification, cable tracing or network ping tests. Power-over-Ethernet output lets the tester supply connected devices without an external adapter, reducing the number of power supplies carried on site.

Replaces separate OTDR.

This single instrument consolidates an OTDR, RJ45 TDR cable certifier, BNC and network cable tracer, PoE voltage checker, IP camera display and HDMI video monitor. The jump is worth it when a field engineer needs to certify fiber links, troubleshoot copper pairs and verify 4K camera feeds on one charge cycle. It is not suited for buyers who require multi-wavelength OTDR beyond 1310/1550 nm or laboratory-grade spectral analysis.

Highlights

  • Dual 1310/1550 nm wavelengths test fiber links up to 150 km
  • 8-inch 1920×1080 Retina touch screen shows traces and video in one view
  • Built-in VFL, TDR and PoE output speed fault finding on copper and fiber
  • 7000 mAh battery delivers 16 hours continuous field operation
  • Stores 30000 OTDR curves with zoom and event analysis for later review

Specifications

No published specifications for this item yet.

Questions about this item

How do I connect the OTDR to a fiber link for the first test?

Select the 1310 or 1550 wavelength, attach the fiber under test to the OTDR port, then press the automatic analysis button to display events and loss on the 8 inch touch screen.

Which consumable or component will need replacement after heavy field use?

The 7000 mAh lithium-ion polymer battery is rated for 16 hours of operation per charge and will degrade over time, eventually requiring replacement.

What is the maximum fiber length the OTDR can characterise before the trace becomes unreliable?

The instrument specifies a maximum test range of 150 km on either wavelength.
