Handheld 7 inch IPS touch screen CCTV tester with BNC ports and keyboard

BFKK

BFKK 7 Inch Touch Screen 5 in 1 CCTV Tester

SKU CH-TGJK-22HDW

A 7-inch IPS touch-screen tester that checks 8 MP TVI, 5 MP AHD, 4 MP CVI, CVBS and up to 4K IP cameras, provides 12 V DC and 48 V PoE power outputs.

  • TypeOther
  • 7 inch IPS touch screen displays 1280 by 800 resolution
  • Tests IP cameras up to 4K with H.265 and H.264 decoding

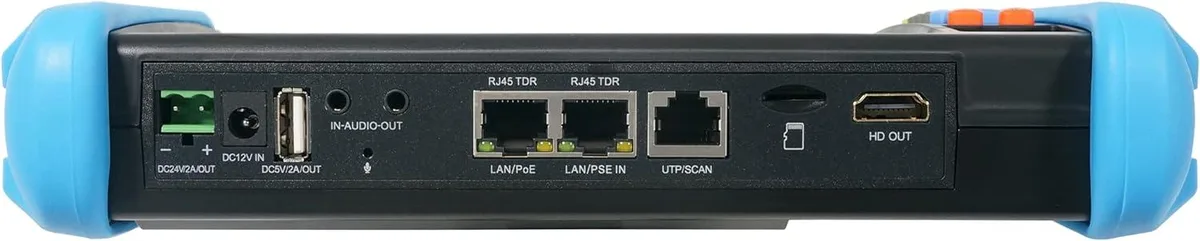

  • Powers cameras via DC12V 2A and 48V PoE outputs
  • One-key network scan detects and displays all IP cameras instantly
  • Supports 8MP TVI, AHD and CVI plus CVBS with PTZ control

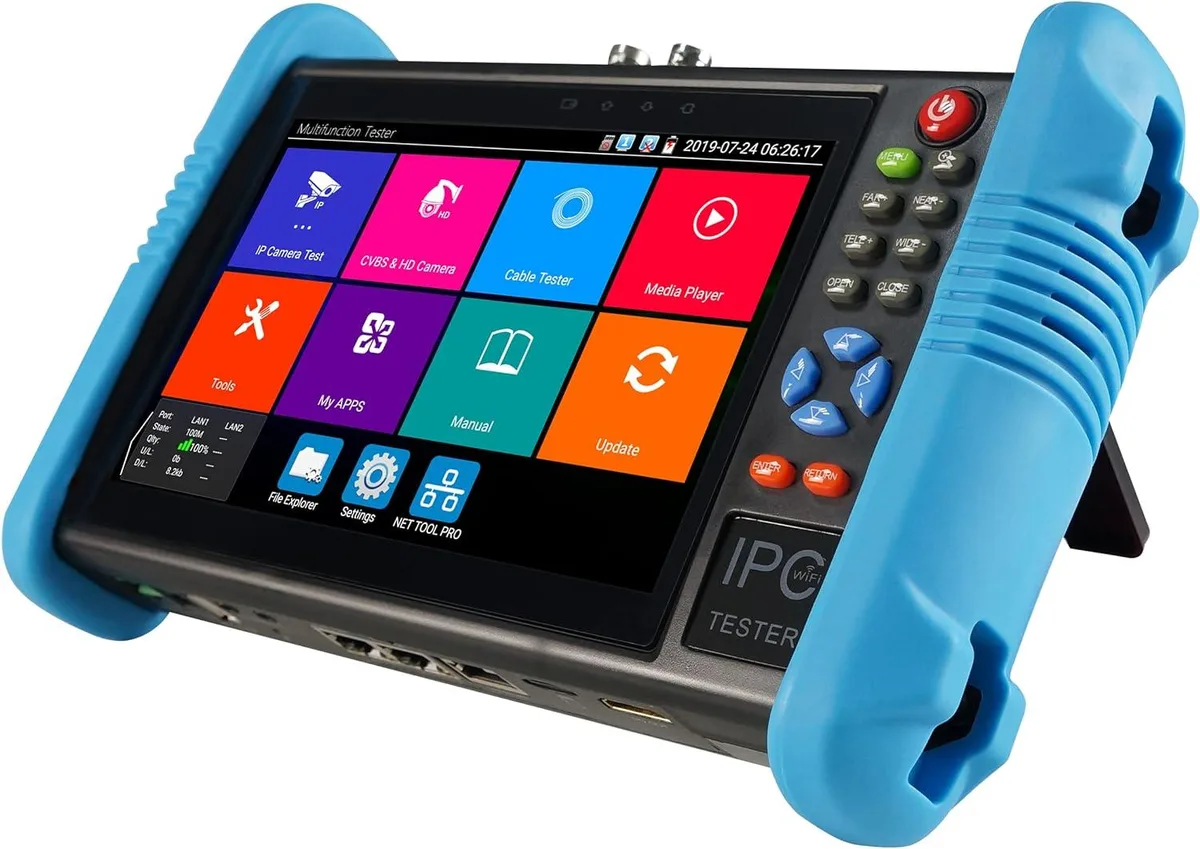

7 inch IPS touch CCTV tester

The BFKK 7 inch touch screen tester is a portable all-in-one device for installing and maintaining surveillance systems. It combines a 1280 by 800 IPS display with built-in tools for analogue and IP cameras. Technicians can power cameras directly from the unit and run network diagnostics on site. The package includes test applications for multiple camera brands.

Suits installers who need 4K IP

This tester handles H.265 and H.264 IP streams up to 4K, plus TVI, CVI, AHD and CVBS analogue signals up to 8 megapixels. Built-in Wi-Fi allows wireless camera preview and hotspot creation. PoE and 12 V DC outputs power cameras during setup. It does not support SDI cameras, so installers working with that interface need a different instrument.

4K H.265 IP and 8MP analogue camera compatibility

The decisive specification is the ability to display 4K IP video through mainstream decoding and to test 8MP TVI, CVI and AHD cameras at 3840 by 2160 resolution. Coaxial PTZ control, OSD menu access, 4x zoom, recording and playback are available for each analogue format. Rapid one-key network discovery and Ping testing complete the core feature set.

Highlights

  • 7 inch IPS touch screen displays 1280 by 800 resolution
  • Tests IP cameras up to 4K with H.265 and H.264 decoding
  • Powers cameras via DC12V 2A and 48V PoE outputs
  • One-key network scan detects and displays all IP cameras instantly
  • Supports 8MP TVI, AHD and CVI plus CVBS with PTZ control

Specifications

TypeOther

Questions about this item

Which resolution and camera-type combination should I pick for my existing analog system?

Choose the 8MP TVI, CVI or AHD modes for 3840 x 2160P at 12.5 or 15 fps, or CVBS for legacy PAL/NTSC signals.

What does the 4K IP-camera support actually deliver on the 7-inch screen?

The 1280 x 800 IPS panel displays a downscaled 4K H.265/H.264 mainstream stream with 4× digital zoom, record and playback.

What does the Gigabit Ethernet port cap at during a PoE camera test?

The 10/100/1000M link carries up to 48 V PoE output at 24 W max while running PING, port-flash and traffic-monitor tools.
