Black 6U 19-inch open-frame wall rack, adjustable 13-18 depth, steel powder coat

BFKK

BFKK 6U Wall Mount Open Frame Rack 19" Adjustable Depth 13-18" Black

SKU CH-12B1-6YPNF

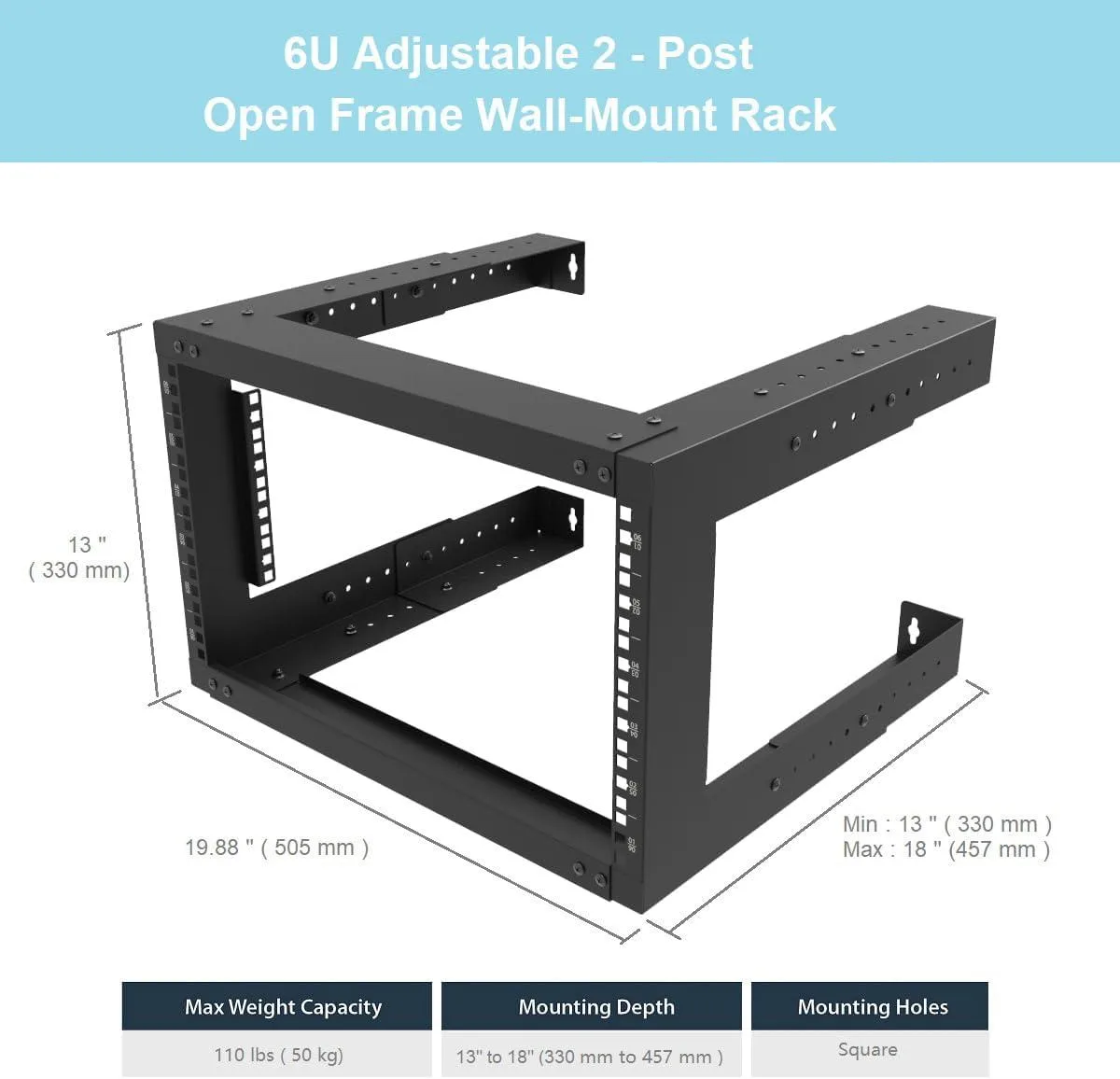

Holds 6U of 19-inch equipment at an adjustable 13-to-18-inch depth with 110-lb capacity

  • TypeRack Enclosure
  • Holds up to 110 pounds with cold-rolled steel construction

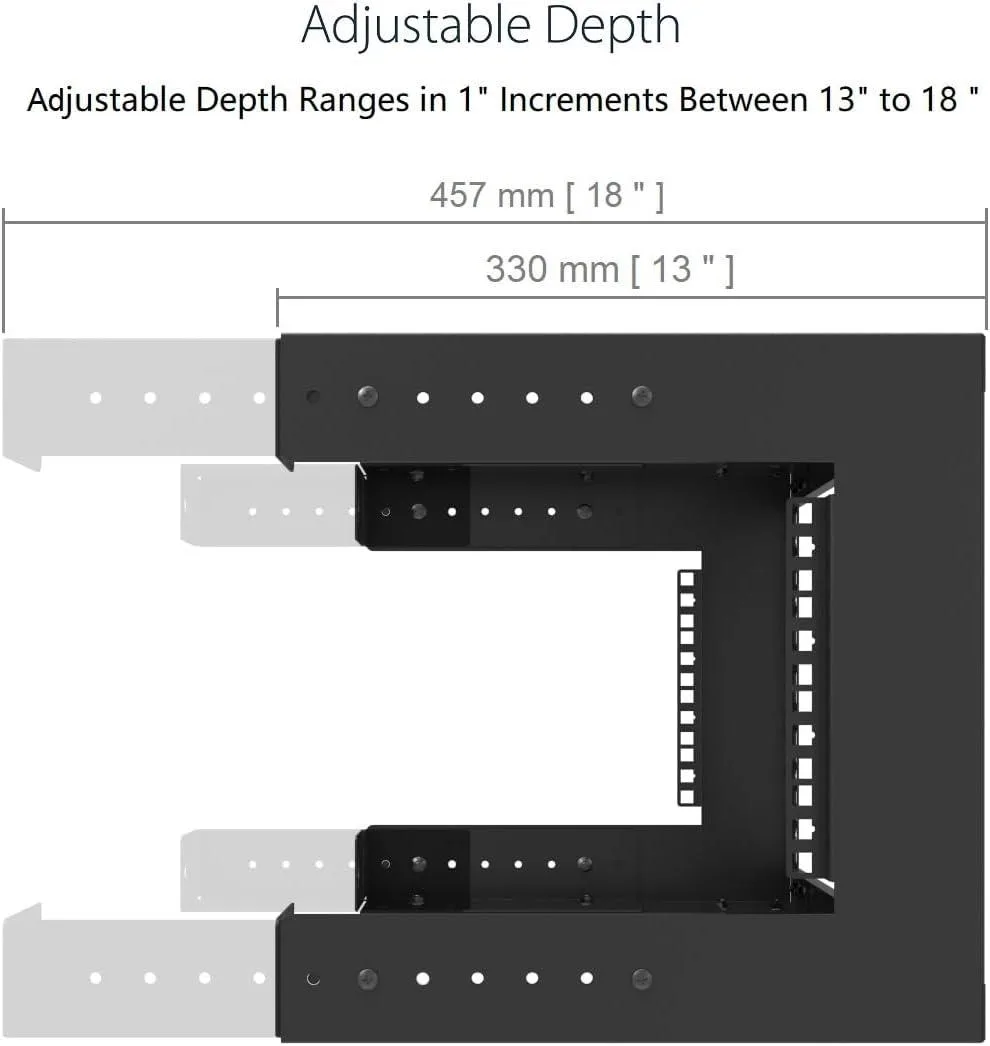

  • Adjustable 13 to 18 inch depth fits deeper equipment
  • EIA-310 compliant for standard 19 inch rack gear
  • Open frame allows easy access and optimal airflow
  • Includes 24 M6 screw sets plus mounting hardware

6U wall-mount open frame rack

This 6U wall-mount open frame rack accepts standard 19-inch equipment such as switches, patch panels and shelves. It is built from cold-rolled steel with a black powder-coat finish and includes 24 sets of M6 screws and cage nuts plus assembly and mounting hardware. The unit suits network rooms, home labs or office closets where floor space is limited.

Thermals noise and power

The open frame design leaves all sides exposed so air moves freely through installed gear without added fan noise. No power supply or active cooling is integrated, so the rack itself draws no electricity and adds no audible sound. Equipment simply relies on its own cooling while the frame stays passive.

Upgrade path and fit

The rack replaces a shelf, a desk stack or a larger floor cabinet when only a few units of gear need secure wall mounting. Depth adjusts from 13 to 18 inches to accommodate deeper devices, and the wall mounting holes sit 15.94 inches centre-to-centre for stud alignment. It is not suited for installations that require lockable doors, side panels or a higher load rating than 110 pounds.

Highlights

  • Holds up to 110 pounds with cold-rolled steel construction
  • Adjustable 13 to 18 inch depth fits deeper equipment
  • EIA-310 compliant for standard 19 inch rack gear
  • Open frame allows easy access and optimal airflow
  • Includes 24 M6 screw sets plus mounting hardware

Specifications

TypeRack Enclosure

Questions about this item

How do I mount the 6U rack to the wall, and what spacing mistake do installers make?

Mount the rack using the four holes on the back panel; they are spaced 15.94 inches center-to-center, so measure that exact distance on your studs or masonry anchors before drilling.

What hardware will I need to replace or replenish over time?

The rack ships with 24 sets of M6 screws and cage nuts plus assembly screws; keep spares because those are the only fasteners used to secure equipment and the rack itself.

At what load does the rack reach its rated limit during continuous use?

The cold-rolled steel frame is rated for a maximum of 110 pounds of equipment weight.
