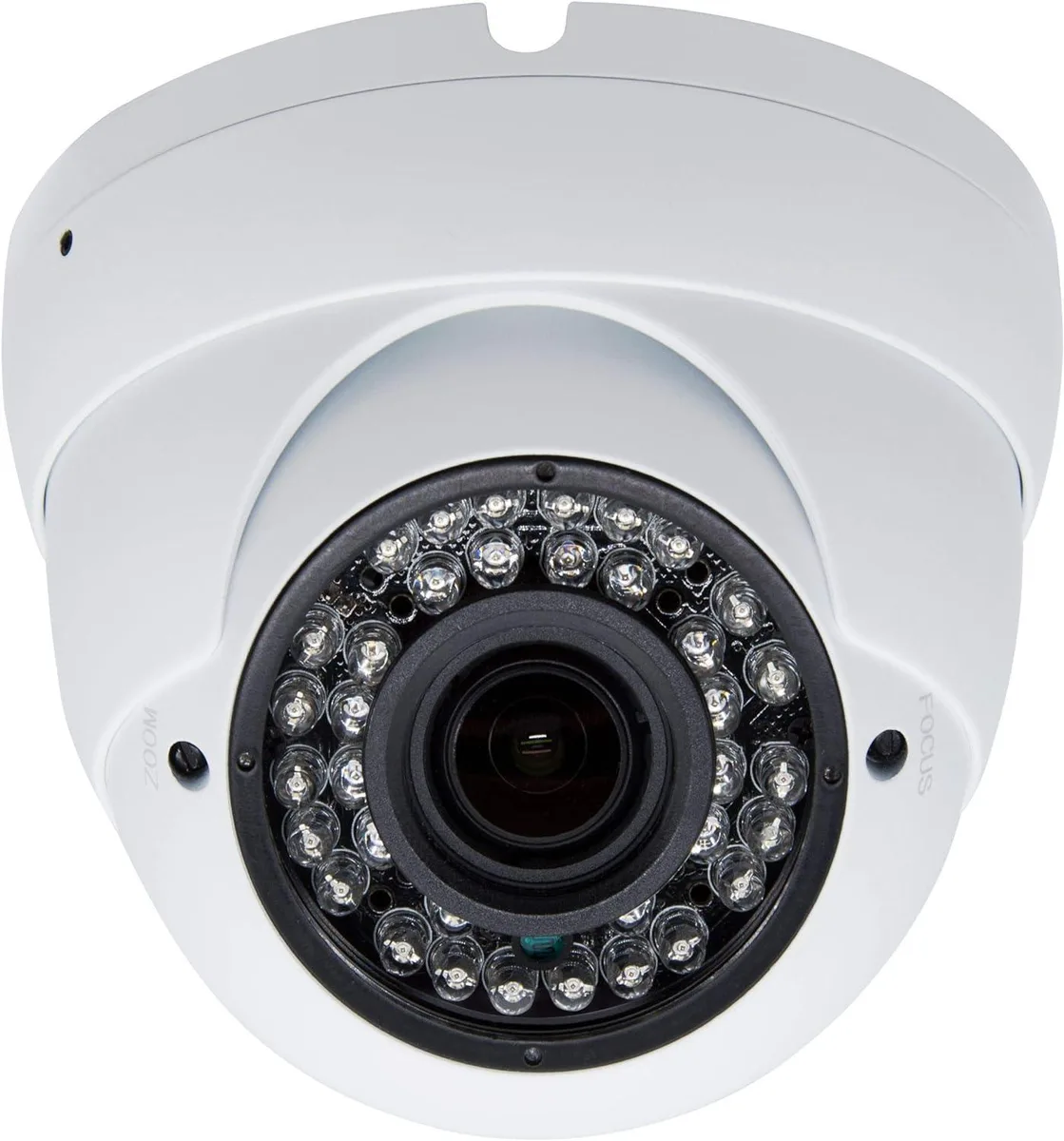

White dome security camera with varifocal lens and IR LEDs

BFKK

BFKK 5MP 4in1 Dome Camera 2.8-12mm Varifocal 98ft IR White

SKU CH-RSY0-EYTG7

A 5MP 4-in-1 dome camera with 2.8-12mm varifocal lens, 48 IR LEDs for 98ft night vision, and TVI/AHD/CVI/960H output modes

  • TypeOther
  • 5 MP resolution at 20 fps for sharp detail
  • Four video modes TVI AHD CVI 960H suit many DVRs
  • 8-12 mm varifocal lens adjusts field of view
  • 48 infrared LEDs reach 98 ft night vision
  • Waterproof housing works outdoors and indoors

Product Identity

The BFKK 5MP 4in1 Dome Camera is a hybrid CCTV device that outputs TVI, AHD, CVI and 960H CVBS signals from a single housing. It is aimed at installers and property owners who need one camera type compatible with multiple existing DVR platforms.

Installation Notes

A joystick cable on the pigtail lets the installer switch video modes to match the recorder; the default is 5MP TVI at 20fps, so a DVR limited to 960H requires a two-step change to 960H mode then 5MP@20fps. The varifocal 2.8-12mm lens must be focused manually at the camera, and the 48 infrared LEDs draw extra current that the power supply must support.

Interface Limits

The analogue 4-in-1 interface caps resolution at 5 megapixels and 20 frames per second, so high-motion detail above that rate is not possible. Coaxial cable runs are subject to signal attenuation not covered by the camera itself, and the 98ft IR range depends on scene reflectivity and ambient light. No network streaming or onboard recording is provided by this standard.

Highlights

  • 5 MP resolution at 20 fps for sharp detail
  • Four video modes TVI AHD CVI 960H suit many DVRs
  • 8-12 mm varifocal lens adjusts field of view
  • 48 infrared LEDs reach 98 ft night vision
  • Waterproof housing works outdoors and indoors

Specifications

TypeOther

Questions about this item

How do I verify the camera is outputting the correct 5MP@20fps video mode after connecting it to my DVR?

Use the OSD joystick on the cable to cycle through TVI, AHD, CVI and 960H modes until the DVR displays a 5MP@20fps picture; the default is 5MP TVI, so switch if your recorder only supports 960H first.

What accessories are included and what must I source separately for installation?

The camera ships with the varifocal dome unit, 48 IR LEDs built-in and an OSD joystick cable; you must provide a compatible DVR, power supply, coaxial cable and mounting hardware.

Which video output mode should I select for a recorder that only handles 960H resolution?

Set the joystick to 960H mode first, then enter the camera OSD menu and choose the 960H video output option so the signal matches the DVR capability.
