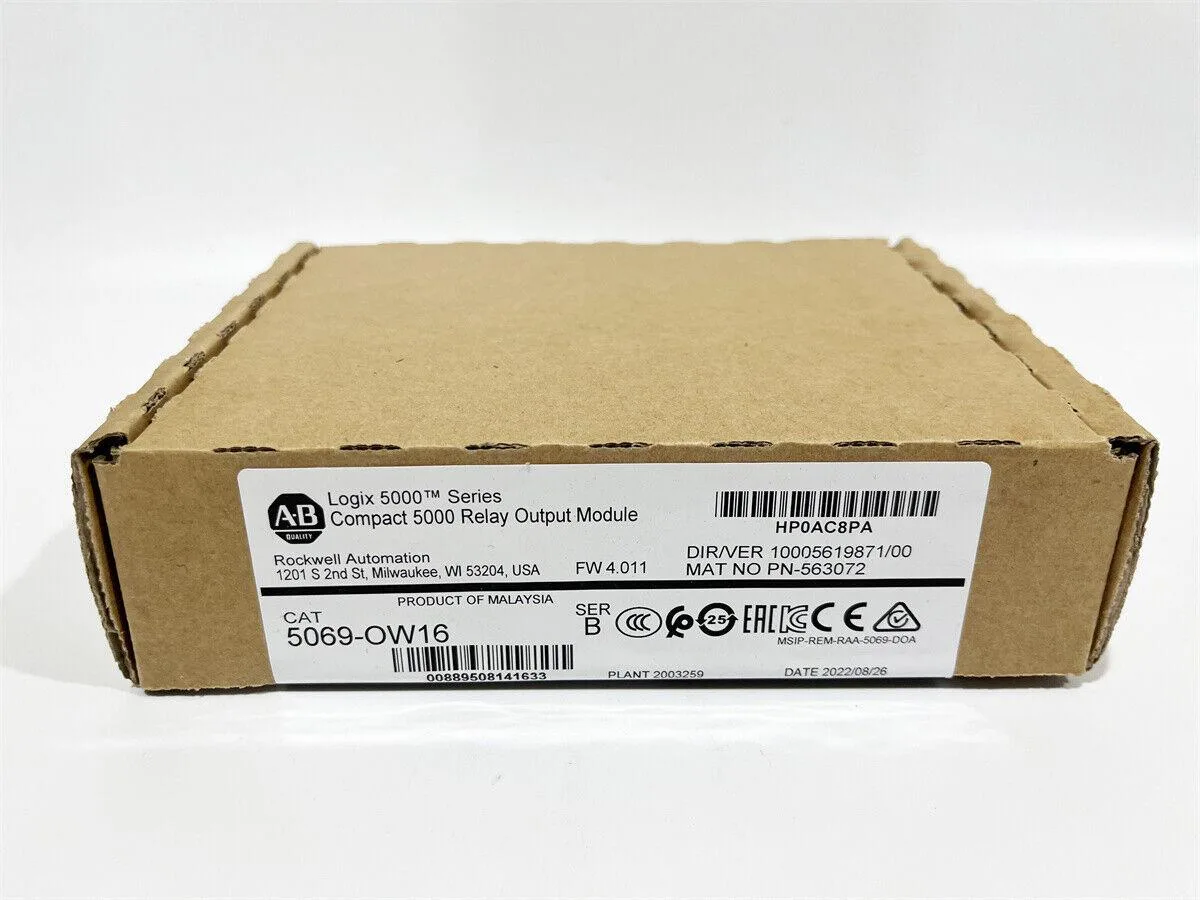

Allen-Bradley Compact 5000 relay output module in sealed packaging

BFKK

BFKK 5069-OW16 Compact 5000 Relay Output Module power adapter

SKU CH-PPBT-C9SYR

Compact 5000 relay output module with 16 normally open outputs in two groups of eight, switching at .3 Hz with 8 amperes per group and 16 amperes per module across 5–125 V DC or 5–264 V AC ranges

  • 16 relay outputs in two groups of eight
  • Operates from 5 to 125 volts DC and 5 to 264 volts AC
  • 8 amperes per group and 16 amperes total module current
  • Switching frequency of 0.3 Hz at rated load
  • Designed for CompactLogix 5380 and Compact GuardLogix 5380 controllers

Compact 5000 Relay Output Module

The Allen-Bradley 5069-OW16 is a compact 5000 relay output module designed for industrial automation systems. It provides 16 normally open outputs organized into two groups of eight for use with CompactLogix 5380 and Compact GuardLogix 5380 controllers.

Sustained switching performance

The module operates at a switching frequency of 0.3 Hz at rated load, allowing one operation every three seconds under continuous use. Each group handles up to 8 amperes while the full module supports 16 amperes across voltage ranges of 5 to 125 volts DC and 5 to 264 volts AC.

Migration from older I/O

This 5069 series module replaces legacy distributed I/O when upgrading to CompactLogix 5380 platforms. The jump is worth it when you need local or distributed operation with modern controllers and higher per-group current capacity than earlier compact families.

Highlights

  • 16 relay outputs in two groups of eight
  • Operates from 5 to 125 volts DC and 5 to 264 volts AC
  • 8 amperes per group and 16 amperes total module current
  • Switching frequency of 0.3 Hz at rated load
  • Designed for CompactLogix 5380 and Compact GuardLogix 5380 controllers

Specifications

No published specifications for this item yet.

Questions about this item

How much heat or power draw should I expect when the 5069-OW16 relay output module runs continuously at its rated load?

The 5069-OW16 module draws power from the Compact 5000 backplane rather than a separate supply. Continuous operation at 16 amperes per module with a switching frequency of .3 Hz produces minimal additional heat inside the chassis, and no external fan or heatsink is required.

Which CompactLogix controller and backplane do I need already installed for this 5069-OW16 module to function?

The 5069-OW16 is designed for CompactLogix 5380 and Compact GuardLogix 5380 controllers mounted on a Compact 5000 I/O backplane. It can also operate as distributed I/O with ControlLogix 5380 systems when paired with the appropriate 5000-series adapter.

Will the 5069-OW16 module work alongside my existing 5069-series I/O modules on the same backplane?

Yes, the 5069-OW16 shares the same Compact 5000 form factor and backplane connector as other 5069-series modules, so it installs directly beside them without adapters. Each module draws its own backplane current, so verify the total stays within the power supply rating.
